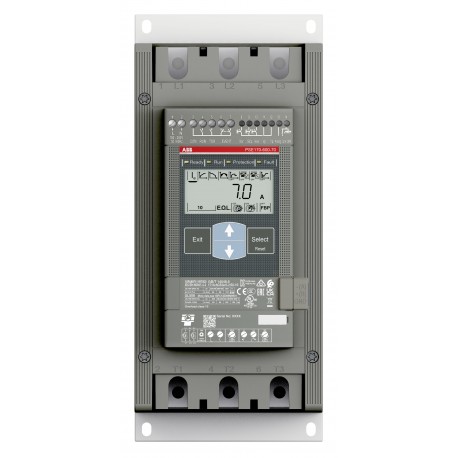

1SFA897111R7000 ABB Soft Starter 230V/40kW, 400V/75kW, 500V/90kW, 143A
1SFA897111R7000
897111
ABB
1 Pcs.
Automation > Soft starter
starters PSE
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An ABB soft starter provides dependable solid-state motor starting control, reducing mechanical stress and electrical disturbances in industrial drive configurations. These devices manage the voltage applied to the motor windings, ensuring controlled acceleration profiles for demanding applications.
Specific pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85371091
- Data Sheet, Technical Information: 1SFC132012C0201
- Instructions and Manuals: 1SFC132427M0201
- Instructions and Manuals (Part 2): 1SFC132057M0201
- Instructions and Manuals (Part 3): 1SFC132060M0201
- CAD Dimensional Drawing: 2CDC001079B0201
- EPLAN Data: 9AAC170220_EPLAN
- Wiring Diagram: N/A
- Product Net Width: 130 mm
- Product Net Height: 295 mm
- Product Net Depth / Length: 220 mm
- Product Net Weight: 4.4 kg
- Rated Operational Voltage: 208 ... 600 V AC
- Rated Control Supply Voltage (U s ): 100 ... 250 V AC
- Rated Control Circuit Voltage (U c ): 24 V DC
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85371091 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SFC132012C0201 |
| Instructions and Manuals | 1SFC132427M0201 |
| Instructions and Manuals (Part 2) | 1SFC132057M0201 |
| Instructions and Manuals (Part 3) | 1SFC132060M0201 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| EPLAN Data | 9AAC170220_EPLAN |
| Wiring Diagram | N/A |
| Dimensions | |
| Product Net Width | 130 mm |
| Product Net Height | 295 mm |
| Product Net Depth / Length | 220 mm |
| Product Net Weight | 4.4 kg |
| Technical | |
| Rated Operational Voltage | 208 ... 600 V AC |
| Rated Control Supply Voltage (Us) | 100 ... 250 V AC |
| Rated Control Circuit Voltage (Uc) | 24 V DC |
| Rated Frequency (f) | 50/60 Hz |
| Main Circuit 50 / 60 Hz | |
| Rated Operational Power - In-Line Connection (Pe) | (230 V) 45 kW |
| (400 V) 90 kW | |
| (500 V) 110 kW | |
| Rated Operational Current - In-Line Connection (Ie) | 171 A |
| Service Factor Percentage | 100 % |
| Overload Protection | Build-in electronic overload protection |
| Integrated Electronic Overload | Yes |
| Starting Capacity at Maximum Rated Current Ie | 4xIe for 10s |
| Ramp Time | 0 ... 30 second [unit of time] |
| 1 ... 30 second [unit of time] | |
| Initial Voltage During Start | 30 ... 70 % |
| Step Down Voltage Special Ramp | No % |
| Current Limit Function | 1.5 ... 7xIe |
| Switch for Inside Delta Connection | No |
| Run Signal Relay | Yes |
| By-pass Signal Relay | Yes |
| Fault Signal Relay | Yes |
| Overload Signal Relay | Yes |
| Analog Outputs | 4…20 mA |
| Signal Indication Completed Start Ramp (LED) | Green |
| Signal Indication Ready to Start/Standby ON (LED) | Green |
| Signal Indication Running R (LED) | Green |
| Signal Indication Ramping Up/Down (LED) | Green |
| Signal Indication Protection (LED) | Yellow |
| Signal Indication Fault (LED) | Red |
| Number of Starts Per Hour at 3.5*Ie for 7 sec. 50% ON Time 50% OFF Time | 10 |
| Communication | Modbus-RTU |
| Degree of Protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00 |
| Terminal Type | Main Circuit: Bars |
| Connecting Capacity Main Circuit | Hole Diameter 8.5 mm |
| Rigid 1/2 x 2.5 ... 70 mm² | |
| Width and Thickness 17.5x5 mm | |
| Connecting Capacity Control Circuit | Rigid 1 x 2.5 mm² |
| Rigid 2 x 1.5 mm² | |
| Connecting Capacity Supply Circuit | Rigid 1 x 2.5 |
| Tightening Torque | Control Circuit 0.5 N·m |
| Main Circuit 18 N·m | |
| Supply Circuit 0.5 N·m | |
| Product Main Type | PSE170 |
| Function | Soft start with torque control |
| Soft start with voltage ramp | |
| Soft stop with torque control | |
| Soft stop with voltage ramp | |
| Kick start | |
| Sequence start | |
| Current limit | |
| Start reverse (external contactors) | |
| Automatic restart | |
| Event log | |
| Protection Function | Electronic overload protection, EOL; Locked rotor protection; Current underload protection |
| Technical UL/CSA | |
| Horsepower Rating UL/CSA | (200 ... 208 V AC) Three Phase 60 Hp |
| (220 ... 240 V AC) Three Phase 60 Hp | |
| (440 ... 480 V AC) Three Phase 125 Hp | |
| (550 ... 600 V AC) Three Phase 150 Hp | |
| Maximum Operating Voltage UL/CSA | Main Circuit 600 V |
| Tightening Torque UL/CSA | Control Circuit 4.4 in·lb |
| Main Circuit 159.3 | |
| Supply Circuit 4.4 in·lb | |
| Environmental | |
| Ambient Air Temperature | Operation -25 ... +60 °C |
| Storage -40 ... +70 °C | |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2022-006481 |
| RoHS Declaration | 2CMT2022-006500 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006524 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| CQC Certificate | CQC2011010304468089 |
| Declaration of Conformity - CCC | 2020980304001545 |
| Declaration of Conformity - CE | 2CMT2015-005447 |
| DNV Certificate | 1SFC132383M0001 TAE0000342 |
| Container Information | |
| Package Level 1 Width | 203 mm |
| Package Level 1 Depth / Length | 282 mm |
| Package Level 1 Height | 363 mm |
| Package Level 1 Gross Weight | 5.4 kg |
| Package Level 1 EAN | 7320500400692 |
| Package Level 1 Units | box 1 piece |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 7 | EC000640 - Soft starter |
| ETIM 8 | EC000640 - Soft starter |
| ETIM 9 | EC000640 - Soft starter |
| eClass | V11.0 : 27370907 |
| UNSPSC | 39121521 |
| IDEA Granular Category Code (IGCC) | 4740 >> Soft starter |
