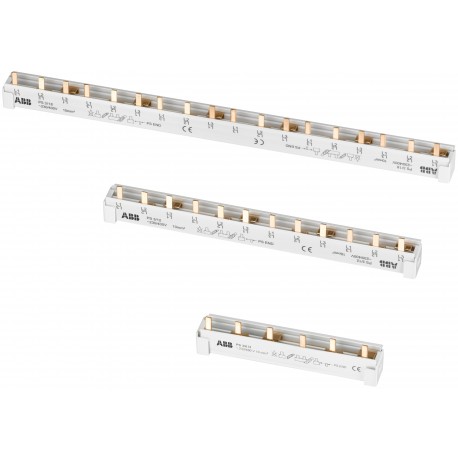

2CDL240101R1012 ABB PS4/12 Busbar
2CDL240101R1012
240101
ABB
1 Pcs.
Automation > Phase busbar
Accessories range compact (DESTO)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Manufactured by ABB, the 2CDL240101R1012 busbar distributes 4-phase power across modular circuit protection devices in electrical enclosures. Multi-pole busbar configurations optimize internal wiring layouts by providing a secure, low-resistance conductive path for complex distribution setups. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Suitable For: S200
- Suitable for Product Class: 4-pole devices (e.g.: S204 or F204)
- Pitch: 17.5
- Number of Poles: 12P
- Number of Phases: 4-phase
- Number of Mountable Devices: 3
- Number of Terminals (N term ): 12
- Accessory Type: Busbar
- Connection Type: Pin
- Rated Cross-Section: 10 mm²
- Rated Operational Voltage: 230 / 400 V AC
- Rated Short-time Withstand Current Low Voltage (I cw ): 25 kA
- Rated Uninterrupted Current (I u ): 63 A
- Rated Frequency (f): 50 / 60 Hz
- Overvoltage Category: III
- RAL Number: RAL 7035 - Light Grey
More info
▲| Technical | |
|---|---|
| Suitable For | S200 |
| F200 | |
| DDA200 | |
| Suitable for Product Class | 4-pole devices (e.g.: S204 or F204) |
| Pitch | 17.5 |
| Number of Poles | 12P |
| Number of Phases | 4-phase |
| Number of Mountable Devices | 3 |
| Number of Terminals (Nterm) | 12 |
| Accessory Type | Busbar |
| Connection Type | Pin |
| Rated Cross-Section | 10 mm² |
| Electrical | |
| Rated Operational Voltage | 230 / 400 V AC |
| Maximum 690 V | |
| Rated Short-time Withstand Current Low Voltage (Icw) | 25 kA |
| Rated Uninterrupted Current (Iu) | 63 A |
| Rated Frequency (f) | 50 / 60 Hz |
| DC | |
| Overvoltage Category | III |
| Design | |
| RAL Number | RAL 7035 - Light Grey |
| Color | grey |
| Material Compliance | |
| RoHS Declaration | 9AKK108468A1264 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20230517 |
| REACH Declaration | 9AKK107492A1906 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20251028 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| SCIP | 09997593-618b-4cb9-b884-ec312eeec835 Germany |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Business |
| Environmental | |
| Pollution Degree | 2 |
| Environmental Information | DIN EN 60068 |
| Dimensions | |
| Width in Number of Modular Spacings | 12.0 |
| Product Net Width | 19.3 mm |
| Product Net Height | 30.5 mm |
| Product Net Depth / Length | 212 mm |
| Product Net Weight | 0.105 kg |
| Ordering | |
| Package Level 1 Units | carton 30 piece |
| Package Level 1 Gross Weight | 3.31 kg |
| E-Number (Norway) | 1665940 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 9AKK108469A0841 |
| Declaration of Conformity - UKCA | 9AKK108469A0914 |
| Installation | |
| Instructions and Manuals | 2CSC400002D0208 |
| Mounting Position | any |
| Popular Downloads | |
| Data Sheet, Technical Information | 9AKK106930A8017 |
| External Classifications and Standards | |
| ETIM 9 | EC000215 - Phase busbar |
| ETIM 10 | EC000215 - Phase busbar |
| UNSPSC | 39121117 |
| eClass | V11.0 : 27371306 |
| IDEA Granular Category Code (IGCC) | 4378 >> Phase busbar |
| Object Classification Code | W |
| Standards | IEC/EN 60947-1 |
