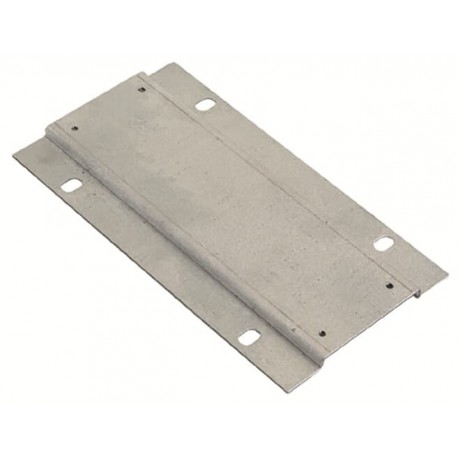

ABB 1SFN096100R1001 1SFN096100R1001 ABB PR750-2 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SFN096100R1001 ABB PR750-2

1SFN096100R1001

096100

ABB

1 Pcs.

PR750-2 PR750-2 adapter plate

Automation > Accessories/spare parts for low-voltage switch technology
Contactors and overload relays

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An adapter plate from ABB, bearing model 1SFN096100R1001 (PR750-2), acts as a structural interface to seamlessly mount and align heavy-duty electrical switching devices within control gear assemblies. These mechanical adapters ensure proper spacing and mechanical stability for high-current contactor applications. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85389099
  • Data Sheet, Technical Information: 1SBC100214C0202
  • Instructions and Manuals: N/A
  • CAD Dimensional Drawing: 2CDC001079B0201
  • Product Net Width: 255 mm
  • Product Net Depth / Length: 11.5 mm
  • Product Net Height: 283 mm
  • Product Net Weight: 1.1 kg
  • Terminal Type: Screw Terminals
  • Suitable For: AF580
  • Product Name: Adapter Plate
  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • REACH Declaration: 2CMT2021-006202
  • RoHS Declaration: 2CMT2021-006277
  • Toxic Substances Control Act - TSCA: 2CMT2023-006525

More info

▲
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85389099
Popular Downloads
Data Sheet, Technical Information1SBC100214C0202
Instructions and ManualsN/A
CAD Dimensional Drawing2CDC001079B0201
Dimensions
Product Net Width255 mm
Product Net Depth / Length11.5 mm
Product Net Height283 mm
Product Net Weight1.1 kg
Technical
Terminal TypeScrew Terminals
Suitable ForAF580
AF750
Product NameAdapter Plate
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration2CMT2021-006202
RoHS Declaration2CMT2021-006277
Toxic Substances Control Act - TSCA2CMT2023-006525
WEEE B2C / B2BBusiness To Business
WEEE CategoryProduct Not in WEEE Scope
Certificates and Declarations
cUL Certificate20120925-E36588
Declaration of Conformity - CE2CMT005309
Declaration of Conformity - UKCA2CMT2020-006120
Container Information
Package Level 1 Unitsbag 1 piece
Package Level 1 Width255 mm
Package Level 1 Depth / Length283 mm
Package Level 1 Height11.5 mm
Package Level 1 Gross Weight1.2 kg
Package Level 1 EAN7320500222645
External Classifications and Standards
Object Classification CodeU
ETIM 7EC002498 - Accessories for low-voltage switch technology
ETIM 8EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 9EC002498 - Accessories/spare parts for low-voltage switch technology
UNSPSC39120000
E-Number (Finland)3709311

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
