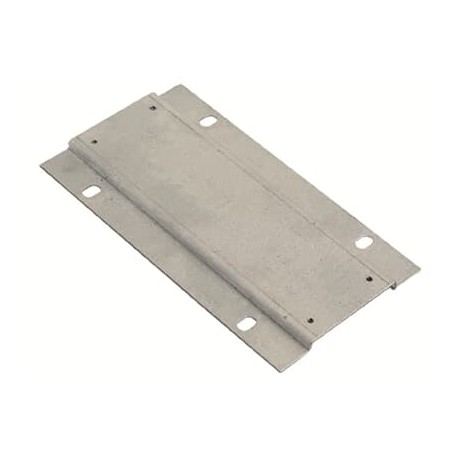

1SFN095700R1000 ABB PR460-1
1SFN095700R1000
095700
ABB
1 Pcs.
Automation > Accessories/spare parts for low-voltage switch technology
Contactors and overload relays
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
1SFN095700R1000 ABB PR460-1 acts as an adapter plate accessory used in electrical switchgear to mount protective trip units and electronic controllers securely onto compatible circuit breakers. Plates of this nature provide precise mechanical alignment and secure fastening points for control gear retrofits or installations. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Data Sheet, Technical Information: 1SBC100214C0202
- Instructions and Manuals: N/A
- CAD Dimensional Drawing: 2CDC001079B0201
- Product Net Width: 198 mm
- Product Net Depth / Length: 11.5 mm
- Product Net Height: 278 mm
- Product Net Weight: 0.9 kg
- Terminal Type: Screw Terminals
- Suitable For: AF400
- Product Name: Adapter Plate
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 2CMT2021-006202
- RoHS Declaration: 2CMT2021-006277
- WEEE B2C / B2B: Business To Business
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SBC100214C0202 |
| Instructions and Manuals | N/A |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Dimensions | |
| Product Net Width | 198 mm |
| Product Net Depth / Length | 11.5 mm |
| Product Net Height | 278 mm |
| Product Net Weight | 0.9 kg |
| Technical | |
| Terminal Type | Screw Terminals |
| Suitable For | AF400 |
| AF460 | |
| AF580 | |
| Product Name | Adapter Plate |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2021-006202 |
| RoHS Declaration | 2CMT2021-006277 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | Product Not in WEEE Scope |
| Certificates and Declarations | |
| cUL Certificate | 20120925-E36588 |
| Declaration of Conformity - CE | 2CMT005309 |
| Declaration of Conformity - UKCA | 2CMT2020-006120 |
| Container Information | |
| Package Level 1 Units | bag 1 piece |
| Package Level 1 Width | 198 mm |
| Package Level 1 Depth / Length | 278 mm |
| Package Level 1 Height | 11.5 mm |
| Package Level 1 Gross Weight | 1 kg |
| Package Level 1 EAN | 7320500222423 |
| External Classifications and Standards | |
| Object Classification Code | U |
| ETIM 7 | EC002498 - Accessories for low-voltage switch technology |
| ETIM 8 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| ETIM 9 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| UNSPSC | 39122221 |
| IDEA Granular Category Code (IGCC) | 5219 >> Switch part or accessory |
| E-Number (Finland) | 3709255 |
| E-Number (Norway) | 3228954 |
| E-Number (Sweden) | 3228954 |
