View larger
Images are for illustrative purposes only. Please refer to data sheet for details

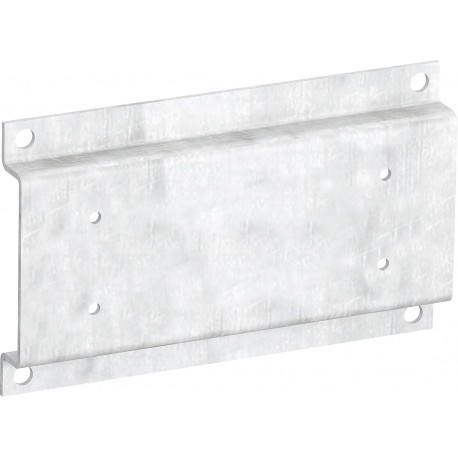

1SFN094200R1000 ABB PR146-1 Adapter Plate
1SFN094200R1000
094200
ABB
1 Pcs.
PR146-1 Adapter Plate
PR146-1 ADAPTER PLATE ASSEMBLY
Automation > Accessories/spare parts for low-voltage switch technology
AF contactors 100A to 370A
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SBC100214C0202 |
| Instructions and Manuals | N/A |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Dimensions | |
| Product Net Width | 150 mm |
| Product Net Depth / Length | 15 mm |
| Product Net Height | 90 mm |
| Product Net Weight | 0.3 kg |
| Technical | |
| Terminal Type | Screw Terminals |
| Suitable For | AF116 |
| AF140 | |
| AF146 | |
| A95 | |
| A110 | |
| AF95 | |
| AF110 | |
| Suitable for Product Class | Block Contactors |
| Product Name | Adapter Plate |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2021-006202 |
| RoHS Declaration | 2CMT2021-006277 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | Product Not in WEEE Scope |
| Certificates and Declarations | |
| cUL Certificate | 20120925-E36588 |
| Declaration of Conformity - CE | 2CMT004895 |
| Declaration of Conformity - UKCA | 2CMT2020-006120 |
| Container Information | |
| Package Level 1 Units | bag 1 piece |
| Package Level 1 Width | 90 mm |
| Package Level 1 Depth / Length | 150 mm |
| Package Level 1 Height | 15 mm |
| Package Level 1 Gross Weight | 0.35 kg |
| Package Level 1 EAN | 7320500481233 |
| External Classifications and Standards | |
| Object Classification Code | U |
| ETIM 7 | EC002498 - Accessories for low-voltage switch technology |
| ETIM 8 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| ETIM 9 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| UNSPSC | 39122221 |
| IDEA Granular Category Code (IGCC) | 5219 >> Switch part or accessory |
| E-Number (Finland) | 3706567 |
| E-Number (Norway) | 3210196 |
| E-Number (Sweden) | 3210196 |
