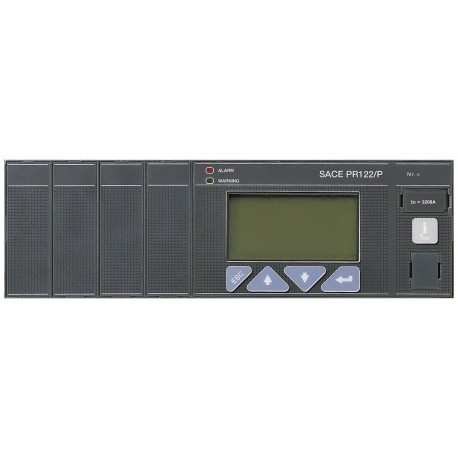

1SDA058198R1 ABB PR122/P-LSIG E1-E6
1SDA058198R1
058198
ABB
1 Pcs.
Automation > Shunt release (for power circuit breaker)
Emax accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An ABB PR122/P-LSIG E1-E6 electronic trip unit (1SDA058198R1) is an advanced protection accessory installed within air circuit breakers to monitor polyphase electrical systems and govern breaking operations. These intelligent releases provide programmable parameters for overload, short-circuit, and ground-fault protection in heavy industrial switchgear.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): Document availability on demand
- EAN: 8015644604844
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389091
- Product Net Weight: 1 kg
- Package Level 1 Units: 1 piece
- Package Level 1 Gross Weight: 1.5 kg
- Package Level 1 EAN: 8015644604844
- Product Main Type: Accessories for Emax
- Product Name: Accessory
- Product Type: Accessory
- Suitable For: E1, E2, E3, E4, E6
- Suitable for Product Class: SACE Emax
More info
▲| Material Compliance | |
|---|---|
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | Document availability on demand |
| Ordering | |
| EAN | 8015644604844 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389091 |
| Dimensions | |
| Product Net Weight | 1 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Gross Weight | 1.5 kg |
| Package Level 1 EAN | 8015644604844 |
| Additional Information | |
| Product Main Type | Accessories for Emax |
| Product Name | Accessory |
| Product Type | Accessory |
| Suitable For | E1, E2, E3, E4, E6 |
| Suitable for Product Class | SACE Emax |
| Technical | |
| Configuration Type | Loose or configurable |
| Standards | IEC |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC200006D0209 |
| Declaration of Conformity - CE | 1SDL000165R0013 |
| 1SDL000165R0014 | |
| 1SDL000165R0015 | |
| 1SDL000165R0016 | |
| 1SDL000165R0017 | |
| Instructions and Manuals | 1SDH000460R0001 |
| 1SDH000460R0002 | |
| 1SDC200006D0209 | |
| External Classifications and Standards | |
| Object Classification Code | Q |
| UNSPSC | 39120000 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
