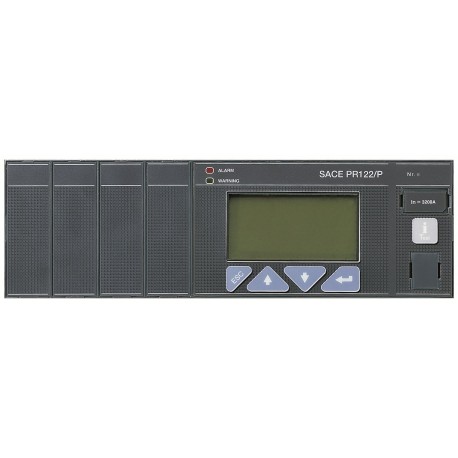

1SDA058196R1 ABB PR122/P-LI E1-E6
1SDA058196R1
058196
ABB
1 Pcs.
Automation > Shunt release (for power circuit breaker)
Emax accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An 1SDA058196R1 ABB PR122/P-LI E1-E6 functions as an advanced microprocessor-based protection trip unit designed for heavy-duty air circuit breakers. These sophisticated units manage complex power distribution parameters, offering reliable overload and instantaneous fault protection for large electrical plants. Pricing, availability, and lead times are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): Document availability on demand
- EAN: 8015644604820
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389091
- Product Net Weight: 1 kg
- Package Level 1 Units: 1 piece
- Package Level 1 Gross Weight: 1.5 kg
- Package Level 1 EAN: 8015644604820
- Product Main Type: Accessories for Emax
- Product Name: Accessory
- Product Type: Accessory
- Suitable For: E1, E2, E3, E4, E6
- Suitable for Product Class: SACE Emax
More info
▲| Material Compliance | |
|---|---|
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | Document availability on demand |
| Ordering | |
| EAN | 8015644604820 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389091 |
| Dimensions | |
| Product Net Weight | 1 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Gross Weight | 1.5 kg |
| Package Level 1 EAN | 8015644604820 |
| Additional Information | |
| Product Main Type | Accessories for Emax |
| Product Name | Accessory |
| Product Type | Accessory |
| Suitable For | E1, E2, E3, E4, E6 |
| Suitable for Product Class | SACE Emax |
| Technical | |
| Configuration Type | Loose or configurable |
| Standards | IEC |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC200006D0209 |
| Declaration of Conformity - CE | 1SDL000165R0013 |
| 1SDL000165R0014 | |
| 1SDL000165R0015 | |
| 1SDL000165R0016 | |
| 1SDL000165R0017 | |
| Instructions and Manuals | 1SDH000460R0001 |
| 1SDH000460R0002 | |
| 1SDC200006D0209 | |
| External Classifications and Standards | |
| Object Classification Code | Q |
| UNSPSC | 39120000 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
