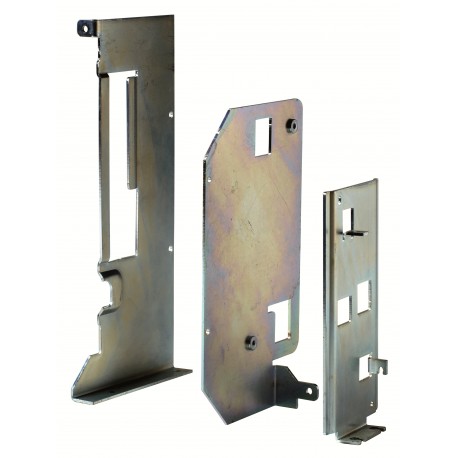

ABB 1SDA062129R1 1SDA062129R1 ABB PLATE MECH.INTER. T7-T7M-X1 WALL FIXED View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA062129R1 ABB PLATE MECH.INTER. T7-T7M-X1 WALL FIXED

1SDA062129R1

062129

ABB

1 Pcs.

PLATE MECH.INTER. T7-T7M-X1 WALL FIXED INTERLOCKING PLATE FOR F (BOTTOM PLATE)

Automation > Accessories/spare parts for low-voltage switch technology
Accessories T7-X1

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Abb 1SDA062129R1 plate mech.inter. T7-T7M-X1 wall fixed is an interlocking mounting plate designed to coordinate circuit breaker operations in wall-mounted configurations. Mechanical interlock plates prevent unwanted operational overlap between primary protective devices.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • REACH Declaration: 9AKK108466A1425
  • RoHS Declaration: 9AKK108466A1424
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • Toxic Substances Control Act - TSCA: 9AKK108467A8326
  • Environmental Information: 9AKK108467A6707
  • Order Code US and Canada: ZE1AUXM
  • EAN: 8015644646684
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85389099
  • Product Net Weight: 1 kg
  • Package Level 1 Units: 1 piece
  • Package Level 1 Width: 170 mm
  • Package Level 1 Height: 50 mm
  • Package Level 1 Depth / Length: 270 mm
  • Package Level 1 Gross Weight: 2 kg

More info

▲
ABB EcoSolutions
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
Environmental
Environmental Information9AKK108467A6707
Ordering
Order Code US and CanadaZE1AUXM
EAN8015644646684
Minimum Order Quantity1 piece
Customs Tariff Number85389099
Dimensions
Product Net Weight1 kg
Container Information
Package Level 1 Units1 piece
Package Level 1 Width170 mm
Package Level 1 Height50 mm
Package Level 1 Depth / Length270 mm
Package Level 1 Gross Weight2 kg
Package Level 1 EAN8015644646684
Additional Information
Product Main TypeAccessories for Tmax T
Product NameAccessory
Product TypeAccessory
Suitable ForT7, X1
Suitable for Product ClassSACE Emax
SACE Tmax T
Technical
Configuration TypeLoose or configurable
StandardsIEC
Certificates and Declarations
Data Sheet, Technical Information1SDC210015D0201
Declaration of Conformity - CERefer to the EU Declaration of the relative Circuit Breaker
Instructions and Manuals1SDC210015D0201
External Classifications and Standards
ETIM 9EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 10EC002498 - Accessories/spare parts for low-voltage switch technology
IDEA Granular Category Code (IGCC)5219 >> Switch part or accessory
Object Classification CodeQ
UNSPSC39122221
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27371390
