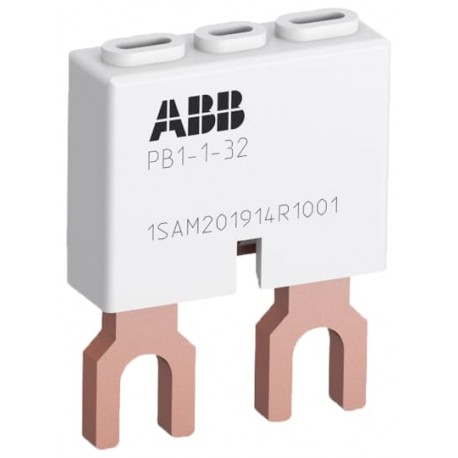

1SAM201914R1001 ABB PB1-1-32 Connecting Link
1SAM201914R1001
201914
ABB
1 Pcs.
Automation > Accessories/spare parts for low-voltage switch technology
Mx116 and Mx132
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Abb 1SAM201914R1001 PB1-1-32 connecting link is a specialized mechanical and electrical jumper used to join modular control gear components within motor protection assemblies. It simplifies wiring layouts and ensures consistent electrical performance across linked devices. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85369010
- Data Sheet, Technical Information: 1SBC100214C0202
- Instructions and Manuals: 2CDC131057M6801
- Instructions and Manuals (Part 3): 1SBC100214C0202
- CAD Dimensional Drawing: 2CDC001079B0201
- Product Net Width: 22 mm
- Product Net Height: 31 mm
- Product Net Depth / Length: 7 mm
- Product Net Weight: 0.006 kg
- Rated Operational Current (I e ): 32 A
- Standards: IEC/EN 60947-1
- Remarks: IEC only
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 1SAA963005-4502
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85369010 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SBC100214C0202 |
| Instructions and Manuals | 2CDC131057M6801 |
| Instructions and Manuals (Part 3) | 1SBC100214C0202 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Dimensions | |
| Product Net Width | 22 mm |
| Product Net Height | 31 mm |
| Product Net Depth / Length | 7 mm |
| Product Net Weight | 0.006 kg |
| Technical | |
| Rated Operational Current (Ie) | 32 A |
| Standards | IEC/EN 60947-1 |
| Remarks | IEC only |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SAA963005-4502 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006539 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SAD101100-3411 |
| Declaration of Conformity - UKCA | 1SAD201100-3411 |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 140 mm |
| Package Level 1 Depth / Length | 15 mm |
| Package Level 1 Height | 100 mm |
| Package Level 1 Gross Weight | 0.007 kg |
| Package Level 1 EAN | 4013614485244 |
| Package Level 2 Units | carton 10 piece |
| Package Level 2 Width | 235 mm |
| Package Level 2 Depth / Length | 350 mm |
| Package Level 2 Height | 170 mm |
| Package Level 2 Gross Weight | 0.065 kg |
| Package Level 2 EAN | 4013614485619 |
| External Classifications and Standards | |
| Object Classification Code | W |
| ETIM 9 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| ETIM 10 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| eClass | V11.0 : 27371392 |
| UNSPSC | 39122221 |
| IDEA Granular Category Code (IGCC) | 5219 >> Switch part or accessory |
