View larger
Images are for illustrative purposes only. Please refer to data sheet for details

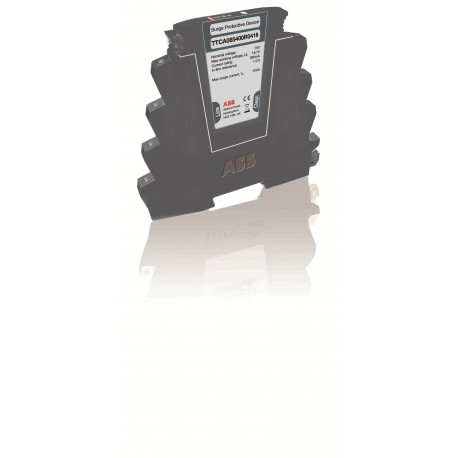

OVR SL06 7TCA085400R0360 ABB OVR SL06 Surge Protective Device
OVR SL06
7TCA085400R0360
ABB
1 Pcs.
OVR SL06 Surge Protective Device
Protec.sobret. OVRSL06
Automation > Surge protection device for data networks/MCR-technology
Other modular devices
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Technical | |
|---|---|
| Suitable For | To protect systems against transient overvoltages or surges from lightning and electrical switching events |
| Nominal AC Voltage of the System (Uo) | 6 V |
| Maximum Continuous Operating Voltage (Uc) | 7.79 V |
| Discharge Current | I (max, 8 / 20 µs) 10 kA |
| Number of Protected Poles | 3 |
| Connection Type | Screw Clamp |
| Serial Resistance | 1 Ω |
| Wire Stripping Length | 9.5 mm |
| Electrical | |
| Voltage Protection Level ( Up) | 16 V |
| Rated Current (In) | 750 mA |
| Rated Frequency (f) | 45 MHz |
| Material Compliance | |
| RoHS Declaration | 9AKK108466A5046 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| REACH Declaration | 9AKK108466A5047 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20230117 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Business |
| Environmental | |
| Ambient Air Temperature | Operation -40 ... +80 °C |
| Dimensions | |
| Product Net Width | 106.5 mm |
| Product Net Height | 104.6 mm |
| Product Net Depth / Length | 7 mm |
| Product Net Weight | 0.08 kg |
| Ordering | |
| Package Level 1 Units | 1 piece |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 7TKK001511 |
| Installation | |
| Instructions and Manuals | 9AKK106713A8726 |
| Popular Downloads | |
| Data Sheet, Technical Information | 9AKK106713A8155 |
| External Classifications and Standards | |
| ETIM 9 | EC000943 - Surge protection device for data networks/MCR-technology |
| ETIM 10 | EC000943 - Surge protection device for data networks/MCR-technology |
| Standards | IEC 61643-21 |
