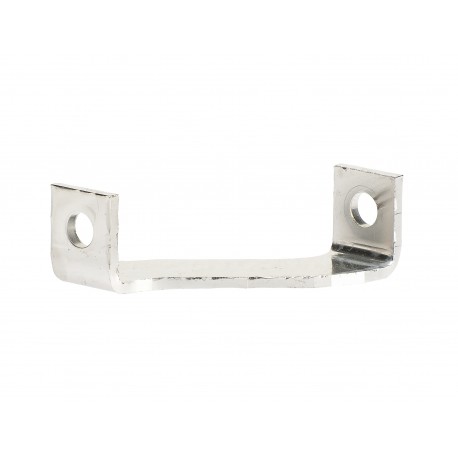

ABB 1SCA104647R1001 1SCA104647R1001 ABB OTZR2 Reversing bars View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SCA104647R1001 ABB OTZR2 Reversing bars

1SCA104647R1001

104647

ABB

1 Pcs.

OTZR2 Reversing bars OTZR2 Reverse Bridge Bar OTZR2 RESERSING BARS

Automation > Accessories/spare parts for low-voltage switch technology
Manual Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This ABB OTZR2 Reversing bars mechanical hardware component is utilized within motor control and switching setups to mechanically interlock or link multiple switches for coordinated operation. Such hardware ensures reliable synchronized movement across paired switching devices.

Relevant physical and classification details are provided below.

  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • REACH Declaration: 1SCC011021D0201
  • RoHS Declaration: 1SCC011020D0201
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Data Sheet, Technical Information: 1SCC301020C0201
  • Instructions and Manuals: 1SCC391002M0001
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85389099
  • Country or Territory of Origin: Finland
  • Product Net Width: 72 mm
  • Product Net Height: 25 mm
  • Product Net Depth / Length: 80 mm
  • Product Net Weight: 0.001 kg
  • Package Level 1 Units: 1 piece
  • Package Level 1 Width: 72 mm
  • Package Level 1 Depth / Length: 80 mm

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

More info

▲
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC011021D0201
RoHS Declaration1SCC011020D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Popular Downloads
Data Sheet, Technical Information1SCC301020C0201
Instructions and Manuals1SCC391002M0001
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85389099
Country or Territory of OriginFinland
Dimensions
Product Net Width72 mm
Product Net Height25 mm
Product Net Depth / Length80 mm
Product Net Weight0.001 kg
Container Information
Package Level 1 Units1 piece
Package Level 1 Width72 mm
Package Level 1 Depth / Length80 mm
Package Level 1 Height25 mm
Package Level 1 Gross Weight0.001 kg
Package Level 1 EAN6417019395678
Certificates and Declarations
External Classifications and Standards
Object Classification CodeN/A
ETIM 9EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 10EC002498 - Accessories/spare parts for low-voltage switch technology
UNSPSC39122221
IDEA Granular Category Code (IGCC)5219 >> Switch part or accessory
eClassV11.1 : 27371392
WEEE CategoryProduct Not in WEEE Scope
E-Number (Finland)3650354
