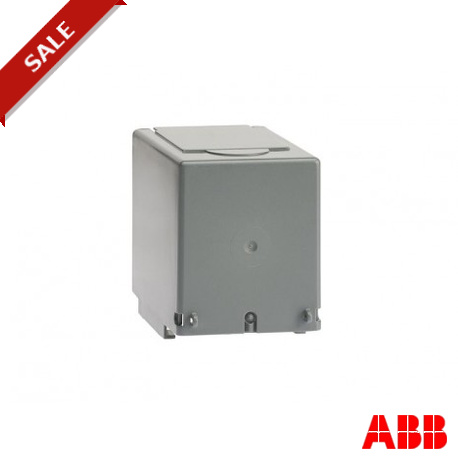

ABB OTS1600G1S OTS1600G1S 1SCA102667R1001 ABB OTS1600G1S Terminal shroud View larger
Images are for illustrative purposes only. Please refer to data sheet for details

OTS1600G1S 1SCA102667R1001 ABB OTS1600G1S Terminal shroud

OTS1600G1S

1SCA102667R1001

ABB

1 Pcs.

OTS1600G1S Terminal shroud

Automation > Accessories/spare parts for low-voltage switch technology
Accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Abb OTS1600G1S terminal shroud acts as a protective physical barrier for heavy-duty power distribution connections, preventing accidental finger contact and electrical flashover on high-amperage switchgear. Engineers install these insulating covers across switch disconnector terminals within industrial power panels to enhance operational safety and meet stringent compliance standards. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • RoHS Status: Planned to follow EU Directive 2002/95/EC August 18, 2005 and amendment after 2009 Q4
  • IIT Publishing Status: Level 0 - Information enabled
  • Order Multiple: 1 piece
  • Product Main Type: OTS1600
  • Product Name: Terminal shroud
  • Product Type: OTS
  • Special Functions: S
  • Suitable For: OT1600
  • Suitable for Product Class: Switch disconnectors
  • Data Sheet, Technical Information: 1SCC301020C0201
  • Product Net Width: 54 mm
  • Product Net Height: 120 mm
  • Product Net Depth: 107 mm
  • Product Net Weight: 0.117 kg
  • EAN: 6417019373294
  • Minimum Order Quantity: 1 piece

More info

▲

For OS/OSM1200…1250_N3_

Ordering

  • EAN:
    6417019373294
  • Minimum Order Quantity:
    1 piece
  • Customs Tariff Number:
    85389099

Dimensions

  • Product Net Width:
    54mm
  • Product Net Height:
    120mm
  • Product Net Depth:
    107mm
  • Product Net Weight:
    0.117kg

Container Information

  • Package Level 1 Units:
    1 piece
  • Package Level 1 Width:
    54 mm
  • Package Level 1 Height:
    120 mm
  • Package Level 1 Length:
    107 mm
  • Package Level 1 Gross Weight:
    0.13 kg
  • Package Level 1 EAN:
    6417019373294

Environmental

  • RoHS Status:
    Planned to follow EU Directive 2002/95/EC August 18, 2005 and amendment after 2009 Q4

Additional Information

  • IIT Publishing Status:
    Level 0 - Information enabled
  • Order Multiple:
    1 piece
  • Product Main Type:
    OTS1600
  • Product Name:
    Terminal shroud
  • Product Type:
    OTS
  • Special Functions:
    S
  • Suitable For:
    OT1600
  • Suitable for Product Class:
    Switch disconnectors

Certificates and Declarations (Document Number)

Classifications

  • ETIM 5:
    EC002498 - Accessories for low-voltage switch technology
  • Object Classification Code:
    N/A
