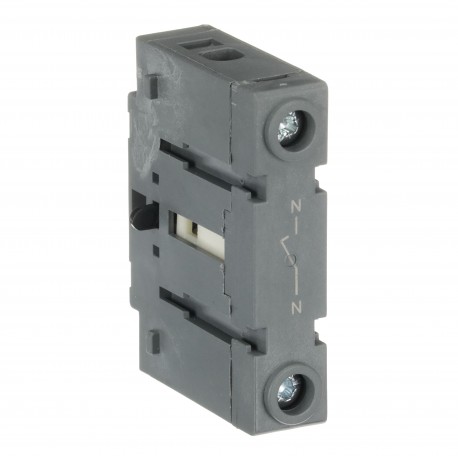

1SCA105716R1001 ABB OTPL40FD Fourth pole
1SCA105716R1001
105716
ABB
1 Pcs.
Automation > Accessories/spare parts for low-voltage switch technology
Accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
1SCA105716R1001 ABB OTPL40FD Fourth pole module attaches to standard three-pole load break switches, converting them into four-pole configurations for simultaneous neutral switching in electrical distribution circuits. This modular expansion allows panel builders to adapt disconnect switches to specific system grounding topologies.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 1SCC011021D0201
- RoHS Declaration: 1SCC011020D0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Data Sheet, Technical Information: 1SCC301020C0201
- Instructions and Manuals: 1SCC390076M0003
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Country or Territory of Origin: Finland
- Product Net Width: 13 mm
- Product Net Height: 50 mm
- Product Net Depth / Length: 40 mm
- Product Net Weight: 0.03 kg
- Package Level 1 Units: 1 piece
- Package Level 1 Width: 140 mm
- Package Level 1 Depth / Length: 90 mm
More info
▲| Material Compliance | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC301020C0201 |
| Instructions and Manuals | 1SCC390076M0003 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 13 mm |
| Product Net Height | 50 mm |
| Product Net Depth / Length | 40 mm |
| Product Net Weight | 0.03 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 140 mm |
| Package Level 1 Depth / Length | 90 mm |
| Package Level 1 Height | 30 mm |
| Package Level 1 Gross Weight | 0.04 kg |
| Package Level 1 EAN | 6417019396231 |
| Technical | |
| Special Functions | FD |
| Certificates and Declarations | |
| External Classifications and Standards | |
| Object Classification Code | N/A |
| ETIM 9 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| ETIM 10 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| UNSPSC | 39122221 |
| IDEA Granular Category Code (IGCC) | 5219 >> Switch part or accessory |
| eClass | V11.1 : 27371392 |
| WEEE Category | Product Not in WEEE Scope |
| E-Number (Finland) | 3659036 |
| E-Number (Norway) | 4363615 |
| E-Number (Sweden) | 3170962 |
