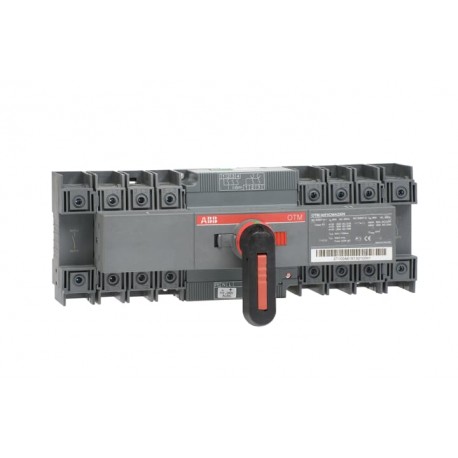

ABB 1SCA120100R1001 1SCA120100R1001 ABB OTM80F4CMA230V MOTORIZED C/O SWITCH View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SCA120100R1001 ABB OTM80F4CMA230V MOTORIZED C/O SWITCH

1SCA120100R1001

120100

ABB

1 Pcs.

OTM80F4CMA230V MOTORIZED C/O SWITCH Int. Motor Commutator OTM80F4CMA230V

Connectors > Switch disconnector
OT_C

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An ABB OTM80F4CMA230V motorized change-over switch automates the transfer of electrical loads between primary and secondary power supplies. Motor-operated switching systems are essential for uninterrupted power setups in mission-critical facilities.

Exact pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • End Of Life Disassembling Instructions: 1SCC303056M0201
  • Environmental Product Declaration - EPD: 1SCC303135D0201
  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • REACH Declaration: 1SCC011021D0201
  • RoHS Declaration: 1SCC011020D0201
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Data Sheet, Technical Information: 1SCC303003C0201
  • Instructions and Manuals: 1SCC303009M0206
  • Degree of Protection: Front IP20
  • Pollution Degree: 3
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85365080
  • Country or Territory of Origin: Finland
  • Product Net Width: 283 mm
  • Product Net Height: 100 mm

More info

▲
ABB EcoSolutions
End Of Life Disassembling Instructions1SCC303056M0201
Environmental Product Declaration - EPD1SCC303135D0201
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC011021D0201
RoHS Declaration1SCC011020D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Popular Downloads
Data Sheet, Technical Information1SCC303003C0201
Instructions and Manuals1SCC303009M0206
Environmental Product Declaration - EPD1SCC303135D0201
Environmental
Degree of ProtectionFront IP20
Pollution Degree3
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85365080
Country or Territory of OriginFinland
Dimensions
Product Net Width283 mm
11.14 in
Product Net Height100 mm
3.94 in
Product Net Depth / Length116 mm
4.57 in
Product Net Weight1.86 kg
4.1 lb
Container Information
Package Level 1 Unitsbox 1 box
Package Level 1 Width115 mm
Package Level 1 Depth / Length315 mm
Package Level 1 Height115 mm
Package Level 1 Gross Weight1.86 kg
Package Level 1 EAN6417019516882
Technical
Cable Cross-Section10 ... 70 mm²
Conventional Free-air Thermal Current (Ith)Θ = 40 °C 80 A
Conventional Thermal Current (Ithe)Fully Enclosed 80 A
Degree of ProtectionFront IP20
Distance Between PhasesStandard
Fourth Pole PositionRight Side
Fourth Pole TypeSwitched - Simultaneous Function
Handle ColorBlack
Handle TypeDirect mounted handle
Motor Operational Voltage110 ... 240 V AC/DC
Mounting TypeBase mounting
Number of Poles4P
Operating ModeFront
Pollution Degree3
Position of Line TerminalsTop In - Bottom Out, Bottom In - Top Out
Power Lossat Rated Operating Conditions per Pole 3.5 W
Rated Impulse Withstand Voltage (Uimp)8 kV
Rated Insulation Voltage (Ui)800 V
Rated Operational Current AC-21A (Ie)(380 ... 415 V) 80 A
(500 V) 80 A
(690 V) 80 A
Rated Operational Current AC-22A (Ie)(380 ... 415 V) 80 A
(500 V) 80 A
(690 V) 80 A
Rated Operational Current AC-23A (Ie)(380 ... 415 V) 80 A
(500 V) 60 A
(690 V) 40 A
Rated Operational Current AC-31B (Ie)(380 ... 415 V) 80 A
Rated Operational Current AC-33B (Ie)(380 ... 415 V) 80 A
Rated Operational Power AC-23A (Pe)(380 ... 415 V) 37 kW
(500 V) 37 kW
(690 V) 37 kW
Rated Operational VoltageMain Circuit 800 V
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 2.5 kiloampere rms
Switches Operating MechanismMechanism at the End of the Switch
Terminal TypeScrew Terminals
Tightening Torqueacc. IEC 60947-1 6 N·m
Transition TypeOpen
Technical UL/CSA
Tightening Torqueacc. IEC 60947-1 6 N·m
Certificates and Declarations
Declaration of Conformity - CE1SCC303039D2702
External Classifications and Standards
Object Classification CodeQ
ETIM 9EC000216 - Switch disconnector (low voltage)
ETIM 10EC000216 - Switch disconnector (AC)
UNSPSC39122233
IDEA Granular Category Code (IGCC)5208 >> Controller switch
eClassV11.1 : 27371403
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland)3601235

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
