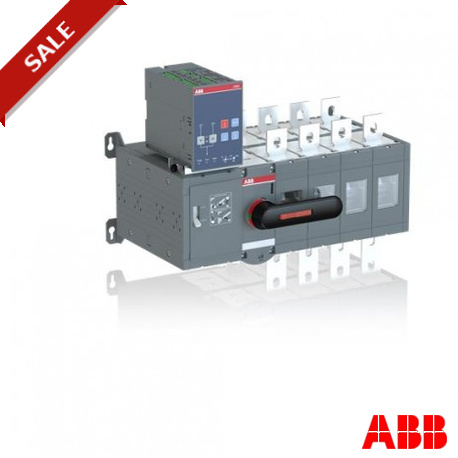

OTM630E4C3D230C 1SCA108726R1001 ABB OTM630E4C3D230C AUTOMATIC C/O SWITCH
OTM630E4C3D230C
1SCA108726R1001
ABB
1 Pcs.
Connectors > Switch disconnector
OT_C
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An automatic change over switch is integrated into critical power systems to seamlessly transfer loads between primary and backup sources during outages. The Abb OTM630E4C3D230C features an advanced motorized switching mechanism designed for uninterrupted continuity. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- RoHS Status: Planned to follow EU Directive 2002/95/EC August 18, 2005 and amendment after 2009 Q4
- Conventional Free-air Thermal Current (I th ): q = 40 °C 630 A
- Conventional Thermal Current (I the ): Fully Enclosed 630 A
- IIT Publishing Status: Level 0 - Information enabled
- Number of Poles: 4
- Operating Mechanism: Mechanism at the end of the switch
- Pollution Degree: 3
- Position of Line Terminals: Top In - Bottom Out
- Power Loss: 25 W
- Product Main Type: OTM630_C_D
- Product Name: AUTOMATIC C/O SWITCH
- Rated Impulse Withstand Voltage (U imp ): 12 kV
- Rated Insulation Voltage (U i ): 1000 V
- Rated Operational Current AC-21A (I e ): (500 V) 630 A (690 V) 630 A
- Rated Operational Current AC-22A (I e ): (500 V) 630 A (690 V) 630 A
- Rated Operational Current AC-23A (I e ): (380 ... 415 V) 630 A (500 V) 630 A (690 V) 630 A
More info
▲Including a handle for manual operation, PCB connectors, bolt kit with nuts and washers for all terminals. Including a voltage sensing kit on the top of the switch. Voltage sensing kit on the bottom on the switch, available on request, please add letter “B” to the type code. For example, OTM160E4C8D230C��OTM160E4CB8D230C. Include a storage clip for the handle and spare fuses.
Ordering
- EAN:
- 6417019419619
- Minimum Order Quantity:
- 1 piece
- Customs Tariff Number:
- 85365080
Dimensions
- Product Net Width:
- 476mm
- Product Net Height:
- 357mm
- Product Net Depth:
- 299mm
- Product Net Weight:
- 37kg
Container Information
- Package Level 1 Units:
- 1 piece
- Package Level 1 Width:
- 440 mm
- Package Level 1 Height:
- 565 mm
- Package Level 1 Length:
- 700 mm
- Package Level 1 Gross Weight:
- 36.68 kg
- Package Level 1 EAN:
- 6417019419619
Environmental
- RoHS Status:
- Planned to follow EU Directive 2002/95/EC August 18, 2005 and amendment after 2009 Q4
Additional Information
- Conventional Free-air Thermal Current (Ith):
- q = 40 °C 630 A
- Conventional Thermal Current (Ithe):
- Fully Enclosed 630 A
- IIT Publishing Status:
- Level 0 - Information enabled
- Number of Poles:
- 4
- Operating Mechanism:
- Mechanism at the end of the switch
- Pollution Degree:
- 3
- Position of Line Terminals:
- Top In - Bottom Out
- Power Loss:
- 25 W
- Product Main Type:
- OTM630_C_D
- Product Name:
- AUTOMATIC C/O SWITCH
- Rated Impulse Withstand Voltage (Uimp):
- 12 kV
- Rated Insulation Voltage (Ui):
- 1000 V
- Rated Operational Current AC-21A (Ie):
- (500 V) 630 A
(690 V) 630 A
- Rated Operational Current AC-22A (Ie):
- (500 V) 630 A
(690 V) 630 A
- Rated Operational Current AC-23A (Ie):
- (380 ... 415 V) 630 A
(500 V) 630 A
(690 V) 630 A
- Rated Operational Power AC-23A (Pe):
- (220 ... 240 V) 200 kW
(400 V) 355 kW
(500 V) 400 kW
(690 V) 630 kW
- Rated Operational Voltage:
- 1000 V
- Rated Short-time Withstand Current (Icw):
- for 1 s 20 kiloampere rms
Certificates and Declarations (Document Number)
- Data Sheet, Technical Information:
- 1SCC303003C0201
- Declaration of Conformity - CE:
- 1SCC303026D0202
- RoHS Information:
- 1SCC303036D0202
Classifications
- ETIM 5:
- EC000216 - Switch disconnector
- Object Classification Code:
- Q
