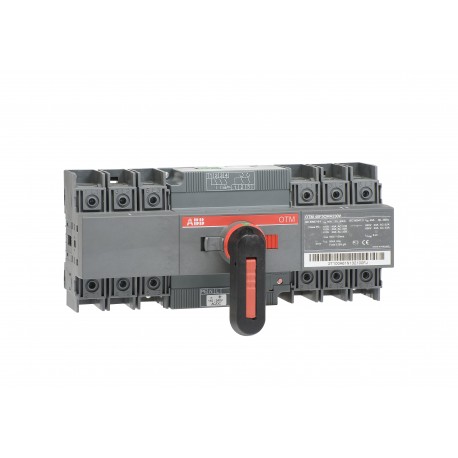

1SCA120096R1001 ABB OTM40F3CMA230V MOTORIZED C/O SWITCH
1SCA120096R1001
120096
ABB
1 Pcs.
Connectors > Switch disconnector
OT_C
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An ABB OTM40F3CMA230V motorized changeover switch provides automated source switching for low-voltage power distribution networks. These motorized units ensure seamless transitions between primary feeds and backup generators to maintain continuous operation in automated facilities.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- End Of Life Disassembling Instructions: 1SCC303056M0201
- Environmental Product Declaration - EPD: 1SCC303135D0201
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 1SCC011021D0201
- RoHS Declaration: 1SCC011020D0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Data Sheet, Technical Information: 1SCC303003C0201
- Instructions and Manuals: 1SCC303009M0206
- Environmental Product Declaration - EPD: 1SCC303135D0201
- Degree of Protection: Front IP20
- Pollution Degree: 3
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85365080
- Country or Territory of Origin: Finland
- Product Net Width: 230 mm
- Product Net Height: 100 mm
More info
▲| ABB EcoSolutions | |
|---|---|
| End Of Life Disassembling Instructions | 1SCC303056M0201 |
| Environmental Product Declaration - EPD | 1SCC303135D0201 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC303003C0201 |
| Instructions and Manuals | 1SCC303009M0206 |
| Environmental Product Declaration - EPD | 1SCC303135D0201 |
| Environmental | |
| Degree of Protection | Front IP20 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 230 mm |
| 9.06 in | |
| Product Net Height | 100 mm |
| 3.94 in | |
| Product Net Depth / Length | 116 mm |
| 4.57 in | |
| Product Net Weight | 1.64 kg |
| 3.62 lb | |
| Container Information | |
| Package Level 1 Units | box 1 box |
| Package Level 1 Width | 115 mm |
| Package Level 1 Depth / Length | 315 mm |
| Package Level 1 Height | 115 mm |
| Package Level 1 Gross Weight | 1.64 kg |
| Package Level 1 EAN | 6417019516851 |
| Technical | |
| Cable Cross-Section | 2.5 ... 16 mm² |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 40 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 40 A |
| Degree of Protection | Front IP20 |
| Distance Between Phases | Standard |
| Handle Color | Black |
| Handle Type | Direct mounted handle |
| Motor Operational Voltage | 110 ... 240 V AC/DC |
| Mounting Type | Base mounting |
| Number of Poles | 3P |
| Operating Mode | Front |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 1.6 W |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 800 V |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 40 A |
| (500 V) 40 A | |
| (690 V) 40 A | |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 40 A |
| (500 V) 40 A | |
| (690 V) 40 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 40 A |
| (500 V) 40 A | |
| (690 V) 40 A | |
| Rated Operational Current AC-31B (Ie) | (380 ... 415 V) 40 A |
| Rated Operational Current AC-33B (Ie) | (380 ... 415 V) 40 A |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 18.5 kW |
| (500 V) 22 kW | |
| (690 V) 37 kW | |
| Rated Operational Voltage | Main Circuit 800 V |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 2.5 kiloampere rms |
| Switches Operating Mechanism | Mechanism at the End of the Switch |
| Terminal Type | Screw Terminals |
| Tightening Torque | acc. IEC 60947-1 6 N·m |
| Transition Type | Open |
| Technical UL/CSA | |
| Tightening Torque | acc. IEC 60947-1 6 N·m |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SCC303039D2702 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5208 >> Controller switch |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Finland) | 3601226 |
