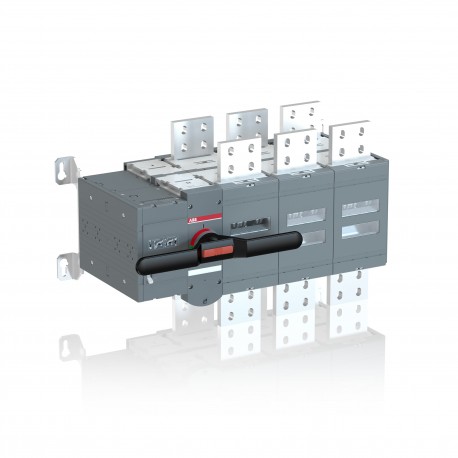

1SCA129240R1001 ABB Int. Switch Engine OTM3200E3CM230C
1SCA129240R1001
129240
ABB
1 Pcs.
Connectors > Switch disconnector
Manual Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Abb switch engine automates the operation of high-capacity transfer switches and changeover systems within large-scale electrical sub-stations and industrial facilities. This electromechanical drive mechanism facilitates seamless source switching and remote control capabilities for continuous power management.
Current pricing, availability, and lead times for the Abb 1SCA129240R1001 are confirmed per enquiry through an RFQ.
- End Of Life Disassembling Instructions: 1SCC303062M0201
- Environmental Product Declaration - EPD: 1SCC303114D0201
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 1SCC011021D0201
- RoHS Declaration: 1SCC011020D0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Data Sheet, Technical Information: 1SCC303003C0201
- Instructions and Manuals: 1SCC303002M0204
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85365080
- Country or Territory of Origin: Finland
- Product Net Width: 691.5 mm
- Product Net Height: 410 mm
- Product Net Depth / Length: 429 mm
- Product Net Weight: 61 kg
More info
▲| ABB EcoSolutions | |
|---|---|
| End Of Life Disassembling Instructions | 1SCC303062M0201 |
| Environmental Product Declaration - EPD | 1SCC303114D0201 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC303003C0201 |
| Instructions and Manuals | 1SCC303002M0204 |
| Environmental Product Declaration - EPD | 1SCC303114D0201 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 691.5 mm |
| 27.22 in | |
| Product Net Height | 410 mm |
| 16.14 in | |
| Product Net Depth / Length | 429 mm |
| 16.89 in | |
| Product Net Weight | 61 kg |
| 134.48 lb | |
| Container Information | |
| Package Level 1 Units | box 1 box |
| Package Level 1 Width | 780 mm |
| 30.7 in | |
| Package Level 1 Depth / Length | 580 mm |
| 22.8 in | |
| Package Level 1 Height | 500 mm |
| 19.7 in | |
| Package Level 1 Gross Weight | 81 kg |
| 178.5 lb | |
| Package Level 1 EAN | 6417019589374 |
| Technical | |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 3200 A |
| Distance Between Phases | Standard |
| Handle Type | Direct mounted handle |
| Motor Operational Voltage | 220 ... 240 V AC |
| Mounting Type | Base mounting |
| Number of Poles | 3P |
| Operating Mode | Front |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 95 W |
| Rated Operational Current AC-21B (Ie) | (380 ... 415 V) 3200 A |
| (500 V) 3200 A | |
| Rated Operational Voltage | Main Circuit 1000 V |
| Switches Operating Mechanism | Mechanism at the End of the Switch |
| Terminal Type | Screw Terminals |
| Tightening Torque | acc. IEC 60947-1 50 ... 75 N·m |
| Transition Type | Open |
| Technical UL/CSA | |
| Tightening Torque | acc. IEC 60947-1 50 ... 75 N·m |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SCC303057D2701 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122233 |
| eClass | V11.1 : 27371403 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
