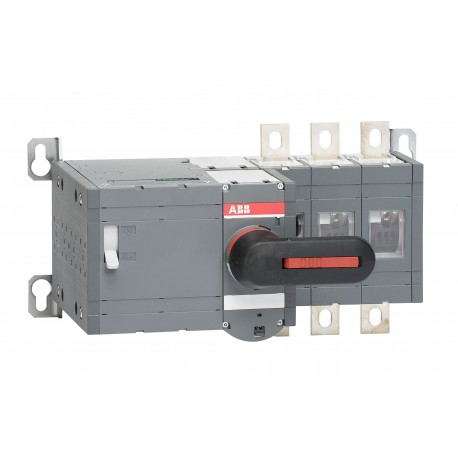

ABB 1SCA115334R1001 1SCA115334R1001 ABB OTM315E3M230C Motorized switch-disconnector View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SCA115334R1001 ABB OTM315E3M230C Motorized switch-disconnector

1SCA115334R1001

115334

ABB

1 Pcs.

OTM315E3M230C Motorized switch-disconnector Int. disconnector Motor OTM315E3M230C OTM315E3M230C MOTORIZED SWITCH

Connectors > Switch disconnector
OT

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
End Of Life Disassembling Instructions1SCC301139M0201
Environmental Product Declaration - EPD1SCC303096D0201
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC011021D0201
RoHS Declaration1SCC011020D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA1SCC011025D0201
Popular Downloads
Data Sheet, Technical Information1SCC301020C0201
Instructions and Manuals1SCC303006M0205
Environmental Product Declaration - EPD1SCC303096D0201
Environmental
Degree of ProtectionFront IP00
Pollution Degree3
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85365080
Country or Territory of OriginFinland
Dimensions
Product Net Width298 mm
Product Net Height185 mm
Product Net Depth / Length211.5 mm
Product Net Weight7.6 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width255 mm
Package Level 1 Depth / Length460 mm
Package Level 1 Height253 mm
Package Level 1 Gross Weight9.2 kg
Package Level 1 EAN6417019477121
Technical
Conventional Free-air Thermal Current (Ith)Θ = 40 °C 315 A
Conventional Thermal Current (Ithe)Fully Enclosed 315 A
Degree of ProtectionFront IP00
Distance Between PhasesStandard
Handle ColorBlack
Handle TypeDirect mounted handle
Mechanical Durability16000
Motor Operational Voltage220 ... 240 V AC
Mounting TypeBase mounting
Number of Poles3P
Operating ModeFront
Pollution Degree3
Position of Line TerminalsTop In - Bottom Out
Power Lossat Rated Operating Conditions per Pole 6.5 W
Rated Conditional Short-Circuit Current (Inc)(500 A fuse, 500 V) 100 kA
(500 A fuse, 690 V) 80 kA
Rated Impulse Withstand Voltage (Uimp)12 kV
Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 1000 V
Rated Operational Current AC-21A (Ie)(380 ... 415 V) 315 A
(500 V) 315 A
(690 V) 315 A
(1000 V AC) 315 A
Rated Operational Current AC-22A (Ie)(380 ... 415 V) 315 A
(500 V) 315 A
(690 V) 315 A
Rated Operational Current AC-23A (Ie)(380 ... 415 V) 315 A
(500 V) 315 A
(690 V) 315 A
Rated Operational Power AC-23A (Pe)(220 ... 240 V) 100 kW
(400 ... 415 V) 160 kW
(500 V) 220 kW
(690 V) 315 kW
Rated Operational VoltageMain Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm)(690 V) 65 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 15 kA
Special FunctionsNo
StandardsIEC 60947-3
Switches Operating MechanismMechanism at the End of the Switch
Terminal TypeLug terminals
Tightening Torqueacc. IEC 60947-1 30 … 44 N·m
Technical UL/CSA
Tightening Torqueacc. IEC 60947-1 30 … 44 N·m
Certificates and Declarations
ATEX CertificateNo certification needed
Declaration of Conformity - CE1SCC301198D0202
UL CertificateNo certification needed
VDE CertificateNo certification needed
External Classifications and Standards
Object Classification CodeQ
ETIM 9EC000216 - Switch disconnector (low voltage)
ETIM 10EC000216 - Switch disconnector (AC)
UNSPSC39122233
eClassV11.1 : 27371403
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
