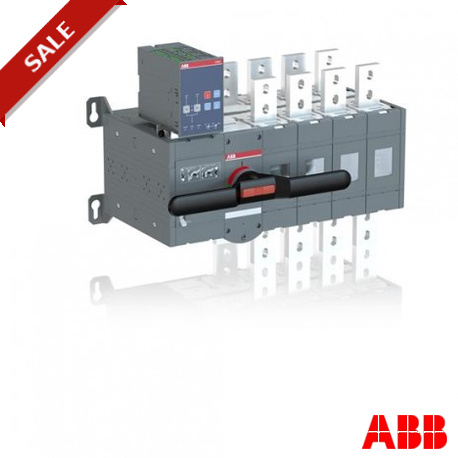

ABB OTM1600E4C3D230C OTM1600E4C3D230C 1SCA112848R1001 ABB OTM1600E4C3D230C AUTOMATIC C/O SWITCH View larger
Images are for illustrative purposes only. Please refer to data sheet for details

OTM1600E4C3D230C 1SCA112848R1001 ABB OTM1600E4C3D230C AUTOMATIC C/O SWITCH

OTM1600E4C3D230C

1SCA112848R1001

ABB

1 Pcs.

OTM1600E4C3D230C AUTOMATIC C/O SWITCH Int. MOT+ATS OTM1600E4C3D230C Switch

Connectors > Switch disconnector
OT_C

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Including a handle for manual operation, PCB connectors, bolt kit with nuts and washers for all terminals. Including a voltage sensing kit on the top of the switch. Voltage sensing kit on the bottom on the switch, available on request, please add letter “B” to the type code. For example, OTM160E4C8D230C��OTM160E4CB8D230C. Include a storage clip for the handle and spare fuses.

Ordering

  • EAN:
    6417019454931
  • Minimum Order Quantity:
    1 piece
  • Customs Tariff Number:
    85365080

Dimensions

  • Product Net Width:
    586mm
  • Product Net Height:
    400mm
  • Product Net Depth:
    317mm
  • Product Net Weight:
    70kg

Container Information

  • Package Level 1 Units:
    1 piece
  • Package Level 1 Width:
    580 mm
  • Package Level 1 Height:
    500 mm
  • Package Level 1 Length:
    780 mm
  • Package Level 1 Gross Weight:
    70 kg
  • Package Level 1 EAN:
    6417019454931

Environmental

  • RoHS Status:
    Planned to follow EU Directive 2002/95/EC August 18, 2005 and amendment after 2009 Q4

Additional Information

  • Conventional Free-air Thermal Current (Ith):
    q = 40 °C 1600 A
  • IIT Publishing Status:
    Level 0 - Information enabled
  • Number of Poles:
    4
  • Operating Mechanism:
    Mechanism at the end of the switch
  • Pollution Degree:
    3
  • Position of Line Terminals:
    Top In - Bottom Out
  • Power Loss:
    48 W
  • Product Main Type:
    OTM1600_C_D
  • Product Name:
    AUTOMATIC C/O SWITCH
  • Rated Impulse Withstand Voltage (Uimp):
    12 kV
  • Rated Insulation Voltage (Ui):
    1000 V
  • Rated Operational Current AC-21A (Ie):
    (500 V) 1600 A
    (690 V) 1600 A
  • Rated Operational Current AC-22A (Ie):
    (500 V) 1600 A
    (690 V) 1600 A
  • Rated Operational Current AC-23A (Ie):
    (380 ... 415 V) 1600 A
    (500 V) 1600 A
    (690 V) 1600 A
  • Rated Operational Power AC-23A (Pe):
    (230 V) Three Phase 400 kW
    (400 V) 710 kW
    (500 V) 900 kW
    (690 V) 1200 kW
  • Rated Operational Voltage:
    1000 V
  • Rated Short-time Withstand Current (Icw):
    for 1 s 50 kiloampere rms

Certificates and Declarations (Document Number)

Classifications

  • ETIM 5:
    EC000216 - Switch disconnector
  • Object Classification Code:
    Q

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
