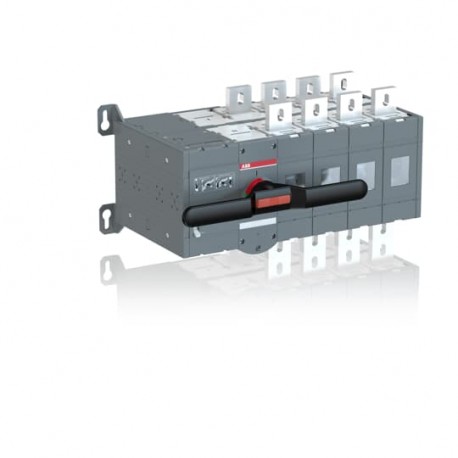

1SCA112702R1001 ABB OTM1250E4CM230C MOTORIZED C/O SWITCH
1SCA112702R1001
112702
ABB
1 Pcs.
Connectors > Switch disconnector
OT_C
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An 1SCA112702R1001 ABB OTM1250E4CM230C motorized c/o switch is an industrial change-over device designed for automated source transfer and safe electrical grid management. These robust units are standard in large commercial and industrial facilities requiring uninterrupted power supply switching capabilities.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- End of Life Instructions: 1SCC303060M0201
- Environmental Information: 1SCC303036D0202
- REACH Declaration: 1SCC011021D0201
- RoHS Information: 1SCC011020D0201
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85365080
- Country of Origin: Finland (FI)
- Data Sheet, Technical Information: 1SCC303003C0201
- Instructions and Manuals: 1SCC303002M0206
- Product Net Width: 587 mm
- Product Net Height: 306 mm
- Product Net Depth / Length: 297 mm
- Product Net Weight: 65 kg
- Rated Operational Current AC-21A (I e ): (380 ... 415 V) 1250 A
More info
▲| Circular Value | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| End of Life Instructions | 1SCC303060M0201 |
| Environmental Information | 1SCC303036D0202 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Information | 1SCC011020D0201 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country of Origin | Finland (FI) |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC303003C0201 |
| Instructions and Manuals | 1SCC303002M0206 |
| End of Life Instructions | 1SCC303060M0201 |
| Dimensions | |
| Product Net Width | 587 mm |
| Product Net Height | 306 mm |
| Product Net Depth / Length | 297 mm |
| Product Net Weight | 65 kg |
| Technical | |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 1250 A |
| (500 V) 1250 A | |
| (690 V) 1250 A | |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 1250 A |
| (500 V) 1250 A | |
| (690 V) 1250 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 1250 A |
| (500 V) 1250 A | |
| (690 V) 1250 A | |
| Rated Operational Current AC-31B (Ie) | (380 ... 415 V) 1250 A |
| Rated Operational Current AC-33B (Ie) | (380 ... 415 V) 1000 A |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 710 kW |
| (500 V) 900 kW | |
| (690 V) 1200 kW | |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 1250 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 1000 V |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 50 kiloampere rms |
| Motor Operational Voltage | 220 ... 240 V AC |
| Power Loss | 29 W |
| Pollution Degree | 3 |
| Handle Color | Black |
| Handle Type | Direct mounted handle |
| Fourth Pole Position | Right Side |
| Fourth Pole Type | Switched - Simultaneous Function |
| Switches Operating Mechanism | Mechanism at the End of the Switch |
| Distance Between Phases | Standard |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Operating Mode | Front operated |
| Mounting Type | Base mounting |
| Number of Poles | 4 |
| Degree of Protection | Front IP20 |
| Transition Type | Open |
| Environmental | |
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Environmental Information | 1SCC303036D0202 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SCC303027D0201 |
| REACH Declaration | 1SCC011021D0201 |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 490 mm |
| Package Level 1 Depth / Length | 590 mm |
| Package Level 1 Height | 430 mm |
| Package Level 1 Gross Weight | 65 kg |
| Package Level 1 EAN | 6417019453941 |
| Classifications | |
| Object Classification Code | Q |
| ETIM 7 | EC000216 - Switch disconnector |
| ETIM 8 | EC000216 - Switch disconnector |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| eClass | V11.1 : 27371403 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| E-Number (Finland) | 3641784 |
