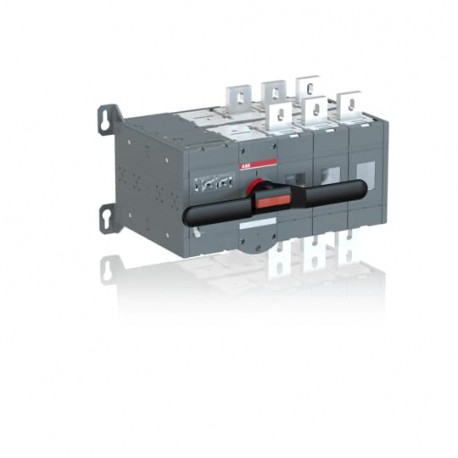

ABB 1SCA112676R1001 1SCA112676R1001 ABB OTM1250E3CM230C MOTORIZED C/O SWITCH View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SCA112676R1001 ABB OTM1250E3CM230C MOTORIZED C/O SWITCH

1SCA112676R1001

112676

ABB

1 Pcs.

OTM1250E3CM230C MOTORIZED C/O SWITCH Int. Commutator Motor OTM1250E3CM230C

Connectors > Switch disconnector
OT_C

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A motorized c/o switch is an automated changeover device used in critical power applications to seamlessly transfer electrical loads between primary and backup sources. Facilities rely on this equipment to maintain continuous operation during utility outages or generator testing sequences. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • End Of Life Disassembling Instructions: 1SCC303060M0201
  • Environmental Information: 1SCC303036D0202
  • Environmental Product Declaration - EPD: 1SCC303103D0201
  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • REACH Declaration: 1SCC011021D0201
  • RoHS Declaration: 1SCC011020D0201
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Data Sheet, Technical Information: 1SCC303003C0201
  • Instructions and Manuals: 1SCC303002M0206
  • Degree of Protection: Front IP20
  • Pollution Degree: 3
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85365080
  • Country or Territory of Origin: Finland

More info

▲
ABB EcoSolutions
End Of Life Disassembling Instructions1SCC303060M0201
Environmental Information1SCC303036D0202
Environmental Product Declaration - EPD1SCC303103D0201
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC011021D0201
RoHS Declaration1SCC011020D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Popular Downloads
Data Sheet, Technical Information1SCC303003C0201
Instructions and Manuals1SCC303002M0206
Environmental Product Declaration - EPD1SCC303103D0201
Environmental
Degree of ProtectionFront IP20
Environmental Information1SCC303036D0202
Pollution Degree3
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85365080
Country or Territory of OriginFinland
Dimensions
Product Net Width507 mm
19.96 in
Product Net Height306 mm
12.05 in
Product Net Depth / Length297 mm
11.69 in
Product Net Weight55 kg
121.25 lb
Container Information
Package Level 1 Unitsbox 1 box
Package Level 1 Width440 mm
Package Level 1 Depth / Length700 mm
Package Level 1 Height565 mm
Package Level 1 Gross Weight55 kg
Package Level 1 EAN6417019453910
Technical
Conventional Free-air Thermal Current (Ith)Θ = 40 °C 1250 A
Degree of ProtectionFront IP20
Distance Between PhasesStandard
Handle ColorBlack
Handle TypeDirect mounted handle
Motor Operational Voltage220 ... 240 V AC
Mounting TypeBase mounting
Number of Poles3P
Operating ModeFront
Pollution Degree3
Position of Line TerminalsTop In - Bottom Out, Bottom In - Top Out
Power Lossat Rated Operating Conditions per Pole 29 W
Rated Impulse Withstand Voltage (Uimp)12 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Current AC-21A (Ie)(380 ... 415 V) 1250 A
(500 V) 1250 A
(690 V) 1250 A
Rated Operational Current AC-22A (Ie)(380 ... 415 V) 1250 A
(500 V) 1250 A
(690 V) 1250 A
Rated Operational Current AC-23A (Ie)(380 ... 415 V) 1250 A
(500 V) 1250 A
(690 V) 1250 A
Rated Operational Current AC-31B (Ie)(380 ... 415 V) 1250 A
Rated Operational Current AC-33B (Ie)(380 ... 415 V) 1000 A
Rated Operational Power AC-23A (Pe)(380 ... 415 V) 710 kW
(500 V) 900 kW
(690 V) 1200 kW
Rated Operational VoltageMain Circuit 1000 V
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 50 kiloampere rms
Switches Operating MechanismMechanism at the End of the Switch
Terminal TypeScrew Terminals
Tightening Torqueacc. IEC 60947-1 50 ... 75 N·m
Transition TypeOpen
Technical UL/CSA
Tightening Torqueacc. IEC 60947-1 50 ... 75 N·m
Certificates and Declarations
Declaration of Conformity - CE1SCC303027D2702
External Classifications and Standards
Object Classification CodeQ
ETIM 9EC000216 - Switch disconnector (low voltage)
ETIM 10EC000216 - Switch disconnector (AC)
UNSPSC39122233
IDEA Granular Category Code (IGCC)5290 >> Disconnect switch
eClassV11.1 : 27371403
WEEE Category4. Large Equipment (Any External Dimension More Than 50 cm)
E-Number (Finland)3641780

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
