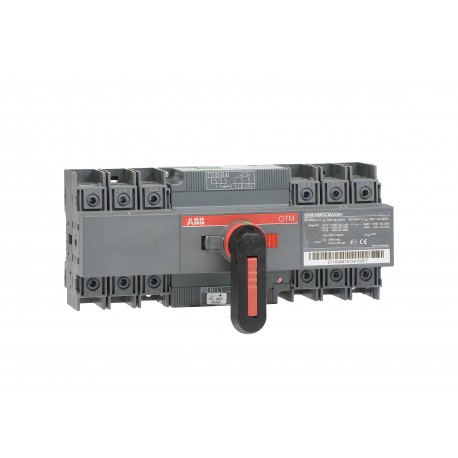

1SCA120071R1001 ABB OTM100F3CMA230V MOTORIZED C/O SWITCH
1SCA120071R1001
120071
ABB
1 Pcs.
Connectors > Switch disconnector
OT_C
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
ABB OTM100F3CMA230V motorized change-over switch (1SCA120071R1001) enables automated source switching and load transfer across dual power feeds. Motorized change-over units are crucial for maintaining continuous power supply in automated electrical installations. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- End Of Life Disassembling Instructions: 1SCC303056M0201
- Environmental Product Declaration - EPD: 1SCC303135D0201
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 1SCC011021D0201
- RoHS Declaration: 1SCC011020D0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Data Sheet, Technical Information: 1SCC303003C0201
- Instructions and Manuals: 1SCC303009M0206
- Environmental Product Declaration - EPD: 1SCC303135D0201
- Degree of Protection: Front IP20
- Pollution Degree: 3
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85365080
- Country or Territory of Origin: Finland
- Product Net Width: 230 mm
- Product Net Height: 100 mm
More info
▲| ABB EcoSolutions | |
|---|---|
| End Of Life Disassembling Instructions | 1SCC303056M0201 |
| Environmental Product Declaration - EPD | 1SCC303135D0201 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC303003C0201 |
| Instructions and Manuals | 1SCC303009M0206 |
| Environmental Product Declaration - EPD | 1SCC303135D0201 |
| Environmental | |
| Degree of Protection | Front IP20 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 230 mm |
| 9.06 in | |
| Product Net Height | 100 mm |
| 3.94 in | |
| Product Net Depth / Length | 116 mm |
| 4.57 in | |
| Product Net Weight | 1.64 kg |
| 3.62 lb | |
| Container Information | |
| Package Level 1 Units | box 1 box |
| Package Level 1 Width | 115 mm |
| Package Level 1 Depth / Length | 315 mm |
| Package Level 1 Height | 115 mm |
| Package Level 1 Gross Weight | 1.64 kg |
| Package Level 1 EAN | 6417019516820 |
| Technical | |
| Cable Cross-Section | 10 ... 70 mm² |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 115 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 115 A |
| Degree of Protection | Front IP20 |
| Distance Between Phases | Standard |
| Handle Color | Black |
| Handle Type | Direct mounted handle |
| Motor Operational Voltage | 110 ... 240 V AC/DC |
| Mounting Type | Base mounting |
| Number of Poles | 3P |
| Operating Mode | Front |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 4 W |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 800 V |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 100 A |
| (500 V) 100 A | |
| (690 V) 100 A | |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 100 A |
| (500 V) 100 A | |
| (690 V) 100 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 80 A |
| (500 V) 60 A | |
| (690 V) 40 A | |
| Rated Operational Current AC-31B (Ie) | (380 ... 415 V) 100 A |
| Rated Operational Current AC-33B (Ie) | (380 ... 415 V) 80 A |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 37 kW |
| (500 V) 37 kW | |
| (690 V) 37 kW | |
| Rated Operational Voltage | Main Circuit 800 V |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 2.5 kiloampere rms |
| Switches Operating Mechanism | Mechanism at the End of the Switch |
| Terminal Type | Screw Terminals |
| Tightening Torque | acc. IEC 60947-1 6 N·m |
| Transition Type | Open |
| Technical UL/CSA | |
| Tightening Torque | acc. IEC 60947-1 6 N·m |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SCC303039D2702 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5208 >> Controller switch |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Finland) | 3601236 |
