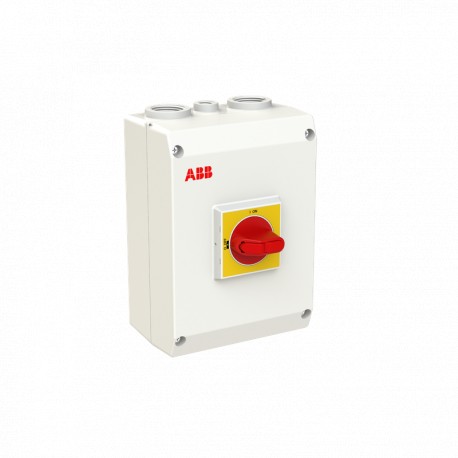

OTE25AL3M 1SCA022614R0020 ABB OTE25AL3M EMC safety switch
OTE25AL3M
1SCA022614R0020
ABB
1 Pcs.
Connectors > Switch disconnector
Box
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An ABB OTE25AL3M EMC safety switch is engineered to provide secure local power isolation while mitigating electromagnetic interference in sensitive automation setups. Safety switches of this classification are typically mounted close to variable frequency drives or motors to ensure safe servicing. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- RoHS Declaration: 1SCC340004D2705
- RoHS Information: Following EU Directive 2011/65/EU
- Data Sheet, Technical Information: 1SCC340015C0201
- Instructions and Manuals: 1SCC340003M0016
- Mechanical Drawings: OTPK201490SM32.stp
- Degree of Protection: acc. to IEC 60529 IP65
- Pollution Degree: 3
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85363030
- Replacement Product ID (NEW): OTE25A3M
- Country or Territory of Origin: Finland
- Product Net Width: 145 mm
- Product Net Height: 200 mm
- Product Net Depth / Length: 90 mm
- Product Net Weight: 0.8 kg
- Package Level 1 Units: box 1 piece
More info
▲| ABB EcoSolutions | |
|---|---|
| Material Compliance | |
| RoHS Declaration | 1SCC340004D2705 |
| RoHS Information | Following EU Directive 2011/65/EU |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC340015C0201 |
| Instructions and Manuals | 1SCC340003M0016 |
| Mechanical Drawings | OTPK201490SM32.stp |
| Environmental | |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85363030 |
| Replacement Product ID (NEW) | OTE25A3M |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 145 mm |
| Product Net Height | 200 mm |
| Product Net Depth / Length | 90 mm |
| Product Net Weight | 0.8 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 162 mm |
| Package Level 1 Depth / Length | 222 mm |
| Package Level 1 Height | 148 mm |
| Package Level 1 Gross Weight | 0.9 kg |
| Package Level 1 EAN | 6417019200095 |
| Technical | |
| Cable Cross-Section | 1.5 ... 35 mm² |
| Cable Entry Position | Up/Down |
| Cable Outlets Per Side | 2xM32+M16 / 2xM32+M16 |
| Connecting Capacity Main Circuit | Screw Clamp 1.5 ... 35 mm² |
| Screw Clamp / PE Terminal 2pc,1.5 ... 35 mm² | |
| Conventional Thermal Current (Ithe) | Fully Enclosed 63 A |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Enclosure Material | Plastic |
| Handle Color | Red / Yellow |
| Handle Type | Selector handle |
| Impact Resistance Rating | Housing IK08 |
| Maximum Mounted Auxiliary Contacts | 2 NO, 2 NC |
| Mounted Auxiliary Contacts | 1 NO, 0 NC |
| Neutral Type | Fixed Neutral |
| Number of Auxiliary Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 1 |
| Number of Poles | 3P |
| Pollution Degree | 3 |
| Power Loss | at Rated Operating Conditions per Pole 2.8 W |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 750 V |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 45 A |
| (500 V) 45 A | |
| (690 V) 45 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 30 A |
| (500 V) 30 A | |
| (690 V) 20 A | |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 15 kW |
| (500 V) 15 kW | |
| (690 V) 15 kW | |
| Rated Operational Voltage | Main Circuit 750 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V AC) 1.4 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 1 kA |
| Special Functions | EMC |
| Standards | IEC 60947-1, -3 |
| Certificates and Declarations | |
| BV Certificate | 1SCC340018D0204 |
| Declaration of Conformity - CE | 1SCC340004D2705 |
| DNV GL Certificate | 1SCC340045D0203 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
