Product Overview

Serving as a specialized OTDC800EPP22 DC switch-disconnector from Abb, this unit manages direct current power distribution across demanding industrial setups. DC disconnect switches are crucial for solar installations, battery energy storage, and DC bus systems where reliable load interruption is mandatory. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Data Sheet, Technical Information: 1SCC301021C0201
  • Rated Operational Current DC-21B (I e ): (1000 V) 800 A
  • Conventional Thermal Current (I the ): Fully Enclosed 800 A
  • Rated Impulse Withstand Voltage (U imp ): 12 kV
  • Rated Insulation Voltage (U i ): 1500 V
  • Rated Operational Voltage: 1000 V
  • Rated Short-time Withstand Current (I cw ): for 1 s 10 kiloampere rms
  • Pollution Degree: 3
  • Handle Type: Handle and shaft not included
  • Switches Operating Mechanism: Mechanism Between the Poles 22 (Between the Poles)
  • Position of Line Terminals: Top In - Bottom Out
  • Operating Mode: Front operated
  • Standards: IEC
  • Special Functions: No
  • Mounting Type: Base mounting
  • Number of Circuits: 1

More info

▲

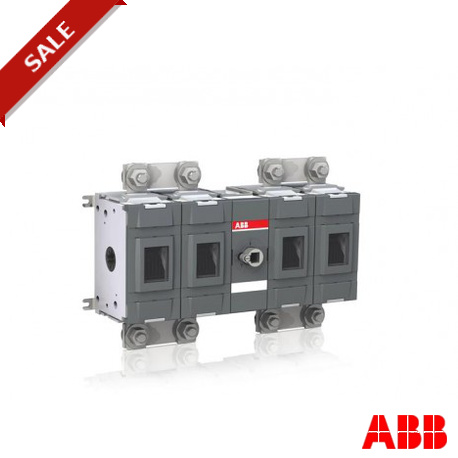

OTDC800EPP22 DC Switch-disconnector, Terminal bolt kit included, Handle and shaft need to be ordered separately, Base mounting, IEC 1000 VDC 800 A

Ordering

  • Minimum Order Quantity:
    1 piece
  • Customs Tariff Number:
    85365080

Popular Downloads

  • Data Sheet, Technical Information:
    1SCC301021C0201

Dimensions

  • Product Net Width:
    335mm
  • Product Net Height:
    227mm
  • Product Net Depth:
    105mm
  • Product Net Weight:
    7.3kg

Technical

  • Rated Operational Current DC-21B (Ie):
    (1000 V) 800 A
  • Conventional Thermal Current (Ithe):
    Fully Enclosed 800 A
  • Rated Impulse Withstand Voltage (Uimp):
    12 kV
  • Rated Insulation Voltage (Ui):
    1500 V
  • Rated Operational Voltage:
    1000 V
  • Rated Short-time Withstand Current (Icw):
    for 1 s 10 kiloampere rms
  • Pollution Degree:
    3
  • Handle Type:
    Handle and shaft not included
  • Switches Operating Mechanism:
    Mechanism Between the Poles
    22 (Between the Poles)
  • Position of Line Terminals:
    Top In - Bottom Out
  • Operating Mode:
    Front operated
  • Standards:
    IEC
  • Special Functions:
    No
  • Mounting Type:
    Base mounting
  • Number of Circuits:
    1
  • Number of Poles:
    2
  • Terminal Type:
    Lug terminals

Certificates and Declarations (Document Number)

  • Declaration of Conformity - CE:
    1SCC301009K0201
  • Instructions and Manuals:
    1SCC301085M0203

Container Information

  • Package Level 1 Width:
    263 mm
  • Package Level 1 Length:
    432 mm
  • Package Level 1 Height:
    143 mm
  • Package Level 1 Gross Weight:
    7,8 kg
  • Package Level 1 EAN:
    6417019656991

Classifications

  • ETIM 5:
    EC000216 - Switch disconnector
  • ETIM 6:
    EC000216 - Switch disconnector

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
