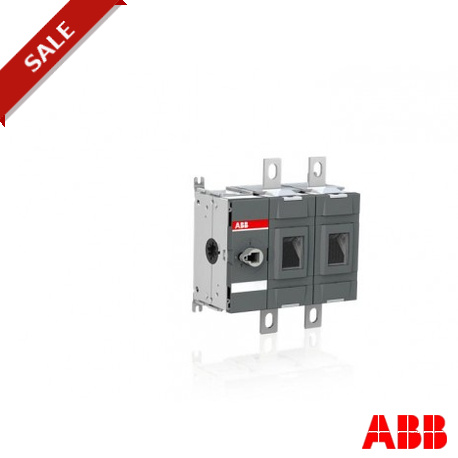

OTDC500 1SCA132357R1001 ABB OTDC500E02 DC Switch-disconnector
OTDC500
1SCA132357R1001
ABB
1 Pcs.
OTDC500E02 DC Switch-disconnector
DC Disconnector Switch OTDC500E02
Connectors > Switch disconnector
OTDC
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Including terminal bolt kit. Handle and shaft have to be ordered separately
Ordering
- EAN:
- 6417019614915
- Minimum Order Quantity:
- 1 piece
- Customs Tariff Number:
- 85365080
Dimensions
- Product Net Width:
- 197mm
- Product Net Height:
- 227mm
- Product Net Depth:
- 105mm
- Product Net Weight:
- 3.8kg
Container Information
- Package Level 1 Units:
- 1 piece
- Package Level 1 Width:
- 233 mm
- Package Level 1 Height:
- 133 mm
- Package Level 1 Length:
- 249 mm
- Package Level 1 Gross Weight:
- 4,3 kg
- Package Level 1 EAN:
- 6417019614915
Environmental
- RoHS Status:
- Planned to follow EU Directive 2002/95/EC August 18, 2005 and amendment after 2009 Q4
Additional Information
- Conventional Thermal Current (Ithe):
- Fully Enclosed 500 A
- Earthing Switch Type:
- No Additional Type
- Handle Type:
- None
- IIT Publishing Status:
- Level 0 - Information enabled
- Includes:
- None
- Mounting Type:
- Normal
- Number of Poles:
- 2
- Operating Mechanism:
- Mechanism at the end of the switch
- Operating Mode:
- Front Operated
- Pollution Degree:
- 3
- Power Loss:
- at Rated Operating Conditions per Pole 15 W
- Product Main Type:
- OTDC500
- Product Name:
- DC Switch-disconnector
- Rated Impulse Withstand Voltage (Uimp):
- 12 kV
- Rated Insulation Voltage (Ui):
- 1500 V
- Rated Operational Current DC-21B (Ie):
- (1000 V) 500 A
- Rated Operational Voltage:
- 1000 V
- Rated Short-time Withstand Current (Icw):
- for 1 s 10 kiloampere rms
- Special Functions:
- No
- Standards:
- IEC
- Terminal Type:
- Lug terminals
Certificates and Declarations (Document Number)
- Data Sheet, Technical Information:
- 1SCC301021C0201
- Declaration of Conformity - CE:
- 1SCC301009K0201
Classifications
- ETIM 5:
- EC000216 - Switch disconnector
- Object Classification Code:
- Q
