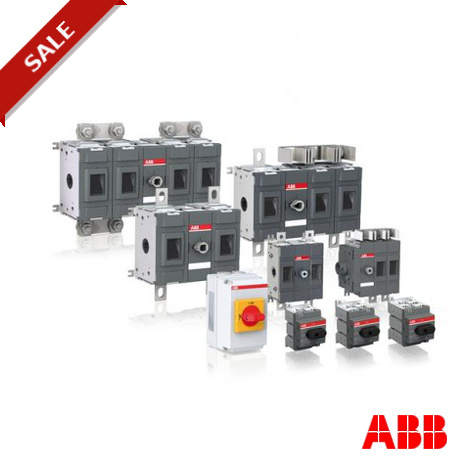

OTDC400UV12 1SCA142257R1001 ABB OTDC400UV12 PV Disconnect Switch
OTDC400UV12
1SCA142257R1001
ABB
1 Pcs.
Connectors > Switch disconnector
Manual Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Manage photovoltaic power distribution effectively using the Abb OTDC400UV12 photovoltaic disconnect switch, designed for high-voltage DC installations. This front-operated device safely interrupts direct current circuits in solar arrays, providing reliable isolation under demanding operational conditions. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Data Sheet, Technical Information: 1SCC301021C0201
- Rated Operational Current DC-21B (I e ): (1500 V) 500 A
- Conventional Free-air Thermal Current (I th ): q = 40 °C 630 A
- Conventional Thermal Current (I the ): Fully Enclosed 550 A
- Rated Impulse Withstand Voltage (U imp ): 12 kV
- Rated Insulation Voltage (U i ): 1500 V
- Rated Operational Voltage: 1500 V
- Rated Short-time Withstand Current (I cw ): for 1 s 10 kiloampere rms
- Pollution Degree: 3
- Handle Type: Handle and shaft not included
- Switches Operating Mechanism: Mechanism Between the Poles 12 (Between the Poles)
- Operating Mode: Front Operated
- Standards: IEC&UL
- Special Functions: 1500 V pre-connected
- Mounting Type: Base mounting
- Number of Circuits: 1
More info
▲OTDC400UV12 PV Disconnect Switch, Terminal bolt kit included, Handle and shaft need to be ordered separately, Base mounting, 1500 V pre-connected, UL 1000 VDC 400 A, UL 1500 VDC 400 A, IEC 1500 VDC 500 A
Ordering
- Minimum Order Quantity:
- 1 piece
- Customs Tariff Number:
- 85365080
Popular Downloads
- Data Sheet, Technical Information:
- 1SCC301021C0201
Dimensions
- Product Net Width:
- 266mm
- Product Net Height:
- 227mm
- Product Net Depth:
- 105mm
- Product Net Weight:
- 4,7kg
Technical
- Rated Operational Current DC-21B (Ie):
- (1500 V) 500 A
- Conventional Free-air Thermal Current (Ith):
- q = 40 °C 630 A
- Conventional Thermal Current (Ithe):
- Fully Enclosed 550 A
- Rated Impulse Withstand Voltage (Uimp):
- 12 kV
- Rated Insulation Voltage (Ui):
- 1500 V
- Rated Operational Voltage:
- 1500 V
- Rated Short-time Withstand Current (Icw):
- for 1 s 10 kiloampere rms
- Pollution Degree:
- 3
- Handle Type:
- Handle and shaft not included
- Switches Operating Mechanism:
- Mechanism Between the Poles
12 (Between the Poles)
- Operating Mode:
- Front Operated
- Standards:
- IEC&UL
- Special Functions:
- 1500 V pre-connected
- Mounting Type:
- Base mounting
- Number of Circuits:
- 1
- Number of Poles:
- 3
- Terminal Type:
- Lug terminals
Technical UL/CSA
- Ampere Rating UL/CSA:
- 1000 VDC 400 A
1500 VDC 400 A
Container Information
- Package Level 1 Gross Weight:
- 5.1 kg
- Package Level 1 EAN:
- 6417019697031
Classifications
- ETIM 5:
- EC000216 - Switch disconnector
- ETIM 6:
- EC000216 - Switch disconnector
