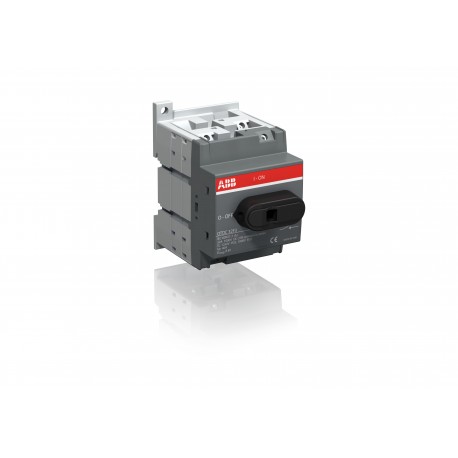

ABB 1SCA121459R1001 1SCA121459R1001 ABB OTDC32F3 DC Switch-disconnector View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SCA121459R1001 ABB OTDC32F3 DC Switch-disconnector

1SCA121459R1001

121459

ABB

1 Pcs.

OTDC32F3 DC Switch-disconnector DC disconnector switch OTDC32F3

Connectors > Switch disconnector
OTDC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
ABB Site Meeting Group Waste To Landfill TargetUL 2799 Zero Waste To Landfill Validation available
Environmental InformationNA
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC301240D0201
RoHS Declaration1SCC301239D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA1SCC301321D0201
Popular Downloads
Data Sheet, Technical Information1SCC301022C0201
Instructions and Manuals1SCC301079M0206
Environmental
Degree of ProtectionFront IP20
Environmental InformationNA
Pollution Degree3
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85363030
Country or Territory of OriginEstonia
Dimensions
Product Frame SizeXS
Product Net Width52.5 mm
2.1 in
Product Net Height89 mm
3.5 in
Product Net Depth / Length77.6 mm
3.1 in
Product Net Weight0.2 kg
0.4 lb
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width100 mm
3.9 in
Package Level 1 Depth / Length64 mm
2.5 in
Package Level 1 Height100 mm
3.9 in
Package Level 1 Gross Weight0.2 kg
0.4 lb
Package Level 1 EAN6417019526140
Technical
Cable Cross-Section2.5 ... 16 mm²
Conventional Free-air Thermal Current (Ith)Θ = 40 °C 45 A
Conventional Thermal Current (Ithe)Fully Enclosed 45 A
Degree of ProtectionFront IP20
Handle ColorBlack
Handle TypeKnob handle
Mounting TypeBase mounting, DIN-rail mounting
Number of Circuits1
Number of Poles3P
Operating ModeFront
Pollution Degree3
Position of Line TerminalsTop In - Bottom Out
Bottom In - Top Out
Positive Opening Operation Torque (Direct Opening Action)0.4 … 0.8 N·m
Power Lossat Rated Operating Conditions per Pole 0.5 W
Rated Impulse Withstand Voltage (Uimp)8 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Current DC-21B (Ie)(600 V) 36 A
(1000 V) 32 A
Rated Operational Voltage1000 V
Rated Short-Circuit Making Capacity (Icm)(1000 V DC) 0.8 kA
Rated Short-time Withstand Current Low Voltage (Icw)(1000 V DC) 0.8 kA
for 1 s 0.8 kA
Recommended Screw DriverMain Circuit Torx
Shaft Diameter6 mm
0.24 in
Special FunctionsNo
StandardsIEC 60947-1, -3
Switches Operating MechanismMechanism on Top of the Switch
Terminal TypeScrew Terminals
Tightening TorqueMain Circuit 1.2 … 1.4 N·m
UtilizationPhotovoltaic
Utilization CategorySwitching of resistive loads, including moderate overloads - occasional actuation (DC-21B)
Wire Stripping LengthMain Circuit 70 … 11 mm
Technical UL/CSA
Wire Stripping LengthMain Circuit 70 … 11 mm
Recommended Screw DriverMain Circuit Torx
Tightening TorqueMain Circuit 1.2 … 1.4 N·m
Certificates and Declarations
CCC CertificateCQC2012010302579872
Declaration of Conformity - CE1SCC301192D2704
Declaration of Conformity - UKCA1SCC301313D0201
DNV GL Certificate1SCC301231D0201
External Classifications and Standards
Object Classification CodeQ
ETIM 9EC000216 - Switch disconnector (low voltage)
ETIM 10EC004963 - Switch disconnector (DC)
eClassV11.1 : 27371403
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland)3601358
E-Number (Norway)4363635
E-Number (Sweden)3134023

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
