View larger
Images are for illustrative purposes only. Please refer to data sheet for details

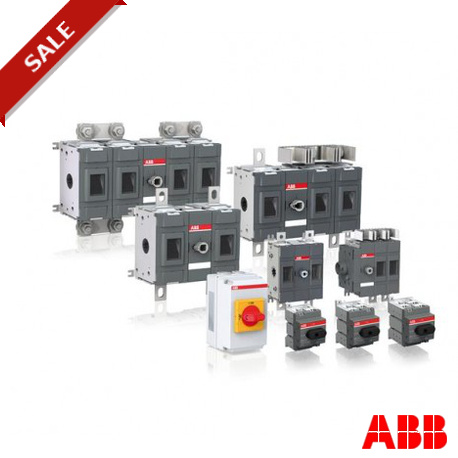

OTDC320UV12 1SCA142256R1001 ABB OTDC320UV12 PV Disconnect Switch
OTDC320UV12
1SCA142256R1001
ABB
1 Pcs.
OTDC320UV12 PV Disconnect Switch
DC disconnector switch OTDC320UV12
Connectors > Switch disconnector
Manual Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲OTDC320UV12 PV Disconnect Switch, Terminal bolt kit included, Handle and shaft need to be ordered separately, Base mounting, 1500 V pre-connected, UL 1000 VDC 320 A, UL 1500 VDC 320 A, IEC 1500 VDC 400 A
Ordering
- Minimum Order Quantity:
- 1 piece
- Customs Tariff Number:
- 85365080
Popular Downloads
- Data Sheet, Technical Information:
- 1SCC301021C0201
Dimensions
- Product Net Width:
- 266mm
- Product Net Height:
- 227mm
- Product Net Depth:
- 105mm
- Product Net Weight:
- 4,7kg
Technical
- Rated Operational Current DC-21B (Ie):
- (1500 V) 400 A
- Conventional Free-air Thermal Current (Ith):
- q = 40 °C 400 A
- Conventional Thermal Current (Ithe):
- Fully Enclosed 400 A
- Rated Impulse Withstand Voltage (Uimp):
- 12 kV
- Rated Insulation Voltage (Ui):
- 1500 V
- Rated Operational Voltage:
- 1500 V
- Rated Short-time Withstand Current (Icw):
- for 1 s 10 kiloampere rms
- Pollution Degree:
- 3
- Handle Type:
- Handle and shaft not included
- Switches Operating Mechanism:
- Mechanism Between the Poles
12 (Between the Poles)
- Operating Mode:
- Front Operated
- Standards:
- IEC&UL
- Special Functions:
- 1500 V pre-connected
- Mounting Type:
- Base mounting
- Number of Circuits:
- 1
- Number of Poles:
- 3
- Terminal Type:
- Lug terminals
Technical UL/CSA
- Ampere Rating UL/CSA:
- 1000 VDC 320 A
1500 VDC 320 A
Container Information
- Package Level 1 Gross Weight:
- 5.1 kg
- Package Level 1 EAN:
- 6417019697024
Classifications
- ETIM 5:
- EC000216 - Switch disconnector
- ETIM 6:
- EC000216 - Switch disconnector
