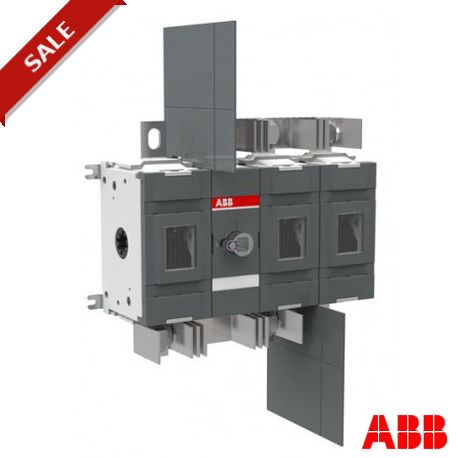

OTDC320USV12 1SCA140835R1001 ABB OTDC320USV12 PV Disconnect Switch
OTDC320USV12
1SCA140835R1001
ABB
1 Pcs.
Connectors > Switch disconnector
Manual Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Abb OTDC320USV12 PV Disconnect Switch functions as a robust direct current disconnector designed for photovoltaic and high-voltage DC installations to safely isolate circuits during maintenance or emergency situations. These specialized switches provide reliable load breaking and secure circuit interruption in demanding renewable energy power distribution networks. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Data Sheet, Technical Information: 1SCC301021C0201
- Rated Operational Current DC-21B (I e ): (1000 V) 400 A
- Conventional Free-air Thermal Current (I th ): q = 40 °C 400 A
- Conventional Thermal Current (I the ): Fully Enclosed 400 A
- Rated Impulse Withstand Voltage (U imp ): 12 kV
- Rated Insulation Voltage (U i ): 1500 V
- Rated Operational Voltage: 1500 V
- Rated Short-time Withstand Current (I cw ): for 1 s 10 kiloampere rms
- Pollution Degree: 3
- Handle Type: Handle and shaft not included
- Switches Operating Mechanism: Mechanism Between the Poles 12 (Between the Poles)
- Operating Mode: Front Operated
- Standards: IEC&UL
- Special Functions: US single-wire break
- Mounting Type: Base mounting
- Number of Circuits: 1
More info
▲OTDC320USV12 PV Disconnect Switch, Terminal bolt kit included, Handle and shaft need to be ordered separately, Base mounting, US single-wire break, UL 1000 VDC 320 A, UL 1500 VDC 320 A, IEC 1000 VDC 400 A
Ordering
- Minimum Order Quantity:
- 1 piece
- Customs Tariff Number:
- 85365080
Popular Downloads
- Data Sheet, Technical Information:
- 1SCC301021C0201
Dimensions
- Product Net Width:
- 266mm
- Product Net Height:
- 227mm
- Product Net Depth:
- 105mm
- Product Net Weight:
- 5,6kg
Technical
- Rated Operational Current DC-21B (Ie):
- (1000 V) 400 A
- Conventional Free-air Thermal Current (Ith):
- q = 40 °C 400 A
- Conventional Thermal Current (Ithe):
- Fully Enclosed 400 A
- Rated Impulse Withstand Voltage (Uimp):
- 12 kV
- Rated Insulation Voltage (Ui):
- 1500 V
- Rated Operational Voltage:
- 1500 V
- Rated Short-time Withstand Current (Icw):
- for 1 s 10 kiloampere rms
- Pollution Degree:
- 3
- Handle Type:
- Handle and shaft not included
- Switches Operating Mechanism:
- Mechanism Between the Poles
12 (Between the Poles)
- Operating Mode:
- Front Operated
- Standards:
- IEC&UL
- Special Functions:
- US single-wire break
- Mounting Type:
- Base mounting
- Number of Circuits:
- 1
- Number of Poles:
- 3
- Terminal Type:
- Lug terminals
Technical UL/CSA
- Ampere Rating UL/CSA:
- 1000 VDC 320 A
1500 VDC 320 A
Container Information
- Package Level 1 Gross Weight:
- 6.1 kg
- Package Level 1 EAN:
- 6417019686127
Classifications
- ETIM 5:
- EC000216 - Switch disconnector
- ETIM 6:
- EC000216 - Switch disconnector
