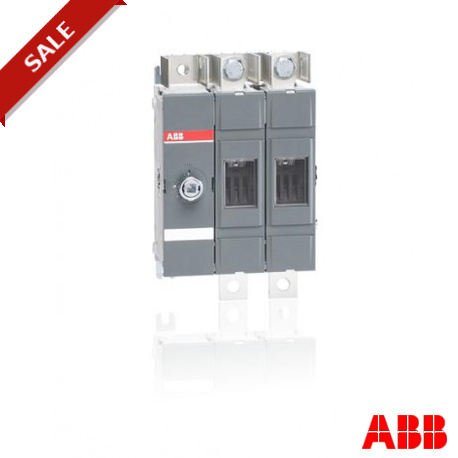

ABB OTDC200EV22 OTDC200EV22 1SCA149081R1001 ABB OTDC200EV22 DC Switch-disconnector View larger
Images are for illustrative purposes only. Please refer to data sheet for details

OTDC200EV22 1SCA149081R1001 ABB OTDC200EV22 DC Switch-disconnector

OTDC200EV22

1SCA149081R1001

ABB

1 Pcs.

OTDC200EV22 DC Switch-disconnector DC disconnector switch OTDC200EV22

Connectors > Switch disconnector
Manual Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Engineered by Abb, the OTDC200EV22 DC switch-disconnector provides reliable circuit interruption specifically tailored for photovoltaic and direct current distribution networks. DC disconnect switches are vital for isolating high-voltage solar arrays and industrial battery banks safely under load conditions. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Data Sheet, Technical Information: 1SCC301021C0201
  • Rated Operational Current DC-21B (I e ): (1000 V) 200 A (1500 V) 200 A
  • Conventional Thermal Current (I the ): Fully Enclosed 200 A
  • Rated Impulse Withstand Voltage (U imp ): 12 kV
  • Rated Insulation Voltage (U i ): 1500 V
  • Rated Operational Voltage: 1500 V
  • Power Loss: at Rated Operating Conditions per Pole 6 W
  • Pollution Degree: 3
  • Handle Type: Handle and shaft not included
  • Switches Operating Mechanism: 22 (Between the Poles)
  • Operating Mode: Front operated
  • Standards: IEC
  • Special Functions: 1500 V pre-connected
  • Mounting Type: Base mounting
  • Number of Circuits: 1
  • Number of Poles: 4

More info

▲

OTDC200EV22 DC Switch-disconnector, Handle and shaft not included, Base mounting, IEC 200 A 1000V and 200 A 1500V

Ordering

  • Minimum Order Quantity:
    1 piece
  • Customs Tariff Number:
    85365080

Popular Downloads

  • Data Sheet, Technical Information:
    1SCC301021C0201

Dimensions

  • Product Net Width:
    185.4mm
  • Product Net Height:
    210mm
  • Product Net Depth:
    90.5mm
  • Product Net Weight:
    2,25kg

Technical

  • Rated Operational Current DC-21B (Ie):
    (1000 V) 200 A
    (1500 V) 200 A
  • Conventional Thermal Current (Ithe):
    Fully Enclosed 200 A
  • Rated Impulse Withstand Voltage (Uimp):
    12 kV
  • Rated Insulation Voltage (Ui):
    1500 V
  • Rated Operational Voltage:
    1500 V
  • Power Loss:
    at Rated Operating Conditions per Pole 6 W
  • Pollution Degree:
    3
  • Handle Type:
    Handle and shaft not included
  • Switches Operating Mechanism:
    22 (Between the Poles)
  • Operating Mode:
    Front operated
  • Standards:
    IEC
  • Special Functions:
    1500 V pre-connected
  • Mounting Type:
    Base mounting
  • Number of Circuits:
    1
  • Number of Poles:
    4
  • Terminal Type:
    Lug terminals

Certificates and Declarations (Document Number)

  • Declaration of Conformity - CE:
    1SCC301201D2703
  • Instructions and Manuals:
    1SCA144401R1001

Container Information

  • Package Level 1 Units:
    1 piece
  • Package Level 1 Width:
    240 mm
  • Package Level 1 Length:
    270 mm
  • Package Level 1 Height:
    120 mm
  • Package Level 1 Gross Weight:
    2.5 kg
  • Package Level 1 EAN:
    6417019786872

Classifications

  • Object Classification Code:
    Q
  • ETIM 5:
    EC000216 - Switch disconnector
  • ETIM 6:
    EC000216 - Switch disconnector

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
