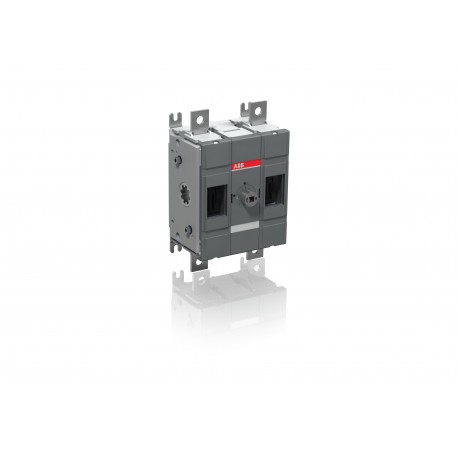

ABB 1SCA125626R1001 1SCA125626R1001 ABB OTDC200E11 DC Switch-disconnector View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SCA125626R1001 ABB OTDC200E11 DC Switch-disconnector

1SCA125626R1001

125626

ABB

1 Pcs.

OTDC200E11 DC Switch-disconnector DC disconnector switch OTDC200E11

Connectors > Switch disconnector
OTDC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

ABB part number 1SCA125626R1001 is a DC switch-disconnector specifically engineered to safely break direct current circuits in photovoltaic systems and industrial DC distributions. Such devices are essential for managing high-voltage direct current safely during servicing.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • ABB EcoSolutions: Yes
  • ABB Site Meeting Group Waste To Landfill Target: UL 2799 Zero Waste To Landfill Validation available
  • End Of Life Disassembling Instructions: 1SCC301114M0201
  • Environmental Information: NA
  • Environmental Product Declaration - EPD: 1SCC301248D0201
  • Recyclability Rate of the Product acc. to EN45555: Design for Closing Resource Loops - Standard EN45555 - 66,5 %
  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • REACH Declaration: 1SCC301240D0201
  • RoHS Declaration: 1SCC301239D0201
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Toxic Substances Control Act - TSCA: 1SCC301321D0201
  • Data Sheet, Technical Information: 1SCC301022C0201
  • Instructions and Manuals: 1SCC301081M0206
  • Mechanical Drawings: OTDC100_250E11.igs
  • Environmental Product Declaration - EPD: 1SCC301248D0201
  • Degree of Protection: Front IP20

More info

▲
ABB EcoSolutions
ABB EcoSolutionsYes
ABB Site Meeting Group Waste To Landfill TargetUL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions1SCC301114M0201
Environmental InformationNA
Environmental Product Declaration - EPD1SCC301248D0201
Improved Energy Efficiency for CustomersProduct Efficiency - Product considered more energy-efficient compared to similar product on market or older products from the same line
Recyclability Rate of the Product acc. to EN45555Design for Closing Resource Loops - Standard EN45555 - 66,5 %
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC301240D0201
RoHS Declaration1SCC301239D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA1SCC301321D0201
Popular Downloads
Data Sheet, Technical Information1SCC301022C0201
Instructions and Manuals1SCC301081M0206
Mechanical DrawingsOTDC100_250E11.igs
1SCC307007F0002
1SCC307008F0002
Environmental Product Declaration - EPD1SCC301248D0201
Environmental
Degree of ProtectionFront IP20
Environmental InformationNA
Pollution Degree3
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85363090
Country or Territory of OriginFinland
Dimensions
Product Frame SizeS1.0
Product Net Width115.5 mm
4.5 in
Product Net Height176 mm
6.9 in
Product Net Depth / Length84.5 mm
3.3 in
Product Net Weight1.2 kg
2.7 lb
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width96 mm
3.8 in
Package Level 1 Depth / Length160 mm
6.3 in
Package Level 1 Height244 mm
9.6 in
Package Level 1 Gross Weight1.4 kg
3 lb
Package Level 1 EAN6417019556710
Technical
Connection ConfigurationSingle circuit 2a, 2b
Conventional Free-air Thermal Current (Ith)Θ = 40 °C 200 A
Conventional Thermal Current (Ithe)Fully Enclosed 200 A
Degree of ProtectionFront IP20
Handle TypeHandle and shaft not included
Mounting TypeBase mounting
Number of Circuits1
Number of Poles2P
Operating ModeFront
Pollution Degree3
Position of Line TerminalsTop In - Bottom Out
Bottom In - Top Out
Positive Opening Operation Torque (Direct Opening Action)5 … 8 N·m
Power Lossat Rated Operating Conditions per Pole 6 W
Rated Impulse Withstand Voltage (Uimp)12 kV
Rated Insulation Voltage (Ui)1500 V
Rated Operational Current DC-21B (Ie)(1000 V) 200 A
Rated Operational Voltage1000 V
Rated Short-Circuit Making Capacity (Icm)(1000 V DC) 10 kA
Rated Short-time Withstand Current Low Voltage (Icw)(1000 V DC) 10 kA
for 1 s 5 kA
for 0.1 s 10 kA
Shaft Diameter6 mm
0.24 in
Special FunctionsNo
StandardsIEC 60947-1, -3
Switches Operating MechanismMechanism Between the Poles
11 (Between the Poles)
Terminal TypeLug terminals
Terminal Width19.5 mm
0.77 in
UtilizationPhotovoltaic
Utilization CategorySwitching of resistive loads, including moderate overloads - occasional actuation (DC-21B)
Certificates and Declarations
CCC CertificateCQC2013010302611671
Declaration of Conformity - CE1SCC301201D2703
Declaration of Conformity - UKCA1SCC301313D0201
DNV GL Certificate1SCC301231D0201
External Classifications and Standards
Object Classification CodeQ
ETIM 9EC000216 - Switch disconnector (low voltage)
ETIM 10EC004963 - Switch disconnector (DC)
UNSPSC39122233
eClassV11.1 : 27371403
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
