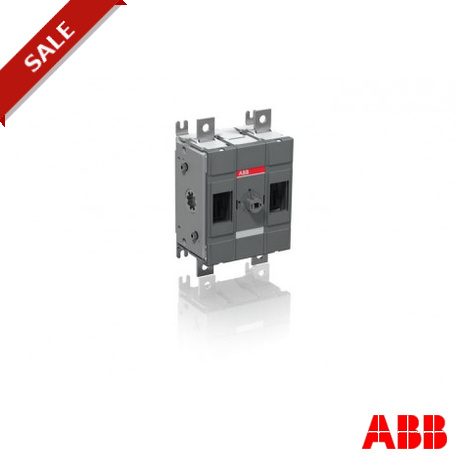

OTDC160EV22 1SCA149080R1001 ABB OTDC160EV22 DC Switch-disconnector
OTDC160EV22
1SCA149080R1001
ABB
1 Pcs.
OTDC160EV22 DC Switch-disconnector
DC disconnector switch OTDC160EV22
Connectors > Switch disconnector
Manual Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲OTDC160EV22 DC Switch-disconnector, Handle and shaft not included, Base mounting, IEC 160 A 1000V and 160 A 1500V
Ordering
- Minimum Order Quantity:
- 1 piece
- Customs Tariff Number:
- 85365080
Popular Downloads
- Data Sheet, Technical Information:
- 1SCC301021C0201
Dimensions
- Product Net Width:
- 185.4mm
- Product Net Height:
- 210mm
- Product Net Depth:
- 90.5mm
- Product Net Weight:
- 2,25kg
Technical
- Rated Operational Current DC-21B (Ie):
- (1000 V) 160 A
(1500 V) 160 A
- Conventional Thermal Current (Ithe):
- Fully Enclosed 160 A
- Rated Impulse Withstand Voltage (Uimp):
- 12 kV
- Rated Insulation Voltage (Ui):
- 1500 V
- Rated Operational Voltage:
- 1500 V
- Power Loss:
- at Rated Operating Conditions per Pole 4 W
- Pollution Degree:
- 3
- Handle Type:
- Handle and shaft not included
- Switches Operating Mechanism:
- 22 (Between the Poles)
- Operating Mode:
- Front operated
- Standards:
- IEC
- Special Functions:
- 1500 V pre-connected
- Mounting Type:
- Base mounting
- Number of Circuits:
- 1
- Number of Poles:
- 4
- Terminal Type:
- Lug terminals
Certificates and Declarations (Document Number)
- Declaration of Conformity - CE:
- 1SCC301201D2703
- Instructions and Manuals:
- 1SCA144401R1001
Container Information
- Package Level 1 Units:
- 1 piece
- Package Level 1 Width:
- 240 mm
- Package Level 1 Length:
- 270 mm
- Package Level 1 Height:
- 120 mm
- Package Level 1 Gross Weight:
- 2.5 kg
- Package Level 1 EAN:
- 6417019786865
Classifications
- Object Classification Code:
- Q
- ETIM 5:
- EC000216 - Switch disconnector
- ETIM 6:
- EC000216 - Switch disconnector
