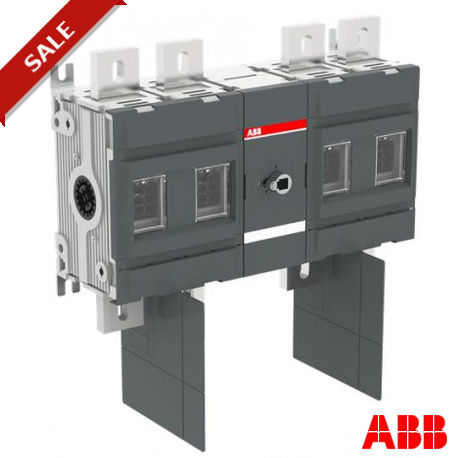

OTDC1000E22 1SCA142337R1001 ABB OTDC1000E22 DC Switch-disconnector
OTDC1000E22
1SCA142337R1001
ABB
1 Pcs.
Connectors > Switch disconnector
Manual Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
ABB part number OTDC1000E22 is a heavy-duty DC switch-disconnector engineered for high-voltage direct current power distribution and photovoltaic systems. DC disconnectors are essential for safely breaking high-amperage direct current circuits during maintenance, preventing dangerous electrical arcs in renewable energy setups.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Data Sheet, Technical Information: 1SCC301021C0201
- Rated Operational Current DC-21B (I e ): (1000 V) 1000 A
- Conventional Free-air Thermal Current (I th ): q = 40 °C 1000 A
- Conventional Thermal Current (I the ): Fully Enclosed 1000 A
- Rated Impulse Withstand Voltage (U imp ): 12 kV
- Rated Insulation Voltage (U i ): 1000 V
- Rated Operational Voltage: 1000 V
- Rated Short-time Withstand Current (I cw ): for 1 s 10 kiloampere rms
- Power Loss: 22 W
- Pollution Degree: 3
- Handle Type: Handle and shaft not included
- Switches Operating Mechanism: Mechanism Between the Poles 22 (Between the Poles)
- Operating Mode: Front Operated
- Standards: IEC
- Special Functions: No
- Mounting Type: Base mounting
More info
▲OTDC1000E22 DC Switch-disconnector, Terminal bolt kit included, Handle and shaft need to be ordered separately, Base mounting, IEC 1000 VDC 1000 A
Ordering
- Minimum Order Quantity:
- 1 piece
- Customs Tariff Number:
- 85365080
Popular Downloads
- Data Sheet, Technical Information:
- 1SCC301021C0201
Dimensions
- Product Net Width:
- 414.5mm
- Product Net Height:
- 372mm
- Product Net Depth:
- 146mm
- Product Net Weight:
- 19,5kg
Technical
- Rated Operational Current DC-21B (Ie):
- (1000 V) 1000 A
- Conventional Free-air Thermal Current (Ith):
- q = 40 °C 1000 A
- Conventional Thermal Current (Ithe):
- Fully Enclosed 1000 A
- Rated Impulse Withstand Voltage (Uimp):
- 12 kV
- Rated Insulation Voltage (Ui):
- 1000 V
- Rated Operational Voltage:
- 1000 V
- Rated Short-time Withstand Current (Icw):
- for 1 s 10 kiloampere rms
- Power Loss:
- 22 W
- Pollution Degree:
- 3
- Handle Type:
- Handle and shaft not included
- Switches Operating Mechanism:
- Mechanism Between the Poles
22 (Between the Poles)
- Operating Mode:
- Front Operated
- Standards:
- IEC
- Special Functions:
- No
- Mounting Type:
- Base mounting
- Number of Circuits:
- 2
- Number of Poles:
- 4
- Terminal Type:
- Lug terminals
Container Information
- Package Level 1 Gross Weight:
- 21 kg
- Package Level 1 EAN:
- 6417019698809
Classifications
- ETIM 5:
- EC000216 - Switch disconnector
- ETIM 6:
- EC000216 - Switch disconnector
