View larger
Images are for illustrative purposes only. Please refer to data sheet for details

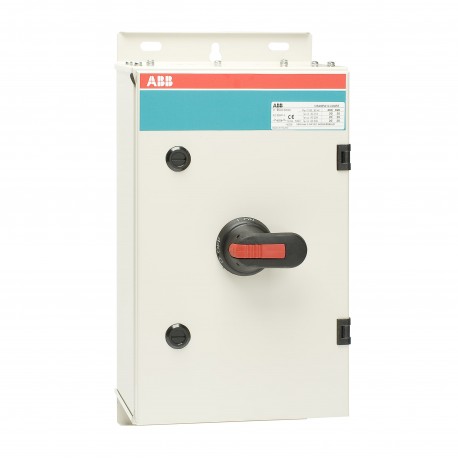

1SCA148210R1001 ABB OT90GTUU3TZ EMC safety switch
1SCA148210R1001
148210
ABB
1 Pcs.
OT90GTUU3TZ EMC safety switch
Int. Box Disconnector OT90GTUU3TZ
Connectors > Switch disconnector
Manual Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Material Compliance | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC340076D0201 |
| RoHS Declaration | 1SCC340075D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | f543515d-ff46-415f-b331-20fd5770da6b Finland |
| Simplified SCIP | 6b7ce499-3ab7-4efd-9bf1-b09fac82f048 Germany |
| d506e6af-92fd-4ad2-be99-8ce7aa06d01c Denmark | |
| f8f8425e-df73-44da-aa82-5625e0c437b8 Germany | |
| fb671267-fba6-448a-98ea-35f68782b406 Czech Republic | |
| 2c9a8476-1bca-4b25-8224-473d03dea7a0 Croatia | |
| 3777e7c4-fb0f-4d0b-a792-0df3fb31a9b7 Portugal | |
| d60b0058-fdfe-4fa1-9083-4e0ec387bdca Greece | |
| e6ec7177-24c1-4d90-ac41-bd38aef689c4 Estonia | |
| f7c793de-90ab-4dda-851a-608ad60597a3 Belgium | |
| 25bb2f62-5f0d-42dd-a05d-95c6caaa328f Hungary | |
| ff17a334-8197-493c-a824-274f0a9adf7f Sweden | |
| 0a569312-82f6-42bd-b2cc-d3575985f45c Bulgaria | |
| f4a022bd-3272-467f-9956-cd649f2f1568 Italy | |
| 796d6158-8853-4f9f-9d60-e7669ea47f4b Belgium | |
| c337692e-dab2-4e4c-877d-0c47f710ecda Poland | |
| 741955cb-cf54-4796-8901-041b81f5bbf1 Poland | |
| 2c1234f0-e282-44b2-8de8-a4f8f6cb8cdb France | |
| 8877b45b-f5f3-4317-8214-2664932e2d0d Germany | |
| 83ba536f-026e-4ada-9139-9f4d6cd720ef Germany | |
| 938174e8-8b11-4d5f-898d-3e73b5116b0f Sweden | |
| 532e7e67-0cc8-4973-9cd3-c0a0b4cf8bd7 Hungary | |
| 96dffc46-793d-4648-94a9-414b487ae33c Netherlands | |
| df45af84-b823-441b-b630-c611847f1d65 France | |
| 0f3b040a-55fa-4460-9077-4d898fa71eb9 Spain | |
| 05a93a02-a08e-4799-ba07-c69e287b51e0 Germany | |
| bfbae599-a9b5-4941-83dc-89c886c98cc3 Poland | |
| c001a96b-65c2-4e33-a3da-ac7e3757f04b Norway | |
| Toxic Substances Control Act - TSCA | 1SCC340095D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC340015C0201 |
| Instructions and Manuals | 1SCC340005M0007 |
| Mechanical Drawings | OTKM402518PBL.stp |
| Environmental | |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85363030 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 250 mm |
| Product Net Height | 400 mm |
| Product Net Depth / Length | 180 mm |
| Product Net Weight | 9.4 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 295 mm |
| Package Level 1 Depth / Length | 510 mm |
| Package Level 1 Height | 265 mm |
| Package Level 1 Gross Weight | 10.5 kg |
| Package Level 1 EAN | 6417019776019 |
| Technical | |
| Cable Cross-Section | 10 ... 70 mm² |
| Cable Entry Position | Top/Bottom |
| Cable Outlets Per Side | Blank /Blank, Knock-outs: 10mm, 12.5mm, 20.5mm, 25.5mm, 32.5mm, 40.5mm |
| Color | RAL7032 |
| Connecting Capacity Main Circuit | Screw Clamp 10 ... 70 mm² |
| Screw Clamp / PE Terminal 2pc,10 ... 70 mm² | |
| Conventional Thermal Current (Ithe) | Fully Enclosed 90 A |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Enclosure Material | Steel sheet |
| Enclosure Type | MSC |
| Handle Color | Black |
| Handle Type | Pistol handle |
| Impact Resistance Rating | Housing IK09 |
| Maximum Mounted Auxiliary Contacts | 2 NO, 2 NC |
| Mounted Auxiliary Contacts | 1 NO, 1 NC |
| Neutral Type | No Neutral Terminal |
| Number of Auxiliary Contacts NC | 1 |
| Number of Auxiliary Contacts NO | 1 |
| Number of Poles | 3P |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out |
| Rated Conditional Short-Circuit Current (Inc) | 24 kA |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 750 V |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 90 A |
| (500 V) 90 A | |
| (690 V) 90 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 90 A |
| (500 V) 90 A | |
| (690 V) 90 A | |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 45 kW |
| (500 V) 55 kW | |
| (690 V) 75 kW | |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V AC) 12 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 4 kA |
| Recommended Screw Driver | Main Circuit Hexagon 4 |
| Special Functions | EMC |
| Standards | IEC 60947-1, -3 |
| Terminal Type | Screw Terminals |
| Tightening Torque | Main Circuit 6 N·m |
| Wire Stripping Length | 20 mm |
| Technical UL/CSA | |
| Wire Stripping Length | 20 mm |
| Recommended Screw Driver | Main Circuit Hexagon 4 |
| Tightening Torque | Main Circuit 6 N·m |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SCC340002D2703 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122205 |
| IDEA Granular Category Code (IGCC) | 5166 >> Safety switch |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Finland) | 3640400 |
