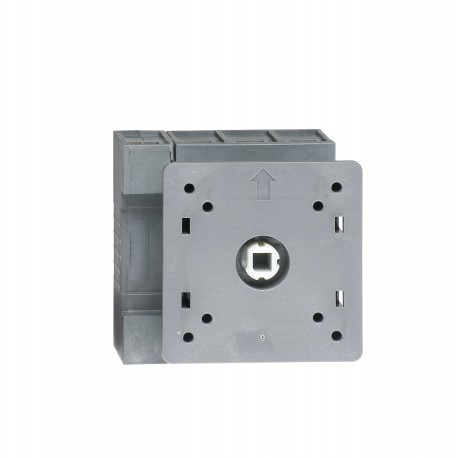

ABB 1SCA105499R1001 1SCA105499R1001 ABB OT80FT4N2 switch-disconnector View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SCA105499R1001 ABB OT80FT4N2 switch-disconnector

1SCA105499R1001

105499

ABB

1 Pcs.

OT80FT4N2 switch-disconnector OT80FT4N2 disconnect switch OT80FT4N2 SWITCH-DISCONNECTOR

Connectors > Switch disconnector
OT

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
Environmental Information1SCC301263D0201
Environmental Product Declaration - EPD1SCC301279D0201
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC011021D0201
RoHS Declaration1SCC011020D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA1SCC011025D0201
Popular Downloads
Data Sheet, Technical Information1SCC301020C0201
Instructions and Manuals1SCC301063M0006
Mechanical DrawingsOT63-80FT4N2
Environmental Product Declaration - EPD1SCC301279D0201
Environmental
Degree of ProtectionFront IP20
Environmental Information1SCC301263D0201
Pollution Degree3
Ordering
Minimum Order Quantity10 piece
Customs Tariff Number85365080
Country or Territory of OriginFinland
Dimensions
Product Net Width70 mm
Product Net Height72 mm
Product Net Depth / Length69 mm
Product Net Weight0.32 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width80 mm
Package Level 1 Depth / Length84 mm
Package Level 1 Height88 mm
Package Level 1 Gross Weight0.34 kg
Package Level 1 EAN6417019394589
Technical
Cable Cross-SectionCu 1.5 ... 35 mm²
Connecting Capacity Main CircuitFlexible with Ferrule 1x Cu 1.5…4 mm²
Solid 1x Cu 1.5…6 mm²
Flexible 1x Cu 1.5…35 mm²
Stranded 1x Cu 1.5…35 mm²
Conventional Free-air Thermal Current (Ith)Θ = 40 °C 80 A
Conventional Thermal Current (Ithe)Fully Enclosed 80 A
Degree of ProtectionFront IP20
Distance Between PhasesStandard
Fourth Pole PositionRight Side
Fourth Pole TypeSwitched - Simultaneous Function
Handle TypeHandle and shaft not included
Mechanical Durability20000
Mounting TypeDoor mounting
Number of Poles4P
Operating ModeFront
Pollution Degree3
Position of Line TerminalsTop In - Bottom Out
Bottom In - Top Out
Power Lossat Rated Operating Conditions per Pole 4.5 W
Rated Conditional Short-Circuit Current (Inc)(100 A fuse, ≤415 V) 50 kA
(100 A fuse, 500 V) 100 kA
(80 A fuse, 690 V) 50 kA
Rated Impulse Withstand Voltage (Uimp)8 kV
Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 750 V
Rated Operational Current AC-21A (Ie)(380 ... 415 V) 80 A
(500 V) 80 A
(690 V) 80 A
Rated Operational Current AC-22A (Ie)(380 ... 415 V) 80 A
(500 V) 80 A
(690 V) 80 A
Rated Operational Current AC-23A (Ie)(380 ... 415 V) 75 A
(500 V) 58 A
(690 V) 20 A
Rated Operational Power AC-23A (Pe)(220 ... 240 V) 22 kW
(400 ... 415 V) 37 kW
(500 V) 37 kW
(690 V) 18.5 kW
Rated Operational VoltageMain Circuit 750 V
Rated Short-Circuit Making Capacity (Icm)(690 V) 2.1 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 1.5 kA
Recommended Screw DriverMain Circuit Pozidriv 2
Special FunctionsNo
StandardsIEC 60947-3 / UL 508 / CSA C22.2 No. 14
Switches Operating MechanismMechanism on Top of the Switch
Terminal TypeScrew Terminals
Tightening Torqueacc. IEC 60947-1 2 N·m
Wire Stripping LengthMain Circuit 10-12 mm
Technical UL/CSA
Maximum Operating Voltage UL/CSA600 V
Ampere Rating80 A
Horsepower Rating UL/CSA(110 ... 120 V AC) Single Phase 2 Hp
(240 V AC) Single Phase 10 Hp
(440 ... 480 V AC) Single Phase 20 Hp
(550 ... 600 V AC) Single Phase 20 Hp
(220 ... 240 V AC) Three Phase 20 Hp
(440 ... 480 V AC) Three Phase 40 Hp
(550 ... 600 V AC) Three Phase 40 Hp
Wire Stripping LengthMain Circuit 10-12 mm
Recommended Screw DriverMain Circuit Pozidriv 2
Tightening Torqueacc. IEC 60947-1 2 N·m
Tightening Torque UL/CSA18 in·lb
Certificates and Declarations
A2L Certificate – IEC1SCC301335D0201
ATEX CertificateNo certification needed
Declaration of Conformity - CE1SCC301167D2704
UL CertificatecULus certificate OT16-80
VDE CertificateNo certification needed
External Classifications and Standards
Object Classification CodeQ
ETIM 9EC000216 - Switch disconnector (low voltage)
ETIM 10EC000216 - Switch disconnector (AC)
UNSPSC39122221
eClassV11.1 : 27371403
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland)3601467
E-Number (Norway)4363543
E-Number (Sweden)3171086
