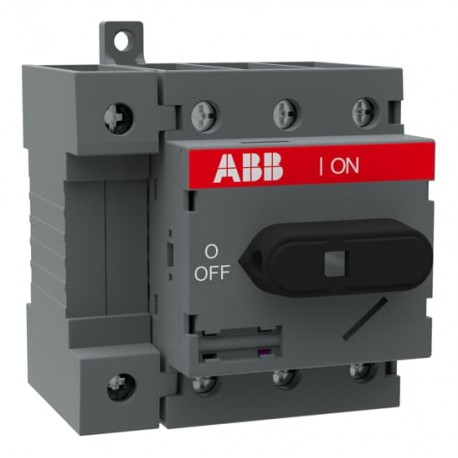

1SCA105419R1001 ABB Switch disconnector OT80F4N1
1SCA105419R1001
105419
ABB
1 Pcs.
Connectors > Switch disconnector
Manual Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An ABB 1SCA105419R1001 switch disconnector functions as a manual control device for safely disconnecting power lines within industrial automation panels. These compact switches provide reliable on-load breaking capability for commercial and factory electrical architectures.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Environmental Information: 1SCC301263D0201
- Environmental Product Declaration - EPD: 1SCC301279D0201
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 1SCC011021D0201
- RoHS Declaration: 1SCC011020D0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Toxic Substances Control Act - TSCA: 1SCC011025D0201
- Data Sheet, Technical Information: 1SCC301020C0201
- Instructions and Manuals: 1SCC301064M0212
- Mechanical Drawings: 1SCC301711F0001
- Environmental Product Declaration - EPD: 1SCC301279D0201
- Degree of Protection: Front IP20
- Environmental Information: 1SCC301263D0201
- Pollution Degree: 3
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85365080
More info
▲| ABB EcoSolutions | |
|---|---|
| Environmental Information | 1SCC301263D0201 |
| Environmental Product Declaration - EPD | 1SCC301279D0201 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC301020C0201 |
| Instructions and Manuals | 1SCC301064M0212 |
| Mechanical Drawings | 1SCC301711F0001 |
| 1SCC301710F0001 | |
| OT63-80F4N1.stp | |
| OT63-80F4N1.igs | |
| Environmental Product Declaration - EPD | 1SCC301279D0201 |
| Environmental | |
| Degree of Protection | Front IP20 |
| Environmental Information | 1SCC301263D0201 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 70 mm |
| Product Net Height | 91.5 mm |
| Product Net Depth / Length | 72.5 mm |
| Product Net Weight | 0.03 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 82 mm |
| Package Level 1 Depth / Length | 103 mm |
| Package Level 1 Height | 84 mm |
| Package Level 1 Gross Weight | 0.032 kg |
| Package Level 1 EAN | 6417019393544 |
| Technical | |
| Cable Cross-Section | Cu 1.5 ... 35 mm² |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 80 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 80 A |
| Degree of Protection | Front IP20 |
| Distance Between Phases | Standard |
| Fourth Pole Position | Left Side |
| Fourth Pole Type | Switched - Simultaneous Function |
| Handle Type | Knob |
| Handle and shaft not included | |
| Mechanical Durability | 20000 |
| Mounting Type | Base mounting |
| Number of Poles | 4P |
| Operating Mode | Front |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out |
| Bottom In - Top Out | |
| Power Loss | at Rated Operating Conditions per Pole 4.5 W |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 750 V |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 80 A |
| (500 V) 80 A | |
| (690 V) 80 A | |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 80 A |
| (500 V) 80 A | |
| (690 V) 80 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 75 A |
| (500 V) 58 A | |
| (690 V) 20 A | |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 22 kW |
| (400 ... 415 V) 37 kW | |
| (500 V) 37 kW | |
| (690 V) 18.5 kW | |
| Rated Operational Voltage | Main Circuit 750 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V) 2.1 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 1.5 kA |
| Special Functions | No |
| Standards | IEC 60947-3 / UL 508 / CSA C22.2 No. 14 |
| Switches Operating Mechanism | Mechanism on Top of the Switch |
| Terminal Type | Screw Terminals |
| Tightening Torque | acc. IEC 60947-1 2 N·m |
| Technical UL/CSA | |
| Maximum Operating Voltage UL/CSA | 600 V |
| Ampere Rating | 80 A |
| Horsepower Rating UL/CSA | (110 ... 120 V AC) Single Phase 2 Hp |
| (240 V AC) Single Phase 10 Hp | |
| (440 ... 480 V AC) Single Phase 20 Hp | |
| (550 ... 600 V AC) Single Phase 20 Hp | |
| (220 ... 240 V AC) Three Phase 20 Hp | |
| (440 ... 480 V AC) Three Phase 40 Hp | |
| (550 ... 600 V AC) Three Phase 40 Hp | |
| Tightening Torque | acc. IEC 60947-1 2 N·m |
| Tightening Torque UL/CSA | 18 in·lb |
| Certificates and Declarations | |
| A2L Certificate – IEC | 1SCC301335D0201 |
| Declaration of Conformity - CE | 1SCC301167D2704 |
| UL Certificate | cULus certificate OT16-80 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
