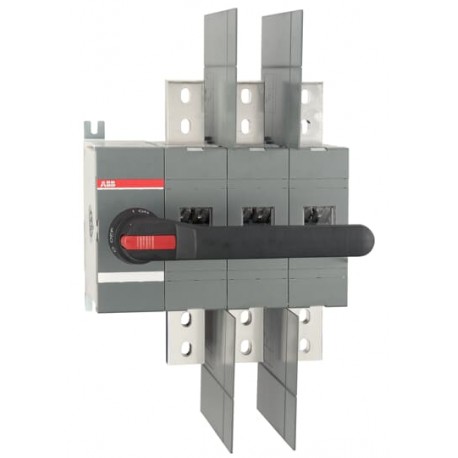

1SCA105665R1001 ABB Switch disconnector OT800U03P
1SCA105665R1001
105665
ABB
1 Pcs.
Connectors > Switch disconnector
Manual Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Abb 1SCA105665R1001 switch disconnector OT800U03P provides robust circuit isolation for high-capacity electrical systems and industrial machinery. Heavy-duty disconnect switches like this one are commonly implemented in main distribution boards to safely interrupt power loads.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- End of Life Instructions: 1SCC301120M0201
- Environmental Information: 1SCC301233D0201
- Environmental Product Declaration - EPD: 1SCC301300D0201
- REACH Declaration: 1SCC011021D0201
- RoHS Information: 1SCC011020D0201
- Toxic Substances Control Act - TSCA: 1SCC011025D0201
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85365080
- Country of Origin: Finland (FI)
- Data Sheet, Technical Information: 1SCC301020C0201
- Instructions and Manuals: 1SCC301047M0213
- Mechanical Drawings: 1SCC301502F0001
More info
▲| Circular Value | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| End of Life Instructions | 1SCC301120M0201 |
| Environmental Information | 1SCC301233D0201 |
| Environmental Product Declaration - EPD | 1SCC301300D0201 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Information | 1SCC011020D0201 |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| Eco Transparency | |
| Environmental Product Declaration - EPD | 1SCC301300D0201 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country of Origin | Finland (FI) |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC301020C0201 |
| Instructions and Manuals | 1SCC301047M0213 |
| Mechanical Drawings | 1SCC301502F0001 |
| 1SCC301501F0001 | |
| OT800-1200U03.stp | |
| OT1600E03.igs | |
| Environmental Product Declaration - EPD | 1SCC301300D0201 |
| End of Life Instructions | 1SCC301120M0201 |
| Dimensions | |
| Product Net Width | 334.5 mm |
| Product Net Height | 372 mm |
| Product Net Depth / Length | 151.5 mm |
| Product Net Weight | 15.7 kg |
| Technical | |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 1600 A |
| (500 V) 1600 A | |
| (690 V) 1600 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 1250 A |
| (500 V) 1250 A | |
| (690 V) 1250 A | |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 710 kW |
| (500 V) 900 kW | |
| (690 V) 1200 kW | |
| Conventional Thermal Current (Ithe) | Fully Enclosed 800 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V) 110 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 50 kA |
| Power Loss | at Rated Operating Conditions per Pole 29 W |
| Pollution Degree | 3 |
| Handle Color | Black |
| Handle Type | Handle and shaft included |
| Switches Operating Mechanism | Mechanism at the End of the Switch |
| 03 (Left Side) | |
| Distance Between Phases | Standard |
| Position of Line Terminals | Top In - Bottom Out |
| Bottom In - Top Out | |
| Operating Mode | Front operated |
| Standards | IEC 60947-3 / UL 98 / CSA C22.2 NO.4 |
| Special Functions | No |
| Mounting Type | Base mounting |
| Number of Poles | 3 |
| Degree of Protection | Front IP00 |
| Terminal Type | Lug terminals |
| Tightening Torque | acc. IEC 60947-1 56.5 N·m |
| Mechanical Durability | 6000 |
| Lock Type | Yes |
| Technical UL/CSA | |
| Maximum Operating Voltage UL/CSA | 600 V |
| Ampere Rating | 800 A |
| Horsepower Rating UL/CSA | (acc. to UL 240 V) 250 Hp |
| (acc. to UL 480 V) 500 Hp | |
| (acc. to UL 600 V) 500 Hp | |
| Tightening Torque | acc. IEC 60947-1 56.5 N·m |
| Environmental | |
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Environmental Information | 1SCC301233D0201 |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SCC301155D2704 |
| REACH Declaration | 1SCC011021D0201 |
| UL Certificate | cULus certificate OT800-1200 |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 400 mm |
| Package Level 1 Depth / Length | 435 mm |
| Package Level 1 Height | 170 mm |
| Package Level 1 Gross Weight | 18.5 kg |
| Package Level 1 EAN | 6417019395975 |
| Classifications | |
| Object Classification Code | Q |
| ETIM 7 | EC000216 - Switch disconnector |
| ETIM 8 | EC000216 - Switch disconnector |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5290 >> Disconnect switch |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Finland) | 3660862 |
