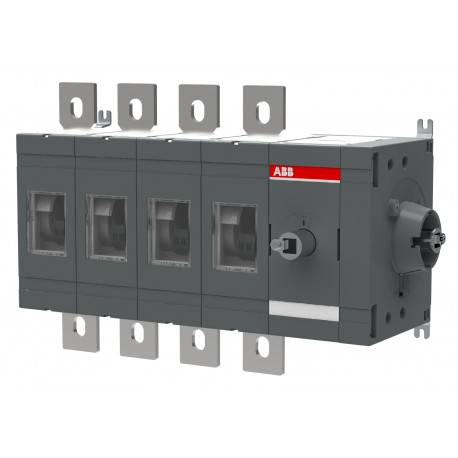

1SCA022870R6020 ABB Int. Section. control side OT800ES40
1SCA022870R6020
022870
ABB
1 Pcs.
Int. Section. control side OT800ES40
Int. Section. Side control OT800ES40
OT800ES40 SWITCH-DISCONNECTOR
Connectors > Switch disconnector
Manual Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Abb internal section control side component, part number 1SCA022870R6020, is an electrical accessory used alongside switch-disconnectors and modular switchgear assemblies to facilitate internal mechanical linkages and phase segregation. These parts help maintain proper enclosure integrity and structural alignment in complex industrial switchboards.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- End Of Life Disassembling Instructions: 1SCC301119M0201
- Environmental Information: 1SCC301232D0201
- Environmental Product Declaration - EPD: 1SCC301284D0201
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 1SCC011021D0201
- RoHS Declaration: 1SCC011020D0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Toxic Substances Control Act - TSCA: 1SCC011025D0201
- Data Sheet, Technical Information: 1SCC301020C0201
- Instructions and Manuals: 1SCC301071M0205
- Mechanical Drawings: 1SCC301682F0001
- Environmental Product Declaration - EPD: 1SCC301284D0201
- Degree of Protection: Front IP00
- Environmental Information: 1SCC301232D0201
- Pollution Degree: 3
- Minimum Order Quantity: 1 piece
More info
▲| ABB EcoSolutions | |
|---|---|
| End Of Life Disassembling Instructions | 1SCC301119M0201 |
| Environmental Information | 1SCC301232D0201 |
| Environmental Product Declaration - EPD | 1SCC301284D0201 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC301020C0201 |
| Instructions and Manuals | 1SCC301071M0205 |
| Mechanical Drawings | 1SCC301682F0001 |
| 1SCC301681F0001 | |
| Environmental Product Declaration - EPD | 1SCC301284D0201 |
| Environmental | |
| Degree of Protection | Front IP00 |
| Environmental Information | 1SCC301232D0201 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 381 mm |
| Product Net Height | 250 mm |
| Product Net Depth / Length | 130 mm |
| Product Net Weight | 8.5 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 270 mm |
| Package Level 1 Depth / Length | 420 mm |
| Package Level 1 Height | 220 mm |
| Package Level 1 Gross Weight | 9.2 kg |
| Package Level 1 EAN | 6417019337470 |
| Technical | |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 800 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 800 A |
| Degree of Protection | Front IP00 |
| Distance Between Phases | Standard |
| Fourth Pole Position | Right Side |
| Fourth Pole Type | Switched - Simultaneous Function |
| Handle Type | Handle and shaft not included |
| Mechanical Durability | 10000 |
| Mounting Type | Base mounting |
| Number of Poles | 4P |
| Operating Mode | Side |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out |
| Bottom In - Top Out | |
| Power Loss | at Rated Operating Conditions per Pole 40 W |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 800 A |
| (500 V) 800 A | |
| (690 V) 800 A | |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 800 A |
| (500 V) 800 A | |
| (690 V) 800 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 800 A |
| (500 V) 800 A | |
| (690 V) 800 A | |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 250 kW |
| (400 ... 415 V) 450 kW | |
| (500 V) 560 kW | |
| (690 V) 800 kW | |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V) 80 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 20 kA |
| Special Functions | No |
| Standards | IEC 60947-3 |
| Switches Operating Mechanism | Mechanism at the End of the Switch |
| 40 (Right Side) | |
| Terminal Type | Lug terminals |
| Tightening Torque | acc. IEC 60947-1 50 … 75 N·m |
| Technical UL/CSA | |
| Tightening Torque | acc. IEC 60947-1 50 … 75 N·m |
| Certificates and Declarations | |
| A2L Certificate – IEC | 1SCC301337D0201 |
| Declaration of Conformity - CE | 1SCC301140D2704 |
| DNV GL Certificate | 1SCC301184D0203 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122233 |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
