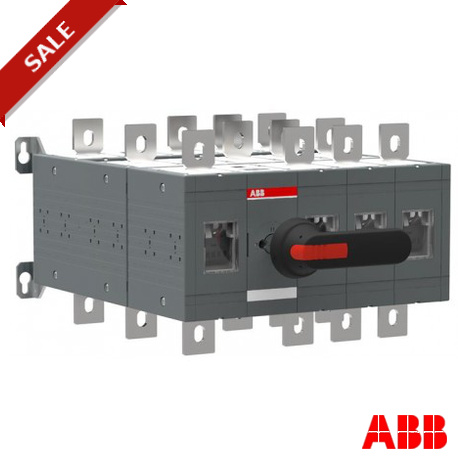

OT800E13YP 1SCA123598R1001 ABB OT800E13YP BY-PASS SWITCH
OT800E13YP
1SCA123598R1001
ABB
1 Pcs.
Connectors > Switch disconnector
Manual Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Engineered for high-capacity power distribution, the Abb OT800E13YP by-pass switch manages seamless electrical load transfers between primary and secondary circuits.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Data Sheet, Technical Information: 1SCC301020C0201
- Rated Operational Current AC-21A (I e ): (380 ... 415 V) 800 A (500 V) 800 A (690 V) 800 A
- Rated Operational Current AC-22A (I e ): (380 ... 415 V) 800 A (500 V) 800 A (690 V) 800 A
- Rated Operational Current AC-23A (I e ): (380 ... 415 V) 800 A (500 V) 800 A (690 V) 800 A
- Rated Operational Power AC-23A (P e ): (380 ... 415 V) 450 kW (500 V) 560 kW (690 V) 800 kW
- Conventional Free-air Thermal Current (I th ): q = 40 °C 800 A
- Conventional Thermal Current (I the ): Fully Enclosed 800 A
- Rated Impulse Withstand Voltage (U imp ): 12 kV
- Rated Insulation Voltage (U i ): 1000 V
- Rated Operational Voltage: 1000 V
- Rated Short-time Withstand Current (I cw ): for 1 s 20 kiloampere rms
- Power Loss: 40 W
- Pollution Degree: 3
- Handle Type: Handle and shaft included
- Fourth Pole Position: Right Side
- Fourth Pole Type: Switched - Simultaneous Function
More info
▲Including a black plastic IP65 I-0-II pistol type handle and a handle extension for enabling smooth manual operation, shaft and bolt set for the cable connection. The handle extension is snap-on mounted on the standard handle for manual operation. The handle extension shall be removed when padlocking the standard handle. Handle padlockable in the 0-position, door interlock in the I- and II-positions and when padlocked.
Ordering
- Minimum Order Quantity:
- 1 piece
- Customs Tariff Number:
- 85365080
Popular Downloads
- Data Sheet, Technical Information:
- 1SCC301020C0201
Dimensions
- Product Net Width:
- 380mm
- Product Net Height:
- 250mm
- Product Net Depth:
- 432mm
- Product Net Weight:
- 58.5kg
Technical
- Rated Operational Current AC-21A (Ie):
- (380 ... 415 V) 800 A
(500 V) 800 A
(690 V) 800 A
- Rated Operational Current AC-22A (Ie):
- (380 ... 415 V) 800 A
(500 V) 800 A
(690 V) 800 A
- Rated Operational Current AC-23A (Ie):
- (380 ... 415 V) 800 A
(500 V) 800 A
(690 V) 800 A
- Rated Operational Power AC-23A (Pe):
- (380 ... 415 V) 450 kW
(500 V) 560 kW
(690 V) 800 kW
- Conventional Free-air Thermal Current (Ith):
- q = 40 °C 800 A
- Conventional Thermal Current (Ithe):
- Fully Enclosed 800 A
- Rated Impulse Withstand Voltage (Uimp):
- 12 kV
- Rated Insulation Voltage (Ui):
- 1000 V
- Rated Operational Voltage:
- 1000 V
- Rated Short-time Withstand Current (Icw):
- for 1 s 20 kiloampere rms
- Power Loss:
- 40 W
- Pollution Degree:
- 3
- Handle Type:
- Handle and shaft included
- Fourth Pole Position:
- Right Side
- Fourth Pole Type:
- Switched - Simultaneous Function
- Switches Operating Mechanism:
- Mechanism Between the Poles
13 (Between the Poles)
- Distance Between Phases:
- Standard
- Position of Line Terminals:
- Top In - Bottom Out, Bottom In - Top Out
- Operating Mode:
- Front operated
- Mounting Type:
- Base mounting
- Number of Poles:
- 4
Certificates and Declarations (Document Number)
- Declaration of Conformity - CE:
- 1SCC301196D0202
- Instructions and Manuals:
- 1SCC301080M0003
Container Information
- Package Level 1 Units:
- 1 piece
- Package Level 1 Width:
- 420 mm
- Package Level 1 Length:
- 680 mm
- Package Level 1 Height:
- 440 mm
- Package Level 1 Gross Weight:
- 58.5 kg
- Package Level 1 EAN:
- 6417019543826
Classifications
- Object Classification Code:
- Q
- ETIM 5:
- EC000216 - Switch disconnector
- ETIM 6:
- EC000216 - Switch disconnector
