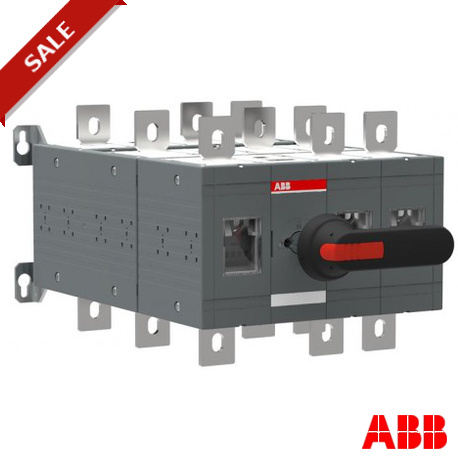

ABB OT800E12YP OT800E12YP 1SCA123595R1001 ABB OT800E12YP BY-PASS SWITCH View larger
Images are for illustrative purposes only. Please refer to data sheet for details

OT800E12YP 1SCA123595R1001 ABB OT800E12YP BY-PASS SWITCH

OT800E12YP

1SCA123595R1001

ABB

1 Pcs.

OT800E12YP BY-PASS SWITCH Manual Bypass Switch OT800E12YP

Connectors > Switch disconnector
Manual Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The ABB OT800E12YP by-pass switch is a heavy-duty manual switching device utilized to reroute electrical loads around primary equipment like UPS systems or transformers during servicing. Bypass configurations ensure continuous plant operations without interrupting power supply to critical loads. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Data Sheet, Technical Information: 1SCC303003C0201
  • Rated Operational Current AC-21A (I e ): (380 ... 415 V) 800 A (500 V) 800 A (690 V) 800 A
  • Rated Operational Current AC-22A (I e ): (380 ... 415 V) 800 A (500 V) 800 A (690 V) 800 A
  • Rated Operational Current AC-23A (I e ): (500 V) 800 A (380 ... 415 V) 800 A (690 V) 800 A
  • Rated Operational Power AC-23A (P e ): (380 ... 415 V) 450 kW (500 V) 560 kW (690 V) 800 kW
  • Conventional Free-air Thermal Current (I th ): q = 40 °C 800 A
  • Conventional Thermal Current (I the ): Fully Enclosed 800 A
  • Rated Impulse Withstand Voltage (U imp ): 12 kV
  • Rated Insulation Voltage (U i ): 1000 V
  • Rated Operational Voltage: 1000 V
  • Rated Short-time Withstand Current (I cw ): for 1 s 20 kiloampere rms
  • Power Loss: 40 W
  • Pollution Degree: 3
  • Handle Type: Handle and shaft included
  • Switches Operating Mechanism: Mechanism Between the Poles 12 (Between the Poles)
  • Distance Between Phases: Standard

More info

▲

OT800E12YP BY-PASS SWITCH, Handle and shaft included, Open transition

Ordering

  • Minimum Order Quantity:
    1 piece
  • Customs Tariff Number:
    85365080

Popular Downloads

  • Data Sheet, Technical Information:
    1SCC303003C0201

Dimensions

  • Product Net Width:
    315mm
  • Product Net Height:
    250mm
  • Product Net Depth:
    432mm
  • Product Net Weight:
    43.9kg
    315 lb

Technical

  • Rated Operational Current AC-21A (Ie):
    (380 ... 415 V) 800 A
    (500 V) 800 A
    (690 V) 800 A
  • Rated Operational Current AC-22A (Ie):
    (380 ... 415 V) 800 A
    (500 V) 800 A
    (690 V) 800 A
  • Rated Operational Current AC-23A (Ie):
    (500 V) 800 A
    (380 ... 415 V) 800 A
    (690 V) 800 A
  • Rated Operational Power AC-23A (Pe):
    (380 ... 415 V) 450 kW
    (500 V) 560 kW
    (690 V) 800 kW
  • Conventional Free-air Thermal Current (Ith):
    q = 40 °C 800 A
  • Conventional Thermal Current (Ithe):
    Fully Enclosed 800 A
  • Rated Impulse Withstand Voltage (Uimp):
    12 kV
  • Rated Insulation Voltage (Ui):
    1000 V
  • Rated Operational Voltage:
    1000 V
  • Rated Short-time Withstand Current (Icw):
    for 1 s 20 kiloampere rms
  • Power Loss:
    40 W
  • Pollution Degree:
    3
  • Handle Type:
    Handle and shaft included
  • Switches Operating Mechanism:
    Mechanism Between the Poles
    12 (Between the Poles)
  • Distance Between Phases:
    Standard
  • Position of Line Terminals:
    Top In - Bottom Out, Bottom In - Top Out
  • Number of Poles:
    3

Certificates and Declarations (Document Number)

  • Declaration of Conformity - CE:
    1SCC301196D0202
  • Instructions and Manuals:
    1SCC301080M0003

Container Information

  • Package Level 1 Units:
    1 piece
  • Package Level 1 Width:
    420 mm
  • Package Level 1 Length:
    680 mm
  • Package Level 1 Height:
    440 mm
  • Package Level 1 Gross Weight:
    43.9 kg
  • Package Level 1 EAN:
    6417019543796

Classifications

  • Object Classification Code:
    Q
  • ETIM 5:
    EC000216 - Switch disconnector
  • ETIM 6:
    EC000216 - Switch disconnector
