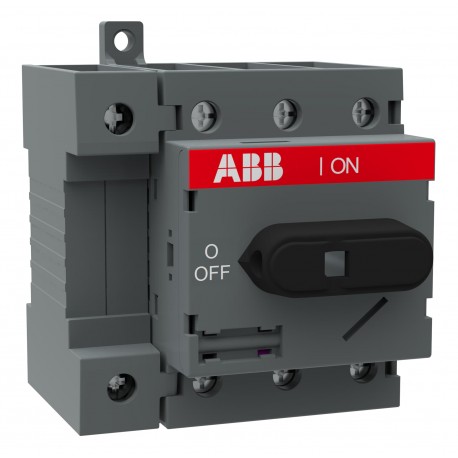

ABB 1SCA105370R1001 1SCA105370R1001 ABB Switch disconnector OT63F4N1 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SCA105370R1001 ABB Switch disconnector OT63F4N1

1SCA105370R1001

105370

ABB

1 Pcs.

Switch disconnector OT63F4N1 Disconnect switch OT63F4N1 OT63F4N1 SWITCH-DISCONNECTOR

Connectors > Switch disconnector
Manual Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
Environmental Information1SCC301263D0201
Environmental Product Declaration - EPD1SCC301279D0201
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC011021D0201
RoHS Declaration1SCC011020D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA1SCC011025D0201
Popular Downloads
Data Sheet, Technical Information1SCC301020C0201
Instructions and Manuals1SCC301064M0212
Mechanical Drawings1SCC301711F0001
1SCC301710F0001
OT63-80F4N1.stp
OT63-80F4N1.igs
Environmental Product Declaration - EPD1SCC301279D0201
Environmental
Degree of ProtectionFront IP20
Environmental Information1SCC301263D0201
Pollution Degree3
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85365080
Country or Territory of OriginFinland
Dimensions
Product Net Width70 mm
Product Net Height91.5 mm
Product Net Depth / Length72.5 mm
Product Net Weight0.31 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width84 mm
Package Level 1 Depth / Length103 mm
Package Level 1 Height82 mm
Package Level 1 Gross Weight0.32 kg
Package Level 1 EAN6417019393148
Technical
Cable Cross-SectionCu 1.5 ... 35 mm²
Conventional Free-air Thermal Current (Ith)Θ = 40 °C 63 A
Conventional Thermal Current (Ithe)Fully Enclosed 63 A
Degree of ProtectionFront IP20
Distance Between PhasesStandard
Fourth Pole PositionLeft Side
Fourth Pole TypeSwitched - Simultaneous Function
Handle TypeKnob
Handle and shaft not included
Mechanical Durability20000
Mounting TypeBase mounting
Number of Poles4P
Operating ModeFront
Pollution Degree3
Position of Line TerminalsTop In - Bottom Out
Bottom In - Top Out
Power Lossat Rated Operating Conditions per Pole 2.8 W
Rated Impulse Withstand Voltage (Uimp)8 kV
Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 750 V
Rated Operational Current AC-21A (Ie)(380 ... 415 V) 63 A
(500 V) 63 A
(690 V) 63 A
Rated Operational Current AC-22A (Ie)(380 ... 415 V) 63 A
(500 V) 63 A
(690 V) 63 A
Rated Operational Current AC-23A (Ie)(380 ... 415 V) 63 A
(500 V) 45 A
(690 V) 20 A
Rated Operational Power AC-23A (Pe)(220 ... 240 V) 11 kW
(400 ... 415 V) 22 kW
(500 V) 22 kW
(690 V) 15 kW
Rated Operational VoltageMain Circuit 750 V
Rated Short-Circuit Making Capacity (Icm)(690 V) 2.1 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 1.5 kA
Special FunctionsNo
StandardsIEC 60947-3 / UL 508 / CSA C22.2 No. 14
Switches Operating MechanismMechanism on Top of the Switch
Terminal TypeScrew Terminals
Tightening Torqueacc. IEC 60947-1 2 N·m
Technical UL/CSA
Maximum Operating Voltage UL/CSA600 V
Ampere Rating60 A
Horsepower Rating UL/CSA(110 ... 120 V AC) Single Phase 2 Hp
(240 V AC) Single Phase 7.5 Hp
(440 ... 480 V AC) Single Phase 15 Hp
(550 ... 600 V AC) Single Phase 15 Hp
(220 ... 240 V AC) Three Phase 15 Hp
(440 ... 480 V AC) Three Phase 30 Hp
(550 ... 600 V AC) Three Phase 30 Hp
Tightening Torqueacc. IEC 60947-1 2 N·m
Tightening Torque UL/CSA18 in·lb
Certificates and Declarations
A2L Certificate – IEC1SCC301335D0201
Declaration of Conformity - CE1SCC301167D2704
UL CertificatecULus certificate OT16-80
External Classifications and Standards
Object Classification CodeQ
ETIM 9EC000216 - Switch disconnector (low voltage)
ETIM 10EC000216 - Switch disconnector (AC)
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
