ABB 1SCA105338R1001 1SCA105338R1001 ABB OT63F3C CHANGE-OVER SWITCH View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SCA105338R1001 ABB OT63F3C CHANGE-OVER SWITCH

1SCA105338R1001

105338

ABB

1 Pcs.

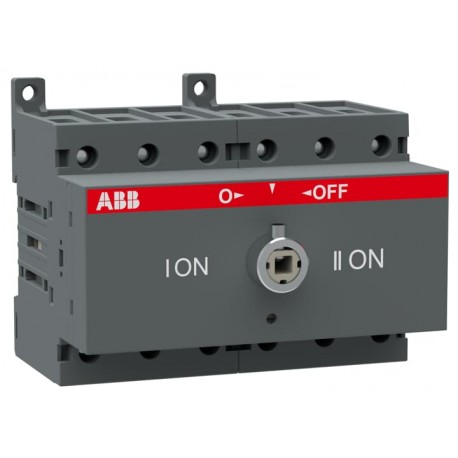

OT63F3C CHANGE-OVER SWITCH Switch OT63F3C

Connectors > Switch disconnector
OT_C

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An ABB change-over switch routes electrical currents between alternate source paths within industrial control panels and backup generation setups. These mechanical switching devices allow operators to safely transfer loads without risking arc flashes or system downtime.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Environmental Product Declaration - EPD: 1SCC301273D0201
  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • REACH Declaration: 1SCC011021D0201
  • RoHS Declaration: 1SCC011020D0201
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Data Sheet, Technical Information: 1SCC303003C0201
  • Instructions and Manuals: 1SCC301054M0006
  • Environmental Product Declaration - EPD: 1SCC301273D0201
  • Degree of Protection: Front IP20
  • Pollution Degree: 3
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85365080
  • Country or Territory of Origin: Finland
  • Product Net Width: 105 mm
  • Product Net Height: 92 mm
  • Product Net Depth / Length: 85 mm

More info

▲
ABB EcoSolutions
Environmental Product Declaration - EPD1SCC301273D0201
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC011021D0201
RoHS Declaration1SCC011020D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Popular Downloads
Data Sheet, Technical Information1SCC303003C0201
Instructions and Manuals1SCC301054M0006
Environmental Product Declaration - EPD1SCC301273D0201
Environmental
Degree of ProtectionFront IP20
Pollution Degree3
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85365080
Country or Territory of OriginFinland
Dimensions
Product Net Width105 mm
4.13 in
Product Net Height92 mm
3.62 in
Product Net Depth / Length85 mm
3.35 in
Product Net Weight0.64 kg
1.41 lb
Container Information
Package Level 1 Unitsbox 1 box
Package Level 1 Width102 mm
4.02 in
Package Level 1 Depth / Length205 mm
8.07 in
Package Level 1 Height103 mm
4.06 in
Package Level 1 Gross Weight0.64 kg
1.41 lb
Package Level 1 EAN6417019392974
Technical
Cable Cross-Section1.5 ... 35 mm²
Conventional Free-air Thermal Current (Ith)Θ = 40 °C 63 A
Conventional Thermal Current (Ithe)Fully Enclosed 63 A
Degree of ProtectionFront IP20
Distance Between PhasesStandard
Handle ColorBlack
Handle TypeHandle and shaft not included
Mounting TypeBase mounting
Number of Poles3P
Operating ModeFront
Pollution Degree3
Position of Line TerminalsTop In - Bottom Out, Bottom In - Top Out
Power Lossat Rated Operating Conditions per Pole 2.8 W
Rated Impulse Withstand Voltage (Uimp)8 kV
Rated Insulation Voltage (Ui)750 V
Rated Operational Current AC-21A (Ie)(380 ... 415 V) 63 A
(500 V) 63 A
(690 V) 63 A
Rated Operational Current AC-22A (Ie)(380 ... 415 V) 63 A
(500 V) 63 A
(690 V) 63 A
Rated Operational Current AC-23A (Ie)(380 ... 415 V) 63 A
(500 V) 45 A
(690 V) 20 A
Rated Operational Power AC-23A (Pe)(380 ... 415 V) 22 kW
(500 V) 15 kW
(690 V) 15 kW
Rated Operational VoltageMain Circuit 750 V
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 1 kiloampere rms
StandardsUL 98 / IEC60947-3
Switches Operating MechanismMechanism on Top of the Switch
Terminal TypeScrew Terminals
Tightening Torqueacc. IEC 60947-1 2 N·m
Transition TypeOpen
Technical UL/CSA
Horsepower Rating UL/CSA(acc. to UL 200 V) 15 Hp
(acc. to UL 208 V) 15 Hp
(acc. to UL 240 V) 15 Hp
(acc. to UL 480 V) 30 Hp
(acc. to UL 600 V) 30 Hp
Tightening Torqueacc. IEC 60947-1 2 N·m
Certificates and Declarations
Declaration of Conformity - CE1SCC303020D2702
DNV Certificate1SCC303138D0201
External Classifications and Standards
Object Classification CodeQ
ETIM 9EC000216 - Switch disconnector (low voltage)
ETIM 10EC000216 - Switch disconnector (AC)
UNSPSC39122233
IDEA Granular Category Code (IGCC)5290 >> Disconnect switch
eClassV11.1 : 27371403
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland)3601450
E-Number (Norway)4363554
E-Number (Sweden)3171263

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
