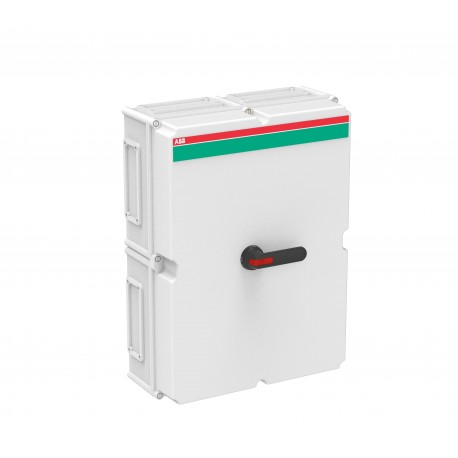

1SCA022584R5700 ABB Int. Disconnector in box OT630KFCC4B
1SCA022584R5700
022584
ABB
1 Pcs.
Int. Disconnector in box OT630KFCC4B
Int. Box disconnector OT630KFCC4B
OT630KFCC4B Enclosed Switch Disconnector
Connectors > Switch disconnector
Manual Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Material Compliance | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC340076D0201 |
| RoHS Declaration | 1SCC340075D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 1SCC340095D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC340015C0201 |
| Instructions and Manuals | 1SCC340015M0004 |
| Mechanical Drawings | OTPK765625P2II.stp |
| Environmental | |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85363090 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 560 mm |
| Product Net Height | 760 mm |
| Product Net Depth / Length | 250 mm |
| Product Net Weight | 17.83 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 575 mm |
| Package Level 1 Depth / Length | 780 mm |
| Package Level 1 Height | 340 mm |
| Package Level 1 Gross Weight | 20 kg |
| Package Level 1 EAN | 6417019188669 |
| Technical | |
| Cable Entry Position | Top/Bottom |
| Cable Outlets Per Side | 2xII-flange / 2xII-flange |
| Color | RAL7035 |
| Connecting Capacity Main Circuit | Hole Diameter 12 mm |
| Screw Clamp / PE Terminal 4pc,25 ... 120 mm² | |
| Conventional Thermal Current (Ithe) | Fully Enclosed 570 A |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Enclosure Material | Plastic |
| Handle Color | Black |
| Handle Type | Pistol handle |
| Impact Resistance Rating | Housing IK08 |
| Maximum Mounted Auxiliary Contacts | 2 NO, 2 NC |
| Mounted Auxiliary Contacts | 0 NO, 0 NC |
| Neutral Type | Switchable Neutral |
| Number of Auxiliary Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 0 |
| Number of Poles | 4P |
| Pollution Degree | 3 |
| Power Loss | at Rated Operating Conditions per Pole 25 W |
| Rated Conditional Short-Circuit Current (Inc) | 90 kA |
| Rated Insulation Voltage (Ui) | 750 V |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 570 A |
| (690 V) 570 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 570 A |
| (500 V) 570 A | |
| (690 V) 570 A | |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 315 kW |
| (500 V) 400 kW | |
| (690 V) 560 kW | |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (1000 V AC) 80 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 20 kA |
| Recommended Screw Driver | Main Circuit M12 |
| Standards | IEC 60947-1, -3 |
| Tightening Torque | Main Circuit 75 N·m |
| Technical UL/CSA | |
| Recommended Screw Driver | Main Circuit M12 |
| Tightening Torque | Main Circuit 75 N·m |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SCC340029D2704 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122205 |
| IDEA Granular Category Code (IGCC) | 5166 >> Safety switch |
| eClass | V11.1 : 27371403 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as maintenance-/service switch (EF006986) | Yes |
| Version as safety switch (EF006985) | No |
| Version as emergency stop installation (EF006959) | No |
| Version as reversing switch (EF009408) | No |
| Number of switches (EF005586) | 1 |
| Max. rated operation voltage Ue AC (EF007355) | 1000 V |
| Rated operating voltage (EF001435) | 1000 V |
| Rated permanent current Iu (EF001389) | 570 A |
| Rated permanent current at AC-23, 400 V (EF011777) | 570 A |
| Rated short-time withstand current lcw (EF007050) | 20 kA |
| Rated operation power at AC-23, 400 V (EF007027) | 315 kW |
| Switching power at 400 V (EF009166) | 315 kW |
| Number of poles (EF001391) | 4 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Motor drive optional (EF007386) | No |
| Motor drive integrated (EF006697) | No |
| Voltage release optional (EF007491) | No |
| Device construction (EF008240) | Complete device in housing |
| Suitable for front mounting 4-hole (EF007247) | No |
| Suitable for front mounting centre (EF007248) | No |
| Suitable for distribution board installation (EF007262) | Yes |
| Colour control element (EF007167) | Black |
| Type of control element (EF006976) | Long turning handle |
| Interlockable (EF006281) | Yes |
| Degree of protection (IP), front side (EF003118) | IP65 |
| Degree of protection (NEMA) (EF011959) | Other |
