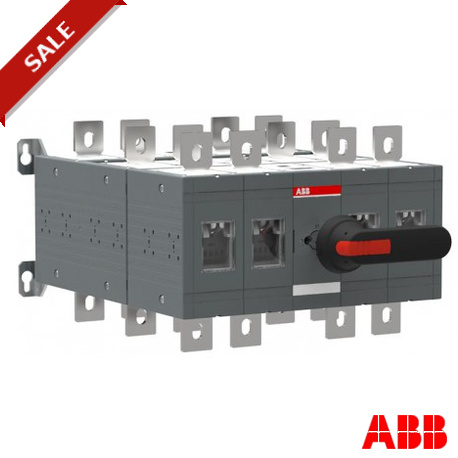

ABB OT630E22YP OT630E22YP 1SCA123597R1001 ABB OT630E22YP BY-PASS SWITCH View larger
Images are for illustrative purposes only. Please refer to data sheet for details

OT630E22YP 1SCA123597R1001 ABB OT630E22YP BY-PASS SWITCH

OT630E22YP

1SCA123597R1001

ABB

1 Pcs.

OT630E22YP BY-PASS SWITCH Manual Bypass Switch OT630E22YP

Connectors > Switch disconnector
Manual Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Including a black plastic IP65 I-0-II pistol type handle and a handle extension for enabling smooth manual operation, shaft and bolt set for the cable connection. The handle extension is snap-on mounted on the standard handle for manual operation. The handle extension shall be removed when padlocking the standard handle. Handle padlockable in the 0-position, door interlock in the I- and II-positions and when padlocked.

Ordering

  • Minimum Order Quantity:
    1 piece
  • Customs Tariff Number:
    85365080

Popular Downloads

  • Data Sheet, Technical Information:
    1SCC303003C0201

Dimensions

  • Product Net Width:
    380mm
  • Product Net Height:
    250mm
  • Product Net Depth:
    432mm
  • Product Net Weight:
    58.5kg

Technical

  • Rated Operational Current AC-21A (Ie):
    (380 ... 415 V) 630 A
    (500 V) 630 A
    (690 V) 630 A
  • Rated Operational Current AC-22A (Ie):
    (380 ... 415 V) 630 A
    (500 V) 630 A
    (690 V) 630 A
  • Rated Operational Current AC-23A (Ie):
    (380 ... 415 V) 630 A
    (500 V) 630 A
    (690 V) 630 A
  • Rated Operational Power AC-23A (Pe):
    (380 ... 415 V) 355 kW
    (500 V) 400 kW
    (690 V) 630 kW
  • Conventional Free-air Thermal Current (Ith):
    q = 40 °C 630 A
  • Conventional Thermal Current (Ithe):
    Fully Enclosed 630 A
  • Rated Impulse Withstand Voltage (Uimp):
    12 kV
  • Rated Insulation Voltage (Ui):
    1000 V
  • Rated Operational Voltage:
    1000 V
  • Rated Short-time Withstand Current (Icw):
    for 1 s 20 kiloampere rms
  • Power Loss:
    25 W
  • Pollution Degree:
    3
  • Handle Type:
    Handle and shaft included
  • Fourth Pole Position:
    Right Side
  • Fourth Pole Type:
    Switched - Simultaneous Function
  • Switches Operating Mechanism:
    Mechanism Between the Poles
    22 (Between the Poles)
  • Distance Between Phases:
    Standard
  • Position of Line Terminals:
    Top In - Bottom Out, Bottom In - Top Out
  • Operating Mode:
    Front operated
  • Mounting Type:
    Base mounting
  • Number of Poles:
    4

Certificates and Declarations (Document Number)

  • Declaration of Conformity - CE:
    1SCC301196D0202
  • Instructions and Manuals:
    1SCC301080M0003

Container Information

  • Package Level 1 Units:
    1 piece
  • Package Level 1 Width:
    420 mm
  • Package Level 1 Length:
    680 mm
  • Package Level 1 Height:
    440 mm
  • Package Level 1 Gross Weight:
    58.5 kg
  • Package Level 1 EAN:
    6417019543819

Classifications

  • Object Classification Code:
    Q
  • ETIM 5:
    EC000216 - Switch disconnector
  • ETIM 6:
    EC000216 - Switch disconnector

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
