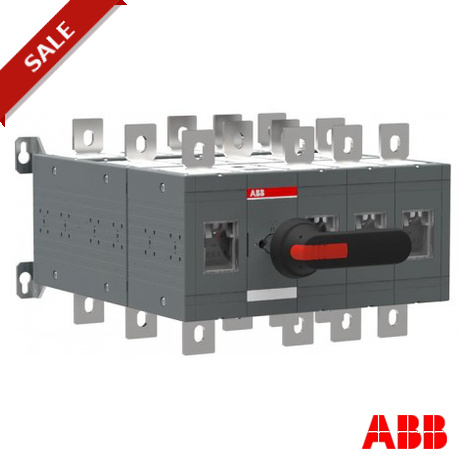

ABB OT630E13YP OT630E13YP 1SCA123599R1001 ABB OT630E13YP BY-PASS SWITCH View larger
Images are for illustrative purposes only. Please refer to data sheet for details

OT630E13YP 1SCA123599R1001 ABB OT630E13YP BY-PASS SWITCH

OT630E13YP

1SCA123599R1001

ABB

1 Pcs.

OT630E13YP BY-PASS SWITCH Manual Bypass Switch OT630E13YP

Connectors > Switch disconnector
Manual Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An ABB OT630E13YP by-pass switch is a specialized high-capacity switching device designed to route power around critical system components like UPS units during maintenance. These bypass configurations ensure continuous power delivery to loads without causing facility downtime. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Data Sheet, Technical Information: 1SCC303003C0201
  • Rated Operational Current AC-21A (I e ): (380 ... 415 V) 630 A (500 V) 630 A (690 V) 630 A
  • Rated Operational Current AC-22A (I e ): (380 ... 415 V) 630 A (500 V) 630 A (690 V) 630 A
  • Rated Operational Current AC-23A (I e ): (380 ... 415 V) 630 A (500 V) 630 A (690 V) 630 A
  • Rated Operational Power AC-23A (P e ): (380 ... 415 V) 355 kW (500 V) 400 kW (690 V) 630 kW
  • Conventional Free-air Thermal Current (I th ): q = 40 °C 630 A
  • Conventional Thermal Current (I the ): Fully Enclosed 630 A
  • Rated Impulse Withstand Voltage (U imp ): 12 kV
  • Rated Insulation Voltage (U i ): 1000 V
  • Rated Operational Voltage: 1000 V
  • Rated Short-time Withstand Current (I cw ): for 1 s 20 kiloampere rms
  • Power Loss: 25 W
  • Pollution Degree: 3
  • Handle Type: Handle and shaft included
  • Fourth Pole Position: Right Side
  • Fourth Pole Type: Switched - Simultaneous Function

More info

▲

Including a black plastic IP65 I-0-II pistol type handle and a handle extension for enabling smooth manual operation, shaft and bolt set for the cable connection. The handle extension is snap-on mounted on the standard handle for manual operation. The handle extension shall be removed when padlocking the standard handle. Handle padlockable in the 0-position, door interlock in the I- and II-positions and when padlocked.

Ordering

  • Minimum Order Quantity:
    1 piece
  • Customs Tariff Number:
    85365080

Popular Downloads

  • Data Sheet, Technical Information:
    1SCC303003C0201

Dimensions

  • Product Net Width:
    380mm
  • Product Net Height:
    250mm
  • Product Net Depth:
    432mm
  • Product Net Weight:
    58.5kg

Technical

  • Rated Operational Current AC-21A (Ie):
    (380 ... 415 V) 630 A
    (500 V) 630 A
    (690 V) 630 A
  • Rated Operational Current AC-22A (Ie):
    (380 ... 415 V) 630 A
    (500 V) 630 A
    (690 V) 630 A
  • Rated Operational Current AC-23A (Ie):
    (380 ... 415 V) 630 A
    (500 V) 630 A
    (690 V) 630 A
  • Rated Operational Power AC-23A (Pe):
    (380 ... 415 V) 355 kW
    (500 V) 400 kW
    (690 V) 630 kW
  • Conventional Free-air Thermal Current (Ith):
    q = 40 °C 630 A
  • Conventional Thermal Current (Ithe):
    Fully Enclosed 630 A
  • Rated Impulse Withstand Voltage (Uimp):
    12 kV
  • Rated Insulation Voltage (Ui):
    1000 V
  • Rated Operational Voltage:
    1000 V
  • Rated Short-time Withstand Current (Icw):
    for 1 s 20 kiloampere rms
  • Power Loss:
    25 W
  • Pollution Degree:
    3
  • Handle Type:
    Handle and shaft included
  • Fourth Pole Position:
    Right Side
  • Fourth Pole Type:
    Switched - Simultaneous Function
  • Switches Operating Mechanism:
    Mechanism Between the Poles
    13 (Between the Poles)
  • Distance Between Phases:
    Standard
  • Position of Line Terminals:
    Top In - Bottom Out, Bottom In - Top Out
  • Operating Mode:
    Front operated
  • Mounting Type:
    Base mounting
  • Number of Poles:
    4

Certificates and Declarations (Document Number)

  • Declaration of Conformity - CE:
    1SCC301196D0202
  • Instructions and Manuals:
    1SCC301080M0003

Container Information

  • Package Level 1 Units:
    1 piece
  • Package Level 1 Width:
    420 mm
  • Package Level 1 Length:
    680 mm
  • Package Level 1 Height:
    440 mm
  • Package Level 1 Gross Weight:
    58.5 kg
  • Package Level 1 EAN:
    6417019543833

Classifications

  • Object Classification Code:
    Q
  • ETIM 5:
    EC000216 - Switch disconnector
  • ETIM 6:
    EC000216 - Switch disconnector
