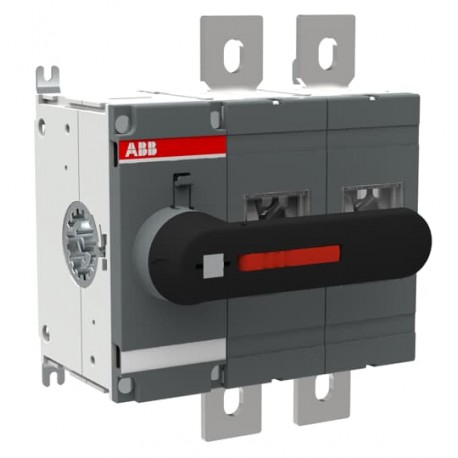

ABB 1SCA105586R1001 1SCA105586R1001 ABB Switch disconnector OT630E02K View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SCA105586R1001 ABB Switch disconnector OT630E02K

1SCA105586R1001

105586

ABB

1 Pcs.

Switch disconnector OT630E02K OT630E02K disconnect switch OT630E02K SWITCH-DISCONNECTOR

Connectors > Switch disconnector
Manual Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Heavy-duty switch disconnectors are essential components in electrical distribution infrastructure, used to safely isolate high-current distribution boards and industrial motor control centers under load. The Abb 1SCA105586R1001 Switch disconnector OT630E02K delivers reliable performance for high-amperage applications. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • End Of Life Disassembling Instructions: 1SCC301119M0201
  • Environmental Information: 1SCC301232D0201
  • Environmental Product Declaration - EPD: 1SCC301284D0201
  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • REACH Declaration: 1SCC011021D0201
  • RoHS Declaration: 1SCC011020D0201
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Toxic Substances Control Act - TSCA: 1SCC011025D0201
  • Data Sheet, Technical Information: 1SCC301020C0201
  • Instructions and Manuals: 1SCC301042M0211
  • Environmental Product Declaration - EPD: 1SCC301284D0201
  • Degree of Protection: Front IP00
  • Environmental Information: 1SCC301232D0201
  • Pollution Degree: 3
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85365080

More info

▲
ABB EcoSolutions
End Of Life Disassembling Instructions1SCC301119M0201
Environmental Information1SCC301232D0201
Environmental Product Declaration - EPD1SCC301284D0201
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC011021D0201
RoHS Declaration1SCC011020D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA1SCC011025D0201
Popular Downloads
Data Sheet, Technical Information1SCC301020C0201
Instructions and Manuals1SCC301042M0211
Environmental Product Declaration - EPD1SCC301284D0201
Environmental
Degree of ProtectionFront IP00
Environmental Information1SCC301232D0201
Pollution Degree3
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85365080
Country or Territory of OriginFinland
Dimensions
Product Net Width201 mm
Product Net Height250 mm
Product Net Depth / Length157 mm
Product Net Weight4.8 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width365 mm
Package Level 1 Depth / Length360 mm
Package Level 1 Height175 mm
Package Level 1 Gross Weight5.9 kg
Package Level 1 EAN6417019395425
Technical
Conventional Free-air Thermal Current (Ith)Θ = 40 °C 630 A
Conventional Thermal Current (Ithe)Fully Enclosed 630 A
Degree of ProtectionFront IP00
Distance Between PhasesStandard
Handle ColorBlack
Handle TypeDirect mounted pistol type handle
Mechanical Durability10000
Mounting TypeBase mounting
Number of Poles2P
Operating ModeFront
Pollution Degree3
Position of Line TerminalsTop In - Bottom Out
Bottom In - Top Out
Power Lossat Rated Operating Conditions per Pole 25 W
Rated Impulse Withstand Voltage (Uimp)12 kV
Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 1000 V
Rated Operational Current AC-21A (Ie)(380 ... 415 V) 630 A
(500 V) 630 A
(690 V) 630 A
(1000 V) 630 A
Rated Operational Current AC-22A (Ie)(380 ... 415 V) 630 A
(500 V) 630 A
(690 V) 630 A
Rated Operational Current AC-23A (Ie)(380 ... 415 V) 630 A
(500 V) 630 A
(690 V) 630 A
Rated Operational Power AC-23A (Pe)(220 ... 240 V) 200 kW
(400 ... 415 V) 355 kW
(500 V) 400 kW
(690 V) 630 kW
Rated Operational VoltageMain Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm)(690 V) 80 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 20 kA
Special FunctionsNo
StandardsIEC 60947-3
Switches Operating MechanismMechanism at the End of the Switch
02 (Left Side)
Terminal TypeLug terminals
Tightening Torqueacc. IEC 60947-1 50 … 75 N·m
Technical UL/CSA
Tightening Torqueacc. IEC 60947-1 50 … 75 N·m
Certificates and Declarations
A2L Certificate – IEC1SCC301337D0201
Declaration of Conformity - CE1SCC301140D2704
DNV GL Certificate1SCC301184D0203
External Classifications and Standards
Object Classification CodeQ
ETIM 9EC000216 - Switch disconnector (low voltage)
ETIM 10EC000216 - Switch disconnector (AC)
eClassV11.1 : 27371403
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
