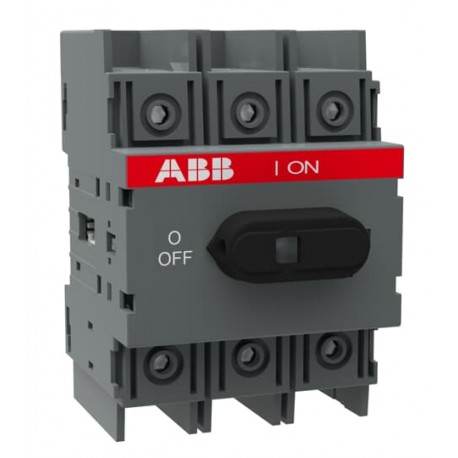

1SCA105076R1001 ABB Switch disconnector OT60F3 UL
1SCA105076R1001
105076
ABB
1 Pcs.
Connectors > Switch disconnector
Manual Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The 1SCA105076R1001 ABB Switch disconnector OT60F3 UL functions as a compact component designed for safe manual load interruption in control panels. Panel builders integrate switch disconnectors to establish a visible break point in electrical feeds, ensuring compliance with safety standards during equipment servicing.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Environmental Information: 1SCC301154D0202
- Environmental Product Declaration - EPD: 1SCC301280D0201
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 1SCC011021D0201
- RoHS Declaration: 1SCC011020D0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Toxic Substances Control Act - TSCA: 1SCC011025D0201
- Data Sheet, Technical Information: 1SCC301020C0201
- Instructions and Manuals: 1SCC301060M0004
- Mechanical Drawings: 1SCC307713F0001
- Environmental Product Declaration - EPD: 1SCC301280D0201
- Degree of Protection: Front IP20
- Environmental Information: 1SCC301154D0202
- Pollution Degree: 3
- Minimum Order Quantity: 10 piece
- Customs Tariff Number: 85353010
More info
▲| ABB EcoSolutions | |
|---|---|
| Environmental Information | 1SCC301154D0202 |
| Environmental Product Declaration - EPD | 1SCC301280D0201 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC301020C0201 |
| Instructions and Manuals | 1SCC301060M0004 |
| Mechanical Drawings | 1SCC307713F0001 |
| 1SCC307712F0001 | |
| OT30-60F3.stp | |
| OT30-60F3.igs | |
| Environmental Product Declaration - EPD | 1SCC301280D0201 |
| Environmental | |
| Degree of Protection | Front IP20 |
| Environmental Information | 1SCC301154D0202 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 85365080 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 70 mm |
| Product Net Height | 100 mm |
| Product Net Depth / Length | 74 mm |
| Product Net Weight | 0.36 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 81 mm |
| Package Level 1 Depth / Length | 112 mm |
| Package Level 1 Height | 86 mm |
| Package Level 1 Gross Weight | 0.39 kg |
| Package Level 1 EAN | 6417019392066 |
| Technical | |
| Cable Cross-Section | Cu 2.5 ... 25 mm² |
| Connecting Capacity Main Circuit | Flexible 1x Cu 2.5…25 mm² |
| Stranded 1x Cu 2.5…25 mm² | |
| Degree of Protection | Front IP20 |
| Distance Between Phases | Standard |
| Handle Type | Knob |
| Handle and shaft not included | |
| Mechanical Durability | 20000 |
| Mounting Type | Base mounting |
| Number of Poles | 3P |
| Operating Mode | Front |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out |
| Bottom In - Top Out | |
| Power Loss | at Rated Operating Conditions per Pole 1.6 W |
| Rated Conditional Short-Circuit Current (Inc) | (125 A fuse, 415 V) 50 kA |
| (125 A fuse, 690 V) 10 kA | |
| (63 A fuse, 690 V) 50 kA | |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 750 V |
| Rated Operational Current AC-21A (Ie) | (500 V) 63 A |
| (380 ... 415 V) 63 A | |
| (690 V) 63 A | |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 63 A |
| (500 V) 63 A | |
| (690 V) 63 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 63 A |
| (500 V) 63 A | |
| (690 V) 40 A | |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 37 kW |
| (500 V) 37 kW | |
| (690 V) 37 kW | |
| Rated Operational Voltage | Main Circuit 750 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V) 3.6 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 2.5 kA |
| Recommended Screw Driver | Main Circuit Hexagon 4 |
| Special Functions | No |
| Standards | IEC 60947-3 / UL 98 / CSA C22.2 NO.4 |
| Switches Operating Mechanism | Mechanism on Top of the Switch |
| Terminal Type | Screw Terminals |
| Tightening Torque | acc. IEC 60947-1 6.2 N·m |
| Wire Stripping Length | Main Circuit 17-18 mm |
| Technical UL/CSA | |
| Maximum Operating Voltage UL/CSA | 600 V |
| Ampere Rating | 60 A |
| Horsepower Rating UL/CSA | (110 ... 120 V AC) Single Phase 3 Hp |
| (240 V AC) Single Phase 7.5 Hp | |
| (220 ... 240 V AC) Three Phase 20 Hp | |
| (440 ... 480 V AC) Three Phase 40 Hp | |
| (550 ... 600 V AC) Three Phase 40 Hp | |
| Wire Stripping Length | Main Circuit 17-18 mm |
| Recommended Screw Driver | Main Circuit Hexagon 4 |
| Tightening Torque | acc. IEC 60947-1 6.2 N·m |
| Tightening Torque UL/CSA | 55 in·lb |
| Certificates and Declarations | |
| A2L Certificate – IEC | 1SCC301335D0201 |
| ATEX Certificate | No certification needed |
| Declaration of Conformity - CE | 1SCC301010D0201 |
| UL Certificate | cULus certificate OT30-125 |
| VDE Certificate | No certification needed |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5290 >> Disconnect switch |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Finland) | 3601457 |
