> ABB > Manual Switches > OT > 104902

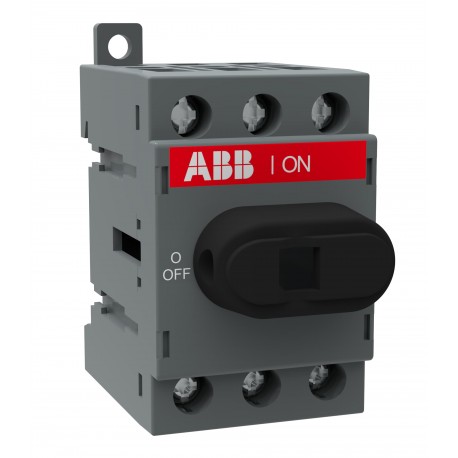

ABB 1SCA104902R1001 1SCA104902R1001 ABB OT40F3 switch-disconnector View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SCA104902R1001 ABB OT40F3 switch-disconnector

1SCA104902R1001

104902

ABB

1 Pcs.

OT40F3 switch-disconnector OT40F3 disconnect switch OT40F3 SWITCH-DISCONNECTOR

Connectors > Switch disconnector
OT

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
Environmental Information1SCC301262D0201
Environmental Product Declaration - EPD1SCC301278D0201
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC011021D0201
RoHS Declaration1SCC011020D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA1SCC011025D0201
Popular Downloads
Data Sheet, Technical Information1SCC301020C0201
Instructions and Manuals1SCC301052M0006
Mechanical Drawings1SCC301434F0001
1SCC301433F0001
OT16-40F3.stp
OT16-40F3.igs
Environmental Product Declaration - EPD1SCC301278D0201
Environmental
Degree of ProtectionFront IP20
Environmental Information1SCC301262D0201
Pollution Degree3
Ordering
Minimum Order Quantity10 piece
Customs Tariff Number85365080
Country or Territory of OriginFinland
Dimensions
Product Net Width35 mm
Product Net Height68 mm
Product Net Depth / Length56 mm
Product Net Weight0.09 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width67 mm
Package Level 1 Depth / Length79 mm
Package Level 1 Height46 mm
Package Level 1 Gross Weight0.1 kg
Package Level 1 EAN6417019390451
Technical
Cable Cross-SectionCu 0.75 ... 10 mm²
Connecting Capacity Main CircuitFlexible with Ferrule 1x Cu 0.75…4 mm²
Solid 1x Cu 0.75…6 mm²
Flexible 1x Cu 0.75…10 mm²
Stranded 1x Cu 0.75…10 mm²
Conventional Free-air Thermal Current (Ith)Θ = 40 °C 40 A
Conventional Thermal Current (Ithe)Fully Enclosed 40 A
Degree of ProtectionFront IP20
Distance Between PhasesStandard
Handle TypeKnob
Handle and shaft not included
Mechanical Durability20000
Mounting TypeBase mounting
Number of Poles3P
Operating ModeFront
Pollution Degree3
Position of Line TerminalsTop In - Bottom Out
Bottom In - Top Out
Power Lossat Rated Operating Conditions per Pole 1.6 W
Rated Conditional Short-Circuit Current (Inc)(40 A fuse, ≤415V) 50 kA
(25 A fuse, 690 V) 50 kA
Rated Impulse Withstand Voltage (Uimp)8 kV
Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 750 V
Rated Operational Current AC-21A (Ie)(380 ... 415 V) 40 A
(500 V) 40 A
(690 V) 40 A
Rated Operational Current AC-22A (Ie)(380 ... 415 V) 40 A
(500 V) 40 A
(690 V) 40 A
Rated Operational Current AC-23A (Ie)(380 ... 415 V) 23 A
(500 V) 23 A
(690 V) 12 A
Rated Operational Power AC-23A (Pe)(220 ... 240 V) 5.5 kW
(400 ... 415 V) 11 kW
(500 V) 11 kW
(690 V) 11 kW
Rated Operational VoltageMain Circuit 750 V
Rated Short-Circuit Making Capacity (Icm)(690 V) 0.71 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 0.5 kA
Recommended Screw DriverMain Circuit Pozidriv 2
Special FunctionsNo
StandardsIEC 60947-3 / UL 508 / CSA C22.2 No. 14
Switches Operating MechanismMechanism on Top of the Switch
Terminal TypeScrew Terminals
Tightening Torqueacc. IEC 60947-1 0.8 N·m
Wire Stripping LengthMain Circuit 9-10 mm
Technical UL/CSA
Maximum Operating Voltage UL/CSA600 V
Ampere Rating40 A
Horsepower Rating UL/CSA(110 ... 120 V AC) Single Phase 2 Hp
(240 V AC) Single Phase 5 Hp
(440 ... 480 V AC) Single Phase 10 Hp
(550 ... 600 V AC) Single Phase 15 Hp
(220 ... 240 V AC) Three Phase 10 Hp
(440 ... 480 V AC) Three Phase 20 Hp
(550 ... 600 V AC) Three Phase 25 Hp
Wire Stripping LengthMain Circuit 9-10 mm
Recommended Screw DriverMain Circuit Pozidriv 2
Tightening Torqueacc. IEC 60947-1 0.8 N·m
Tightening Torque UL/CSA7 in·lb
Certificates and Declarations
A2L Certificate – IEC1SCC301335D0201
ATEX CertificateNo certification needed
Declaration of Conformity - CE1SCC301166D2703
UL CertificatecULus certificate OT16-80
VDE CertificateNo certification needed
External Classifications and Standards
Object Classification CodeQ
ETIM 9EC000216 - Switch disconnector (low voltage)
ETIM 10EC000216 - Switch disconnector (AC)
UNSPSC39122233
IDEA Granular Category Code (IGCC)5290 >> Disconnect switch
eClassV11.1 : 27371403
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland)3601438
E-Number (Norway)4363524
E-Number (Sweden)3170939
