ABB 1SCA022747R6490 1SCA022747R6490 ABB OT400U03 Non-fusible disconnect switch View larger
Images are for illustrative purposes only. Please refer to data sheet for details

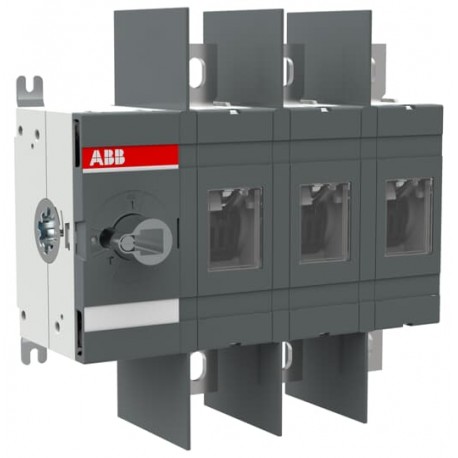

1SCA022747R6490 ABB OT400U03 Non-fusible disconnect switch

1SCA022747R6490

022747

ABB

1 Pcs.

OT400U03 Non-fusible disconnect switch Disconnect switch OT400U03 OT400U03 SWITCH-DISCONNECTOR

Connectors > Switch disconnector
OT

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

ABB OT400U03 Non-fusible disconnect switch provides reliable manual circuit interruption for industrial power distribution networks. Non-fusible disconnectors are typically integrated into electrical switchboards to disconnect downstream loads safely during maintenance outages. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • End Of Life Disassembling Instructions: 1SCC301118M0201
  • Environmental Information: 1SCC301266D0201
  • Environmental Product Declaration - EPD: 1SCC301283D0201
  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • REACH Declaration: 1SCC011021D0201
  • RoHS Declaration: 1SCC011020D0201
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Toxic Substances Control Act - TSCA: 1SCC011025D0201
  • Data Sheet, Technical Information: 1SCC301020C0201
  • Instructions and Manuals: 1SCC301035M0019
  • Mechanical Drawings: 1SCC301262F0002
  • Environmental Product Declaration - EPD: 1SCC301283D0201
  • Degree of Protection: Front IP00
  • Environmental Information: 1SCC301266D0201
  • Pollution Degree: 3
  • Minimum Order Quantity: 1 piece

More info

▲
ABB EcoSolutions
End Of Life Disassembling Instructions1SCC301118M0201
Environmental Information1SCC301266D0201
Environmental Product Declaration - EPD1SCC301283D0201
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC011021D0201
RoHS Declaration1SCC011020D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA1SCC011025D0201
Popular Downloads
Data Sheet, Technical Information1SCC301020C0201
Instructions and Manuals1SCC301035M0019
Mechanical Drawings1SCC301262F0002
1SCC301261F0002
Environmental Product Declaration - EPD1SCC301283D0201
Environmental
Degree of ProtectionFront IP00
Environmental Information1SCC301266D0201
Pollution Degree3
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85365080
Country or Territory of OriginFinland
Dimensions
Product Net Width221 mm
Product Net Height220 mm
Product Net Depth / Length105 mm
Product Net Weight3 kg
6.7 lb
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width250 mm
9.8 in
Package Level 1 Depth / Length290 mm
11.4 in
Package Level 1 Height170 mm
6.7 in
Package Level 1 Gross Weight3.3 kg
7.3 lb
Package Level 1 EAN6417019242613
Technical
Conventional Thermal Current (Ithe)Fully Enclosed 400 A
Degree of ProtectionFront IP00
Distance Between PhasesStandard
Handle TypeHandle and shaft not included
Mechanical Durability16000
Mounting TypeBase mounting
Number of Poles3P
Operating ModeFront
Pollution Degree3
Position of Line TerminalsTop In - Bottom Out
Bottom In - Top Out
Power Lossat Rated Operating Conditions per Pole 10 W
Rated Impulse Withstand Voltage (Uimp)12 kV
Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 1000 V
Rated Operational Current AC-22A (Ie)(380 ... 415 V) 400 A
(500 V) 400 A
(690 V) 400 A
Rated Operational Current AC-23A (Ie)(380 ... 415 V) 400 A
(500 V) 400 A
(690 V) 400 A
Rated Operational Power AC-23A (Pe)(380 ... 415 V) 220 kW
(500 V) 280 kW
(690 V) 400 kW
Rated Operational VoltageMain Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm)(690 V) 65 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 15 kA
Special FunctionsNo
StandardsIEC 60947-3 / UL 98 / CSA C22.2 NO.4
Switches Operating MechanismMechanism at the End of the Switch
03 (Left Side)
Terminal TypeLug terminals
Tightening Torqueacc. IEC 60947-1 42.4 N·m
Technical UL/CSA
Maximum Operating Voltage UL/CSA600 V
Ampere Rating400 A
Horsepower Rating UL/CSA(acc. to UL 200 V) 100 Hp
(acc. to UL 208 V) 100 Hp
(acc. to UL 240 V) 125 Hp
(acc. to UL 480 V) 250 Hp
(acc. to UL 600 V) 350 Hp
Tightening Torqueacc. IEC 60947-1 42.4 N·m
Tightening Torque UL/CSA375 in·lb
Certificates and Declarations
ATEX CertificateNo certification needed
Declaration of Conformity - CE1SCC301135D2704
UL CertificatecULus certificate OT200-400
VDE CertificateNo certification needed
External Classifications and Standards
Object Classification CodeQ
ETIM 9EC000216 - Switch disconnector (low voltage)
ETIM 10EC000216 - Switch disconnector (AC)
UNSPSC39122233
IDEA Granular Category Code (IGCC)5290 >> Disconnect switch
eClassV11.1 : 27371403
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland)3601719

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
