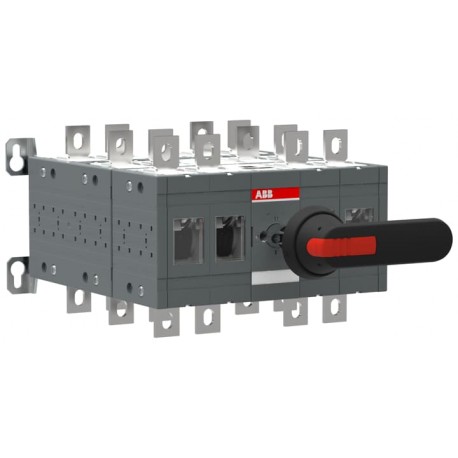

1SCA123587R1001 ABB OT400E22YP BY-PASS SWITCH
1SCA123587R1001
123587
ABB
1 Pcs.
OT400E22YP BY-PASS SWITCH
Manual Bypass Switch OT400E22YP
Connectors > Switch disconnector
Manual Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Circular Value | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Information | 1SCC011020D0201 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country of Origin | Finland (FI) |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC303003C0201 |
| Instructions and Manuals | 1SCC301080M0003 |
| Dimensions | |
| Product Net Width | 284 mm |
| Product Net Height | 185 mm |
| Product Net Depth / Length | 306 mm |
| Product Net Weight | 13.6 kg |
| 29.98 lb | |
| Technical | |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 400 A |
| (500 V) 400 A | |
| (690 V) 400 A | |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 400 A |
| (500 V) 400 A | |
| (690 V) 400 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 400 A |
| (500 V) 400 A | |
| (690 V) 400 A | |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 220 kW |
| (500 V) 280 kW | |
| (690 V) 400 kW | |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 400 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 400 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 1000 V |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 15 kiloampere rms |
| Power Loss | 10 W |
| Pollution Degree | 3 |
| Handle Color | Black |
| Handle Type | Handle and shaft included |
| Switches Operating Mechanism | Mechanism Between the Poles |
| 22 (Between the Poles) | |
| Distance Between Phases | Standard |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Number of Poles | 4 |
| Degree of Protection | Front IP20 |
| Transition Type | Open |
| Environmental | |
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SCC301195D0202 |
| REACH Declaration | 1SCC011021D0201 |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 265 mm |
| 10.43 in | |
| Package Level 1 Depth / Length | 375 mm |
| 14.76 in | |
| Package Level 1 Height | 330 mm |
| 12.99 in | |
| Package Level 1 Gross Weight | 14.02 kg |
| 30.91 lb | |
| Package Level 1 EAN | 6417019543710 |
| Classifications | |
| Object Classification Code | Q |
| ETIM 7 | EC000216 - Switch disconnector |
| ETIM 8 | EC000216 - Switch disconnector |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as maintenance-/service switch (EF006986) | Yes |
| Version as safety switch (EF006985) | No |
| Version as emergency stop installation (EF006959) | No |
| Version as reversing switch (EF009408) | No |
| Number of switches (EF005586) | 1 |
| Max. rated operation voltage Ue AC (EF007355) | 1000 V |
| Rated operating voltage (EF001435) | 1000 V |
| Rated permanent current at AC-23, 400 V (EF011777) | 400 A |
| Rated permanent current at AC-21, 400 V (EF009165) | 400 A |
| Rated short-time withstand current lcw (EF007050) | 15 kA |
| Rated operation power at AC-23, 400 V (EF007027) | 220 kW |
| Switching power at 400 V (EF009166) | 220 kW |
| Number of poles (EF001391) | 4 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Motor drive optional (EF007386) | No |
| Motor drive integrated (EF006697) | No |
| Voltage release optional (EF007491) | No |
| Device construction (EF008240) | Built-in device plug-in technique |
| Suitable for front mounting 4-hole (EF007247) | Yes |
| Suitable for front mounting centre (EF007248) | No |
| Suitable for distribution board installation (EF007262) | Yes |
| Suitable for intermediate mounting (EF007264) | No |
| Colour control element (EF007167) | Black |
| Type of control element (EF006976) | Long turning handle |
| Interlockable (EF006281) | Yes |
| Type of electrical connection of main circuit (EF006819) | Other |
| Degree of protection (IP), front side (EF003118) | IP20 |
| Degree of protection (NEMA) (EF011959) | 1 |
